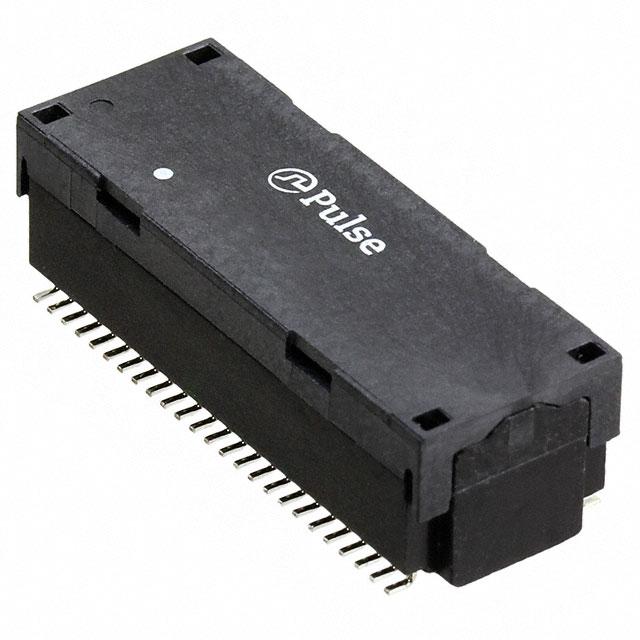

Pulse Electronics HX5020FNL

HX5020FNL Pulse Electronics
Pulse Electronics

Product Information

HTSUS:
8504.31.2000
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 85°C
Height - Seated (Max):
0.340" (8.64mm)
title:
HX5020FNL
REACH Status:
REACH Unaffected
edacadModel:
HX5020FNL Models
Inductance:
350µH
edacadModelUrl:
/en/models/4291877
Manufacturer:
Pulse Electronics
ET (Volt-Time):
-
Size / Dimension:
1.100" L x 0.395" W (27.94mm x 10.03mm)
Turns Ratio - Primary:Secondary:
1CT:1CT Transmitter, 1CT:1CT Receiver
standardLeadTime:
15 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Transformer Type:
LAN 10/100/1000 Base-T
Mounting Type:
Surface Mount
Weight:
-
Series:
-
Packaging:
Tube
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is HX5020FNL. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs compliant. The product has -40°c ~ 85°c operating temperature range. It has the maximum seated height of 0.340" (8.64mm). In addition, it is reach unaffected. The product has a 350µh inductance value. The pulse electronics's product offers user-desired applications. The product's diameters include 1.100" l x 0.395" w (27.94mm x 10.03mm). The typical primary and secondary turn ratio is 1ct:1ct transmitter, 1ct:1ct receiver. It has a long 15 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). It is a lan 10/100/1000 base-t transformer. The product is available in surface mount configuration. In addition, tube is the available packaging type of the product. The product is designated with the ear99 code number.
