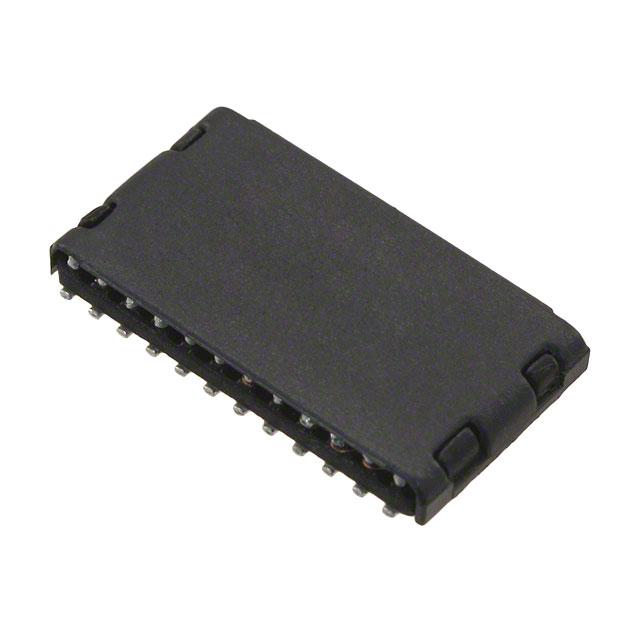

Pulse Electronics H5120NL

H5120NL Pulse Electronics
Pulse Electronics

Product Information

HTSUS:
8504.31.2000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
0°C ~ 70°C
edacadModel:
H5120NL Models
Height - Seated (Max):
0.082" (2.08mm)
REACH Status:
REACH Unaffected
Inductance:
-
edacadModelUrl:
/en/models/1616672
Package:
Tube
ET (Volt-Time):
-
Size / Dimension:
0.650" L x 0.365" W (16.51mm x 9.27mm)
Transformer Type:
-
Turns Ratio - Primary:Secondary:
1CT:1CT
standardLeadTime:
7 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Weight:
-
Series:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is H5120NL. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs3 compliant. The product has 0°c ~ 70°c operating temperature range. It has the maximum seated height of 0.082" (2.08mm). In addition, it is reach unaffected. It is shipped in tube package . The product's diameters include 0.650" l x 0.365" w (16.51mm x 9.27mm). The typical primary and secondary turn ratio is 1ct:1ct. It has a long 7 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product is designated with the ear99 code number.

pdf icon
Pulse RoHS(UNKNOWN TYPE)
pdf icon
Pulse Larson REACH(Environmental Information)
pdf icon
Mult Devs Location 08/Jul/2021(PCN Assembly/Origin)
pdf icon
H5120NL Drawing(Product Drawings)
