Maximum Pulse Delay:
999.99999996 (Double Pulse) s, 999.99999998 (Pulse) s
Jitter:
<30%
Modes:
Burst, Double Pulse, Function/Arbitrary, Modulation, Noise, Pattern/PBRS, Pulse, Square, Sweep, Triggered
Weight:
3.2kg
Minimum Frequency:
1 mHz
Minimum Pulse Delay:
0ns
Maximum Pulse Width:
499.99999999 (Double Pulse) s, 999.99999999 (Pulse) s
Model Number p:
TGP3152
Maximum Frequency:
25 (Double Pulse) MHz, 50 (Pulse) MHz
Height:
86.5 (Rack Mount) mm, 97 (Bench Top Mount) mm
Width:
213.5 (Rack Mount) mm, 250 (Bench Top Mount) mm
Length:
269 (Rack Mount) mm, 295 (Bench Top Mount) mm

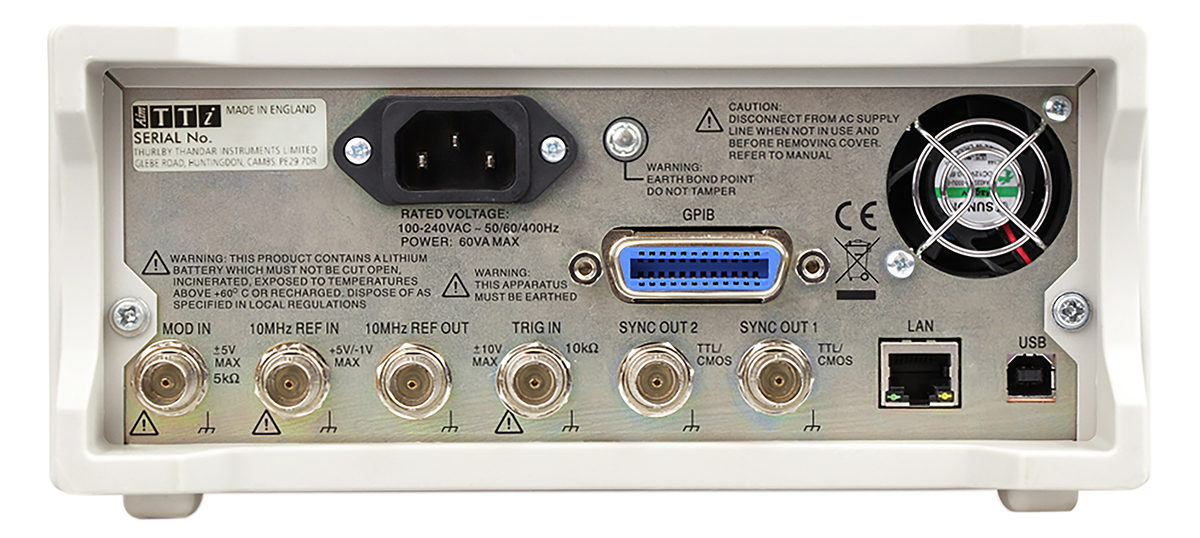

Interface Type:
GPIB, LAN, LXI, Remote, USB 2.0, USB Flash Drive
Minimum Operating Temperature:
+5°C
Minimum Pulse Width:
10ns
Rise - Fall Time:
5 ns → 399.999999989 s (Double Pulse), 5 ns → 799.999999989 s (Pulse)
Input Impedance:
10 kΩ
Adjustable Output Amplitude:
Yes
Maximum Operating Temperature:
+40°C
Dimensions:
269 x 213.5 x 86.5 (Rack Mount) mm, 295 x 250 x 97 (Bench Top Mount) mm

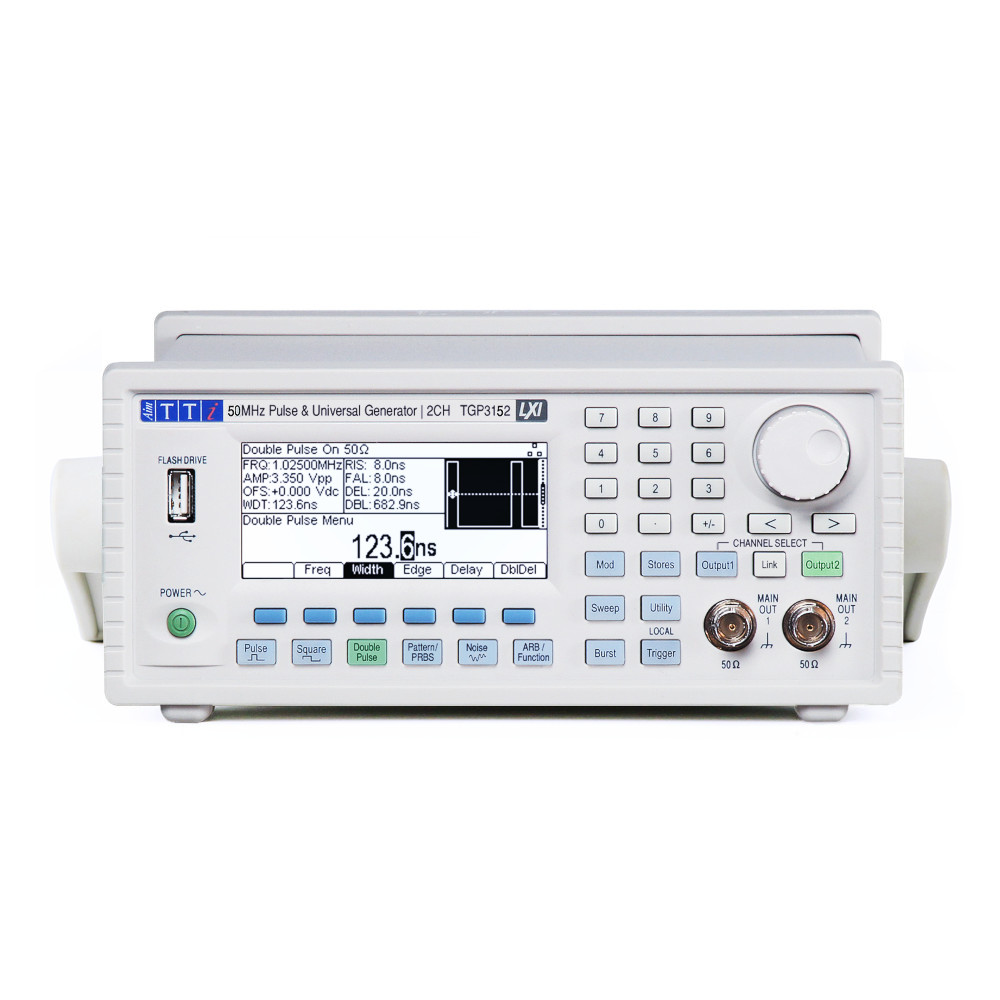

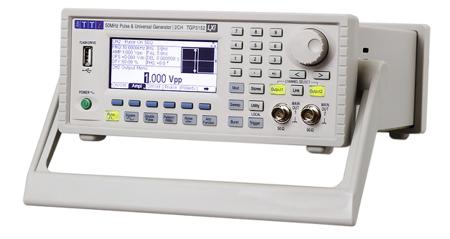

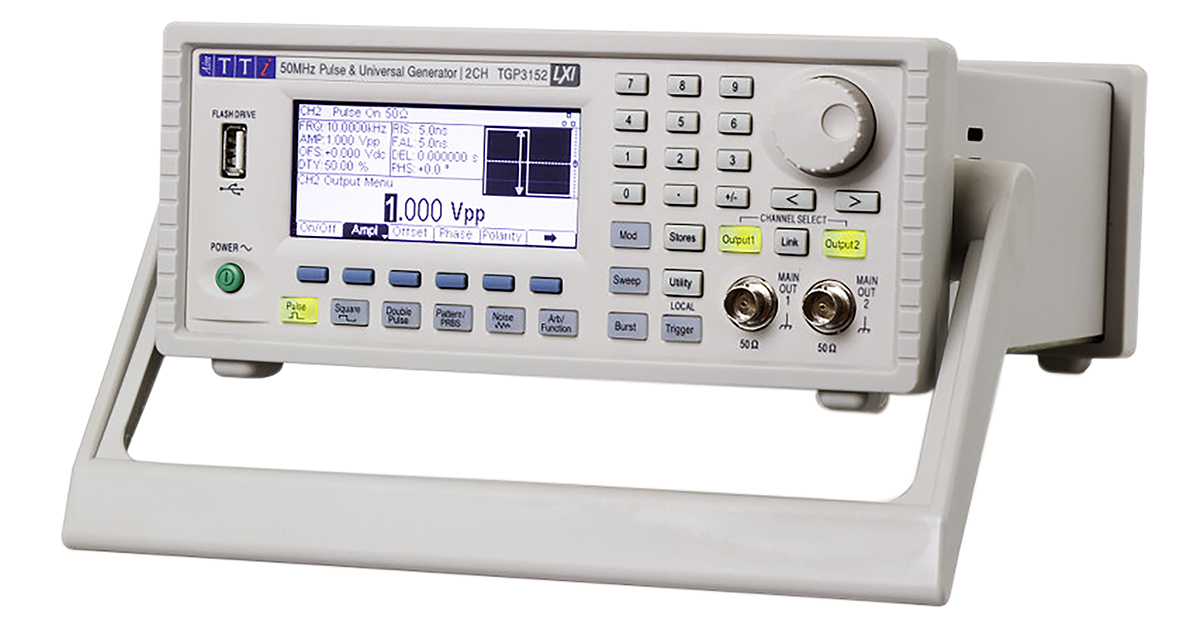

This is Pulse Generator 1 mHz → 25 MHz (Double Pulse) 1 mHz → 50 MHz (Pulse) manufactured by Aim-TTi. The manufacturer part number is TGP3152. 999.99999996 (double pulse) s, 999.99999998 (pulse) s is the maximum pulse delay . It has a Jitter of <30% . It has a/an burst, double pulse, function/arbitrary, modulation, noise, pattern/pbrs, pulse, square, sweep, triggered mode . The typical product's weight is 3.2kg. It has a minimum 1 mhz frequency . Additionally, the product has a minimum pulse delay of 0ns . Additionally, it has 499.99999999 (double pulse) s, 999.99999999 (pulse) s of maximum pulse width . While it has tgp3152 of model number. It features 25 (double pulse) mhz, 50 (pulse) mhz of maximum frequency. In addition, the height is 86.5 (rack mount) mm, 97 (bench top mount) mm. Furthermore, the product is 213.5 (rack mount) mm, 250 (bench top mount) mm wide. Its accurate length is 269 (rack mount) mm, 295 (bench top mount) mm. It is a type of gpib, lan, lxi, remote, usb 2.0, usb flash drive interface. Whereas, the minimum operating temperature of the product is +5°c. It has a minimum 10ns pulse width . It has about 5 ns → 399.999999989 s (double pulse), 5 ns → 799.999999989 s (pulse) rise - fall time . Furthermore, its input impedance equals 10 kω. In addition, the product has an Adjustable Output Amplitude Included yes . It has a maximum operating temperature of +40°c. The given dimensions of the product include 269 x 213.5 x 86.5 (rack mount) mm, 295 x 250 x 97 (bench top mount) mm.
