325412000-00, Absolute Pressure Sensor, 12bar 0 → 150 mV Output, 8-Pin

Enrgtech Part No: ET13970950
|
Manufacturer Part No:
325412000-00
|
Manufacturer: TE Connectivity

325412000-00 , Absolute Pressure Sensor, 12bar 0 → 150 mV Output, 8-Pin

Product Information

Sensor Type:

Absolute Pressure Sensors

Mounting Type:

Surface Mount

Minimum Operating Pressure:

0bar

Maximum Operating Temperature:

+125 °C

Minimum Operating Temperature:

-40 °C

Maximum Operating Pressure:

12bar

Maximum Output Voltage:

180 V

Minimum Output Voltage:

120 V

Maximum Operating Supply Voltage:

20 V

Typical Sensitivity:

12.5mV/kPa

Maximum Overload Pressure:

30bar

Pin Count:

Checking for live stock

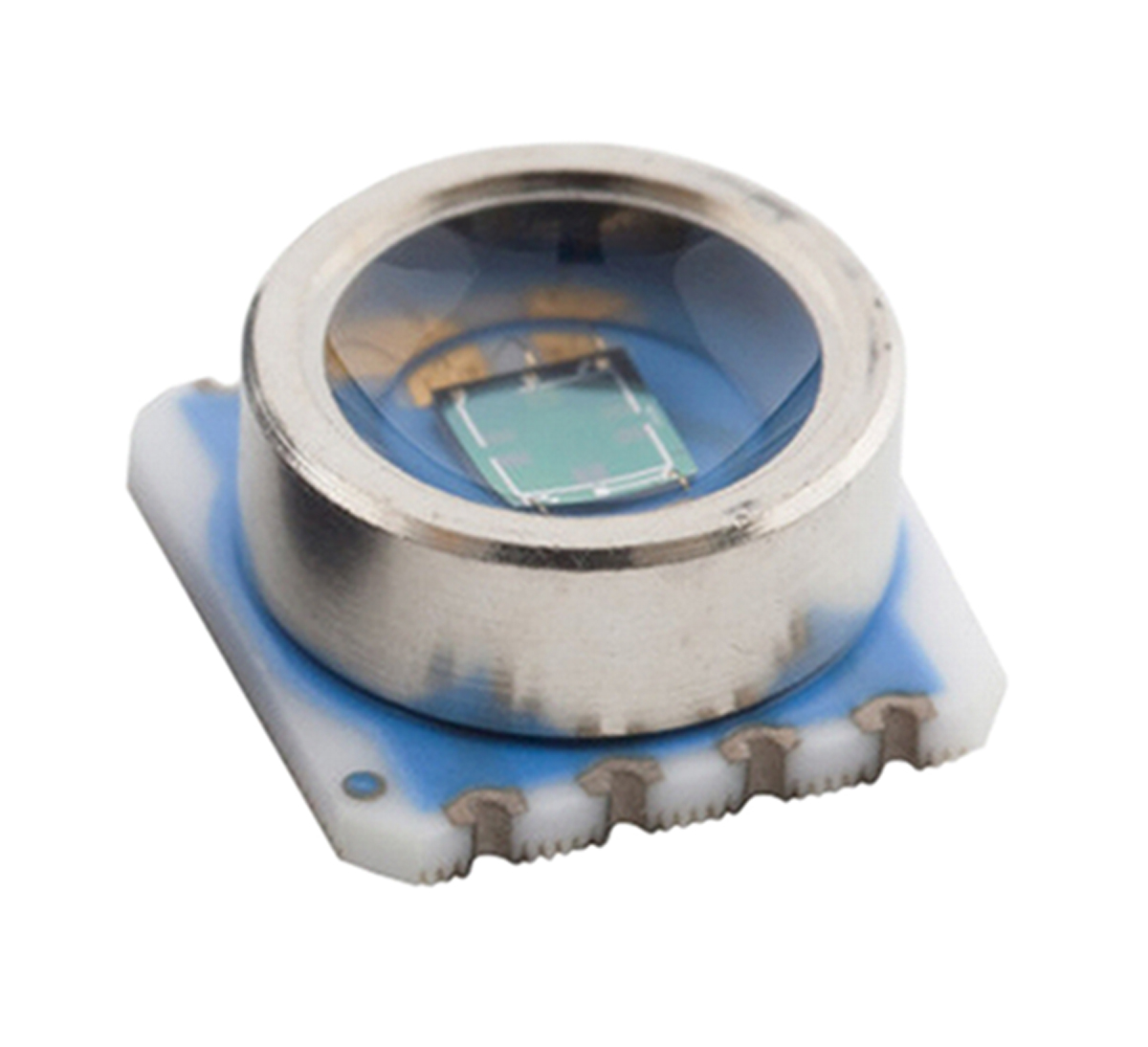

The 325412000-00 Absolute Pressure Sensor from TE Connectivity is a miniaturised, high-precision semiconductor component for measuring absolute pressure up to 12 bar. Packaged in a compact 8-pin surface-mount housing, this sensor is built for integration into dense electronic circuits, offering a fundamental 0 to 150 mV output for interfacing with conditioning circuitry. It is engineered for resilience, supporting a maximum overload pressure of 30 bar and capable of reliable operation across a wide thermal range, spanning from -40°C to +125°C. This robustness makes it ideal for highly sensitive and thermally exposed applications.

Benefits of Using the Absolute Pressure Sensor (325412000-00)

The 325412000-00 pressure sensor provides highly accurate absolute pressure data critical for sophisticated control systems. Its small surface-mount footprint is crucial for space-constrained PCB designs. Furthermore, the extensive operating temperature range from -40°C to +125°C ensures performance stability and measurement integrity in thermally demanding environments, thereby maximising overall system reliability.

Standout Features & Key Uses of the Absolute Pressure Sensor

Absolute Pressure Type: Measures pressure relative to a perfect vacuum reference.
Surface Mount Technology (SMT): Designed for efficient high-volume assembly onto circuit boards.
High Overload Capacity (30 bar): Provides enhanced protection against pressure spikes.
Broad Temperature Range: Operates reliably from -40°C to +125°C.
Key Use: Integration into automotive diagnostics, high-precision industrial monitors, and advanced medical devices.

MS54XX Miniature SMD Pressure Sensor Datasheet(Technical Reference)
