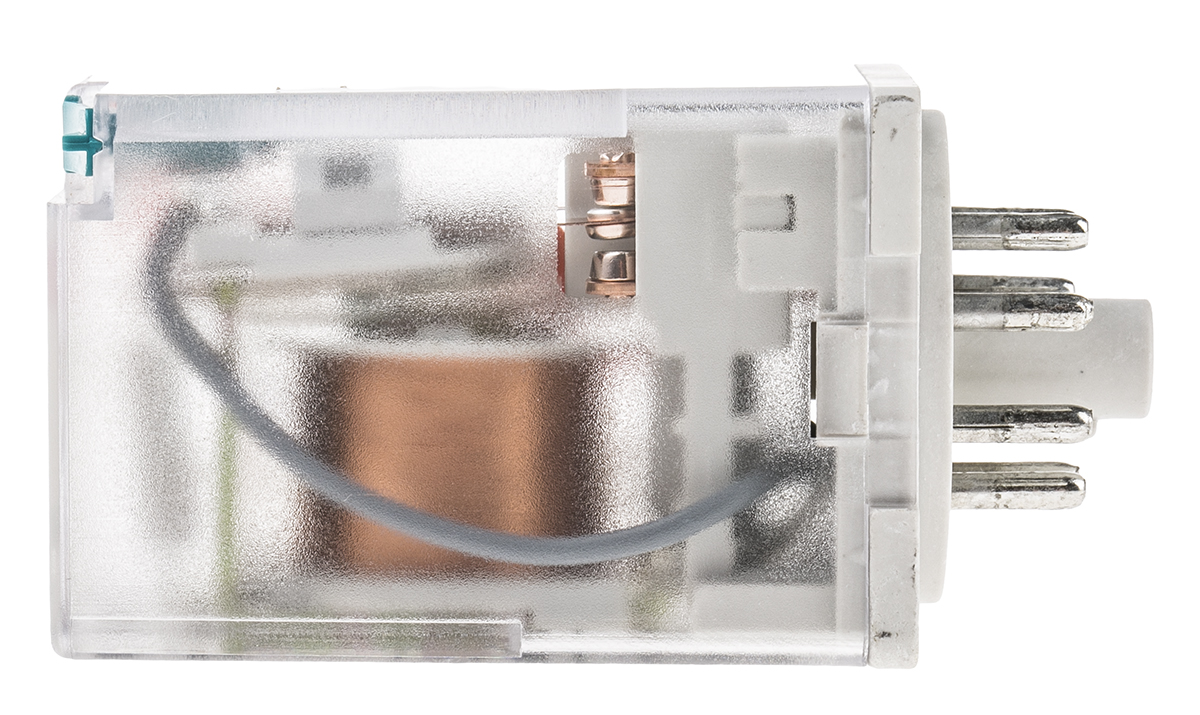

Relpol DPDT Non-Latching Relay Plug In, 24V dc Coil, 10 A

R15-2012-23-1024-WTL Relpol DPDT Non-Latching Relay Plug In, 24V dc Coil, 10 A
R15-2012-23-1024-WTL
R15-2012-23-1024-WTL
Relpol

Product Information

Coil Voltage:
24V dc
Application:
General Purpose
Terminal Type:
Plug In
Coil Resistance:
430Ω
Life:
200000 (Electrical) cycles, 20000000 (Mechanical) cycles
Coil Power:
1.5W
Maximum Switching Voltage DC:
24V dc
Isolation Coil To Contact:
2.5kV ac
Maximum Operating Temperature:
+70°C
Switching Current:
10A
Latching:
No
Contact Configuration:
DPDT
Depth:
54.4mm
Mounting Type:
Plug In
Series:
R15
Length:
35mm
Height:
35mm
Maximum Switching Voltage AC:
440V
Minimum Operating Temperature:
-40°C
Number of Poles:
2
Contact Material:
Silver Alloy
RoHs Compliant
Checking for live stock

This is DPDT Non-Latching Relay Plug In 24V dc Coil 10 A manufactured by Relpol. The manufacturer part number is R15-2012-23-1024-WTL. The coil voltage of the product is 24v dc. Applications Information involves general purpose. The terminal is a plug in type. It holds up to 430ω coil resistance. It is capable of doing 200000 (electrical) cycles, 20000000 (mechanical) cycles in a lifetime . Robust coil power of 1.5w. While it carries 24v dc of maximum DC switching voltage. The product has 2.5kv ac isolation coil to contact. It has a maximum operating temperature of +70°c. It is integrated with 10a switching current. Latching Options - no. The contact is equipped with dpdt configuration. The product comes in 54.4mm depth. The product is available in plug in configuration. The product r15, is a highly preferred choice for users. Its accurate length is 35mm. In addition, the height is 35mm. It has a maximum AC switching voltage of 440v. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 2 poles. The product is made from sturdy silver alloy materials.
