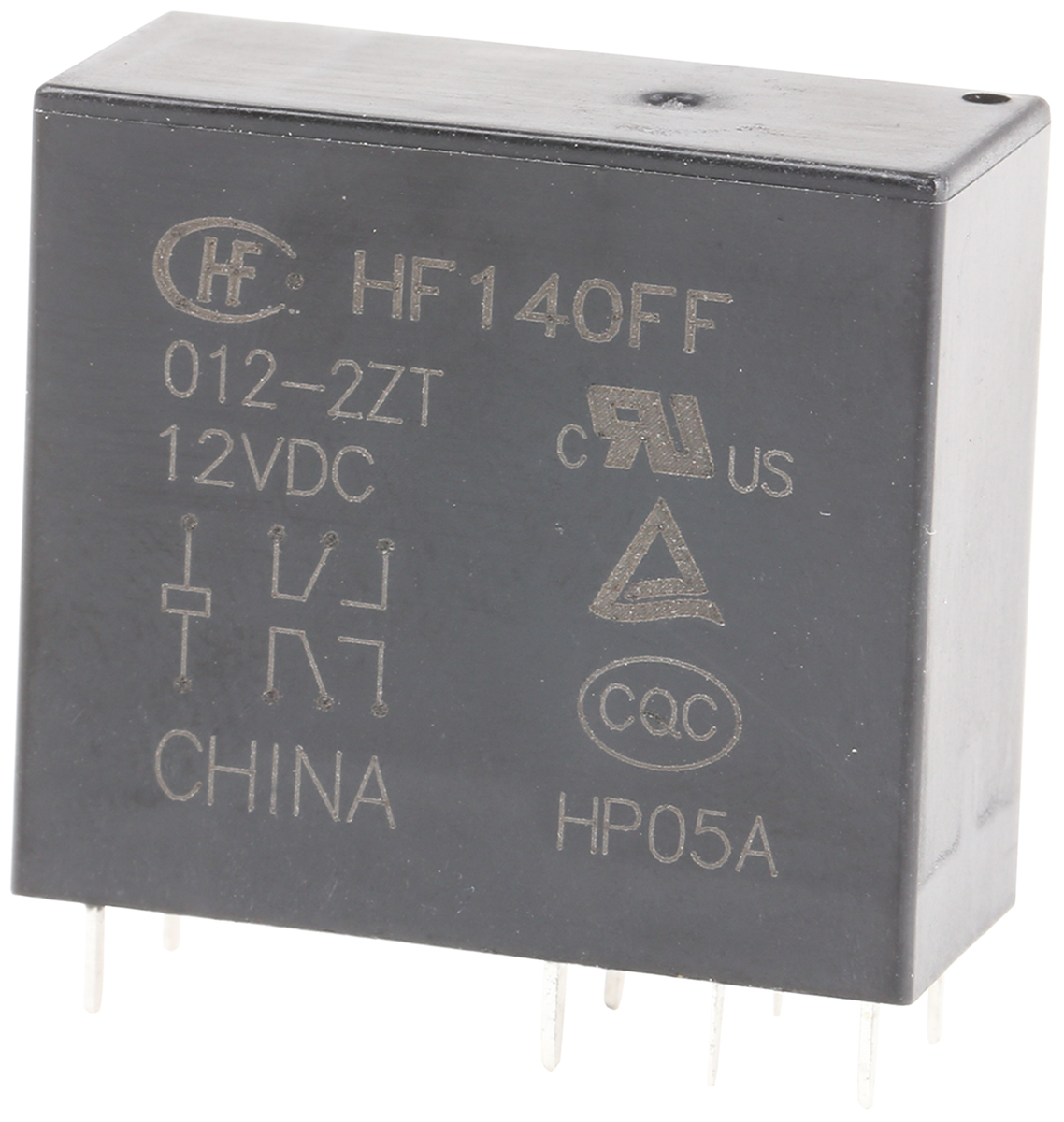

This is DPDT Non-Latching Relay PCB Mount 12V Coil 10 A Miniature Power Relay manufactured by RS Pro. The manufacturer part number is 800-4489. The coil voltage of the product is 12v dc. Applications Information involves power. The terminal is a through hole type. It holds up to 275ω coil resistance. It is capable of doing 100000 (electrical) operations, 100000000 (mechanical) operations in a lifetime . The product complies with all safety standards, such as cqc, culus, rohs compliant. Robust coil power of 530mw. While it carries 30v dc of maximum DC switching voltage. It bears a maximum 240 w of DC switching power. The product has 5kv ac isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 10a switching current. Latching Options - no. The contact is equipped with dpdt configuration. The product comes in 13mm depth. The product is available in pcb mount configuration. Its accurate length is 29mm. In addition, the height is 26.3mm. It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 2.5 kva. It has equipped with 2 poles. The product is made from sturdy silver alloy materials.
For more information please check the datasheets.
