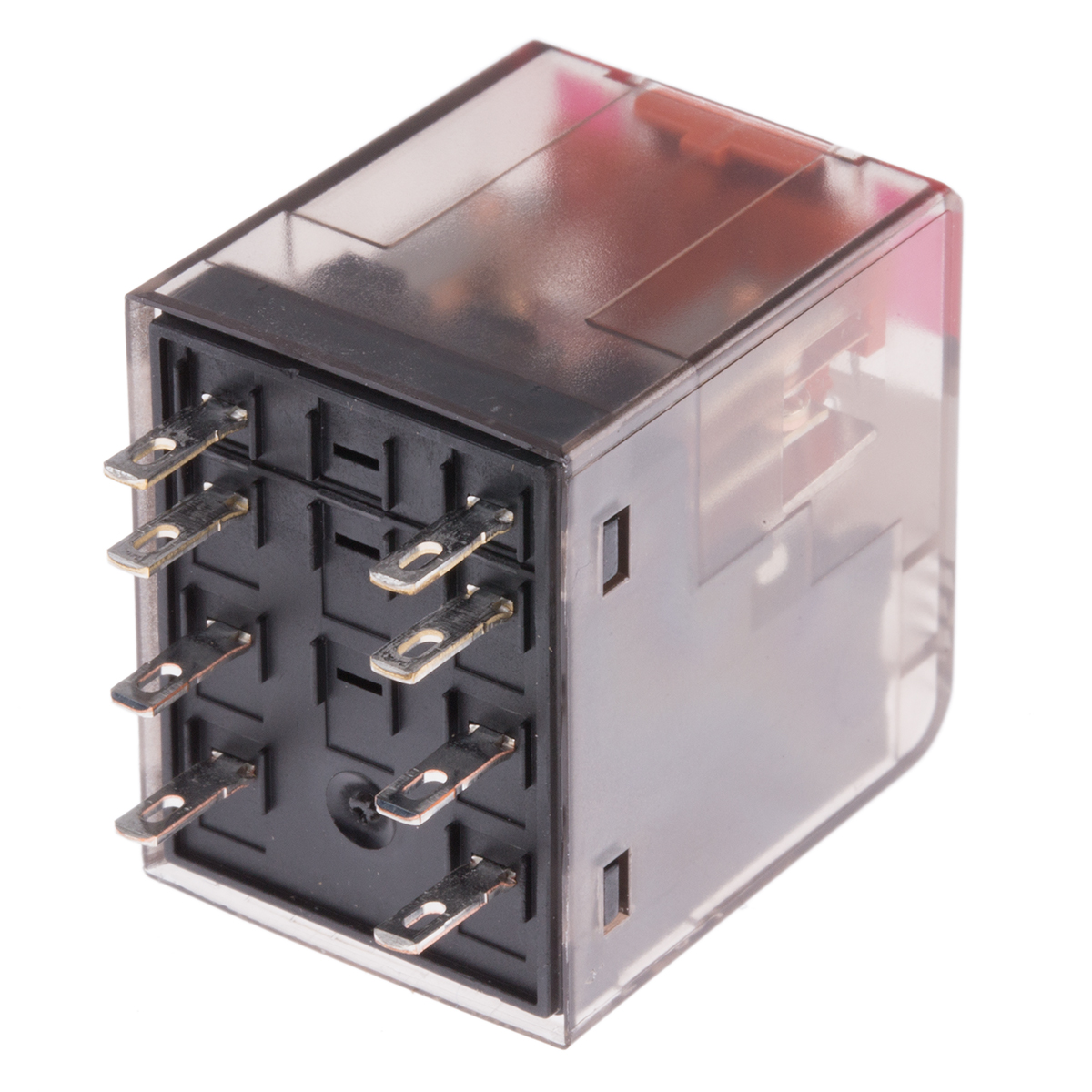

TE Connectivity DPDT PCB Mount Non-Latching Relay, 24V ac Coil, 12 A

PT270R24-1415002-1 TE Connectivity DPDT PCB Mount Non-Latching Relay, 24V ac Coil, 12 A
PT270R24 1415002-1
TE Connectivity

Product Information

Maximum Operating Temperature:
+70°C
Mounting Type:
PCB Mount
Coil Power:
1W
Series:
PT
Latching:
No
Coil Voltage:
24V ac
Length:
28mm
Height:
35mm
Switching Current:
12A
Application:
Compact
Depth:
22.5mm
Maximum Switching Voltage AC:
400V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
3 kVA
Contact Configuration:
DPDT
Isolation Coil To Contact:
2.5kV
Contact Material:
Silver Nickel Alloy
Number of Poles:
2
Terminal Type:
Quick Connect
Coil Resistance:
192Ω
RoHs Compliant
Checking for live stock

This is DPDT PCB Mount Non-Latching Relay 24V ac Coil 12 A manufactured by TE Connectivity. The manufacturer part number is PT270R24 1415002-1. It has a maximum operating temperature of +70°c. The product is available in pcb mount configuration. Robust coil power of 1w. The product pt, is a highly preferred choice for users. Latching Options - no. The coil voltage of the product is 24v ac. Its accurate length is 28mm. In addition, the height is 35mm. It is integrated with 12a switching current. Applications Information involves compact. The product comes in 22.5mm depth. It has a maximum AC switching voltage of 400v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 3 kva. The contact is equipped with dpdt configuration. The product has 2.5kv isolation coil to contact. The product is made from sturdy silver nickel alloy materials. It has equipped with 2 poles. The terminal is a quick connect type. It holds up to 192ω coil resistance.

pdf icon
Miniature Relay PT Series Data Sheet(Technical Reference)
pdf icon
Tyco Shortform Relays Catalogue(Technical Reference)
