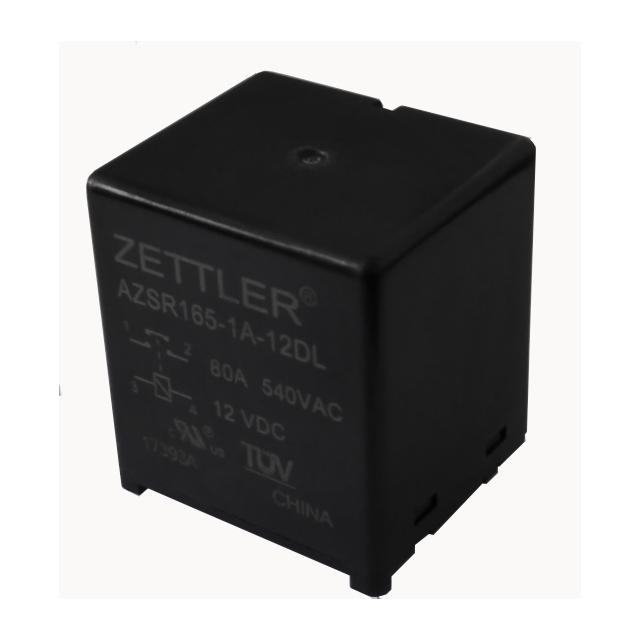

American Zettler AZSR165-1A-12DL

AZSR165-1A-12DL American Zettler
American Zettler

Product Information

Must Release Voltage:
0.6 VDC
HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
12VDC
Termination Style:
PC Pin
REACH Status:
REACH Unaffected
Operating Temperature:
-40°C ~ 85°C
Approval Agency:
TUV, UL
Coil Resistance:
65 Ohms
Coil Current:
184.6 mA
Coil Type:
Non Latching
title:
AZSR165-1A-12DL
Seal Rating:
-
Must Operate Voltage:
9 VDC
Relay Type:
EV Charging, Solar
Load - Max Switching:
55200VA
Contact Form:
SPST-NO (1 Form A)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
40 ms
Qualification:
-
standardLeadTime:
13 Weeks
Contact Rating (Current):
80 A
Features:
-
Mounting Type:
Through Hole
Grade:
-
Series:
AZSR165
Switching Voltage:
690VAC - Max
Release Time:
20 ms
Packaging:
Tube
Coil Insulation:
Class F
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
AZSR165
ECCN:
EAR99
Checking for live stock

This is manufactured by American Zettler. The manufacturer part number is AZSR165-1A-12DL. While the must release voltage is a 0.6 vdc. It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 12vdc. Moreover, it has pc pin terminal style. In addition, it is reach unaffected. The product has -40°c ~ 85°c operating temperature range. It is approved by tuv, ul. It holds up to 65 ohms coil resistance. It has a coil current of 184.6 ma. The coil is a non latching type. On the other hand, 9 vdc is the given crucial/must operating voltage. This is basically a ev charging, solar. It also has a spst-no (1 form a) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 40 ms. It has a long 13 weeks standard lead time. It has a contact current rating of 80 a. The product is available in through hole configuration. The product azsr165, is a highly preferred choice for users. The product's switching voltage is 690vac - max. While 20 ms is its release time. In addition, tube is the available packaging type of the product. The coil is a class f insulation. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to azsr165, a base product number of the product. The product is designated with the ear99 code number.
