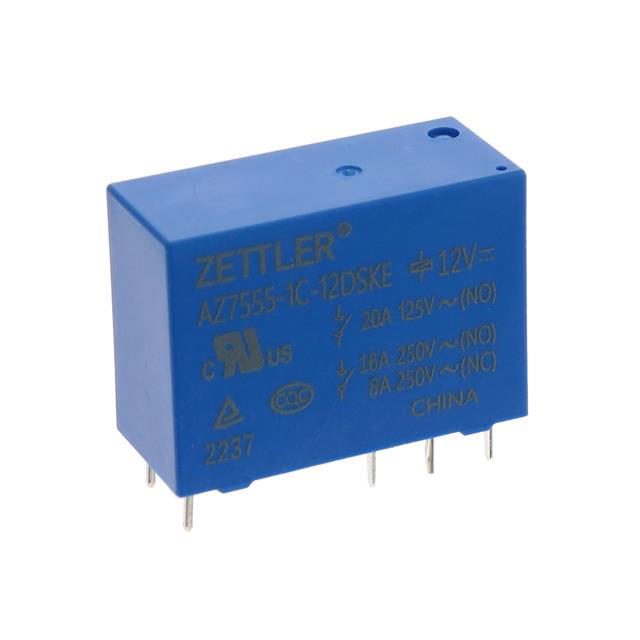

American Zettler AZ7555-1C-12DSKE
Product Information
Must Release Voltage:
1.2 VDC
HTSUS:
8536.41.0050
Coil Voltage:
12VDC
Termination Style:
PC Pin
Operating Temperature:
-40°C ~ 85°C
Approval Agency:
CUR, TUV, UL
Coil Resistance:
270 Ohms
Coil Current:
44.4 mA
Coil Type:
Non Latching
Switching Voltage:
277VAC, 30VDC - Max
Load - Max Switching:
5000VA, 480W
Seal Rating:
Sealed - Fully
edacadModel:
AZ7555-1C-12DSKE Models
edacadModelUrl:
/en/models/14307639
Must Operate Voltage:
9 VDC
Relay Type:
General Purpose
Package:
Tray
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
20 ms
Qualification:
-
Contact Rating (Current):
12 A
Features:
-
Mounting Type:
Through Hole
Grade:
-
Series:
AZ7555
Release Time:
8 ms
Coil Insulation:
-
Contact Material:
Silver Tin Oxide (AgSnO)
Base Product Number:
AZ7555-1C
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search AZ7555-1C-12DSKE on website for other similar products.
We accept all major payment methods for all products including ET21206569. Please check your shopping cart at the time of order.
You can order American Zettler brand products with AZ7555-1C-12DSKE directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of American Zettler AZ7555-1C-12DSKE. You can also check on our website or by contacting our customer support team for further order details on American Zettler AZ7555-1C-12DSKE.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21206569 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "American Zettler" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21206569.
Yes. We ship AZ7555-1C-12DSKE Internationally to many countries around the world.
This is manufactured by American Zettler. The manufacturer part number is AZ7555-1C-12DSKE. While the must release voltage is a 1.2 vdc. It is assigned with possible HTSUS value of 8536.41.0050. The coil voltage of the product is 12vdc. Moreover, it has pc pin terminal style. The product has -40°c ~ 85°c operating temperature range. It is approved by cur, tuv, ul. It holds up to 270 ohms coil resistance. It has a coil current of 44.4 ma. The coil is a non latching type. The product's switching voltage is 277vac, 30vdc - max. Seal rating options: sealed - fully. On the other hand, 9 vdc is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in tray package . It also has a spdt (1 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 20 ms. It has a contact current rating of 12 a. The product is available in through hole configuration. The product az7555, is a highly preferred choice for users. While 8 ms is its release time. The product is made from sturdy silver tin oxide (agsno) materials. Moreover, it corresponds to az7555-1c, a base product number of the product. The product is designated with the ear99 code number.
