Coil Voltage:
12V dc
Application:
Power
Terminal Type:
Plug In
Coil Resistance:
160Ω
Life:
20000000 (Mechanical) cycles
Coil Power:
36mW
Maximum Switching Voltage DC:
250V dc
Maximum Switching Power DC:
288 W
Maximum Operating Temperature:
+70°C
Switching Current:
12A
Minimum Operating Temperature:
-40°C
Latching:
No
Contact Configuration:
DPDT
Depth:
27.5mm
Mounting Type:
PCB Mount
Series:
REL-IR
Length:
21.2mm
Height:
35.6mm
Maximum Switching Voltage AC:
250V ac
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=7943787&DisplayLogo=False
Maximum Switching Power AC:
3 kVA
Number of Poles:
2
Contact Material:
Silver Alloy
Must Release Voltage:
-
HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
12VDC
Termination Style:
Plug In
REACH Status:
REACH Unaffected
Operating Temperature:
-40°C ~ 70°C
Approval Agency:
cULus, EAC, UL, VDE
Coil Resistance:
154 Ohms
Coil Current:
78 mA
Coil Type:
Non Latching
title:

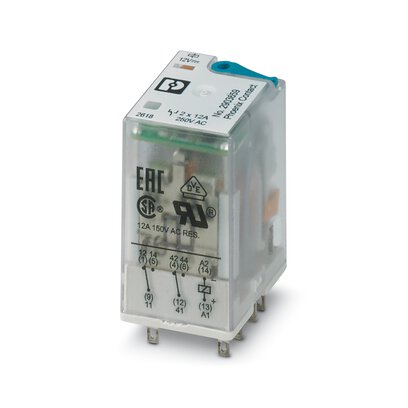

2903659
Seal Rating:
-
edacadModel:
2903659 Models
edacadModelUrl:
/en/models/5199655
Must Operate Voltage:
-
Relay Type:
General Purpose
Load - Max Switching:
-
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
13 ms
Qualification:
-
standardLeadTime:
4 Weeks
Contact Rating (Current):
12 A
Features:
Diode, Lighted Indicator, Mechanical Indicator, Test Button
Mounting Type:
Socketable
Grade:
-
Series:
REL-IR
Switching Voltage:
250VAC, 250VDC - Max
Release Time:
14 ms
Packaging:
-
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
29036
ECCN:
EAR99
