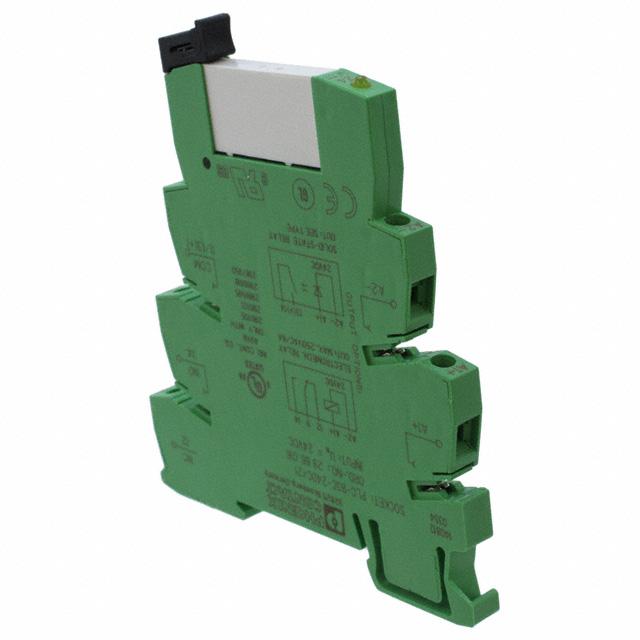

Phoenix Contact 5603154
Product Information
Maximum Operating Temperature:
+60°C
Dimensions:
80 x 6.2 x 94mm
Mounting Type:
DIN Rail
Operating Temperature Range:
-25 → +60°C
Series:
VARIOFACE
Switching Current:
1 A
Contact Configuration:
SPDT
Length:
80mm
Height:
94mm
Depth:
6.2mm
Relay Switching Classification:
Interface Relay Module
Input Current:
9mA
Minimum Operating Temperature:
-25°C
Turn On Time:
5ms
Turn Off Time:
8ms
Contact Material:
Silver Alloy
Number of Poles:
1
Terminal Type:
Plug In, Screw
Standards Met:
EN 50178, IEC 60664, IEC 62103
HTSUS:
8536.41.0020
RoHS Status:
RoHS Compliant
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
Operating Temperature:
-25°C ~ 60°C
Coil Current:
9 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
5 ms
Must Release Voltage:
-
Contact Rating (Current):
6 A
Features:
Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Series:
PLC-RSC
Release Time:
8 ms
Coil Insulation:
-
ECCN:
EAR99
Base Product Number:
56031
Contact Material:
Silver Tin Oxide (AgSnO)
Checking for live stock
FAQs
Yes. You can also search 5603154 on website for other similar products.
We accept all major payment methods for all products including ET11904613. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 5603154 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 5603154. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 5603154.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11904613 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11904613.
Yes. We ship 5603154 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 5603154. It has a maximum operating temperature of +60°c. The given dimensions of the product include 80 x 6.2 x 94mm. The product is available in din rail configuration. The product has -25 → +60°c of operating temperature range. The product varioface, is a highly preferred choice for users. It is integrated with 1 a switching current. The contact is equipped with spdt configuration. Its accurate length is 80mm. In addition, the height is 94mm. The product comes in 6.2mm depth. It has a interface relay module switching relay configuration . It has about 9ma input current . Whereas, the minimum operating temperature of the product is -25°c. It has a 5ms turn On time. The given turn off time is 8ms. The product is made from sturdy silver alloy materials. It has equipped with 1 poles. The terminal is a plug in, screw type. The product complies with all safety standards, such as en 50178, iec 60664, iec 62103. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs compliant. The coil voltage of the product is 24vdc. Moreover, it has screw terminal terminal style. The product has -25°c ~ 60°c operating temperature range. It has a coil current of 9 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a spdt (1 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 5 ms. It has a contact current rating of 6 a. The splendid features of the product include lighted indicator, socket included. The product plc-rsc, is a highly preferred choice for users. While 8 ms is its release time. The product is designated with the ear99 code number. Moreover, it corresponds to 56031, a base product number of the product. The product is made from sturdy silver tin oxide (agsno) materials.
