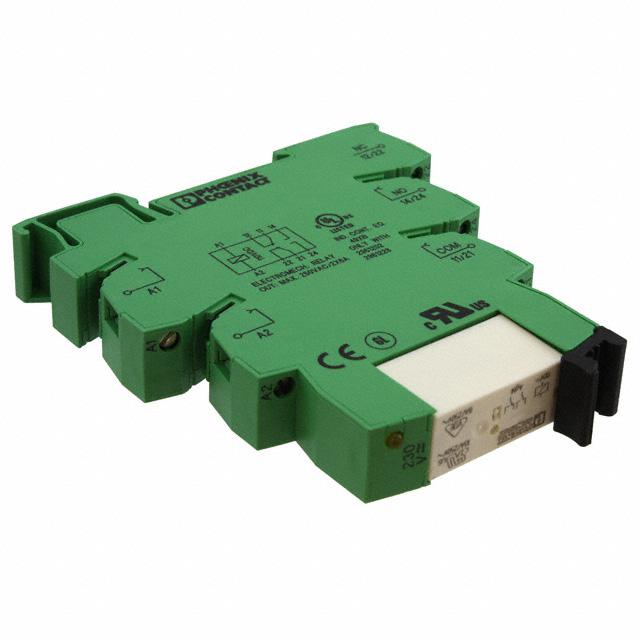

Phoenix Contact 2967099
Product Information
Dimensions:
80 x 14 x 94mm
Coil Voltage:
230V ac
Turn On Time:
7ms
Turn Off Time:
10ms
Input Current:
(dc) 4.3 mA, (ac) 4.5mA
Life:
3 x 10^7 Cycles
Switching Voltage:
250V ac/dc
Maximum Operating Temperature:
+55°C
Terminal Type:
Screw
Relay Type:
Solid State Relay
Operating Temperature Range:
-40 → +55°C
Load Voltage Rating:
250V
Contact Configuration:
DPDT
Depth:
14mm
Relay Switching Classification:
Miniature Relay
Mounting Type:
DIN Rail
Series:
PLC-RSC-230UC/21-21
Input Voltage Range:
220 V dc, 230V ac
Accessory Type:
Relay Module
Length:
80mm
Height:
94mm
Minimum Operating Temperature:
-40°C
Minimum Input Voltage:
179.4V ac
Number of Poles:
2
Maximum Input Voltage:
220 V dc, 230V ac
Contact Material:
Silver Alloy
HTSUS:
8536.49.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
230VAC/DC
Termination Style:
Screw Terminal
REACH Status:
REACH Affected
Operating Temperature:
-40°C ~ 55°C
Coil Current:
4.5 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
edacadModel:
2967099 Models
edacadModelUrl:
/en/models/349733
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
7 ms
Must Release Voltage:
-
standardLeadTime:
8 Weeks
Contact Rating (Current):
6 A
Features:
Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Series:
PLC-RSC
Release Time:
10 ms
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
29670
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2967099 on website for other similar products.
We accept all major payment methods for all products including ET11555596. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2967099 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2967099. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2967099.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11555596 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11555596.
Yes. We ship 2967099 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2967099. The given dimensions of the product include 80 x 14 x 94mm. The coil voltage of the product is 230v ac. It has a 7ms turn On time. The given turn off time is 10ms. It has about (dc) 4.3 ma, (ac) 4.5ma input current . It is capable of doing 3 x 10^7 cycles in a lifetime . The product's switching voltage is 250v ac/dc. It has a maximum operating temperature of +55°c. The terminal is a screw type. This is basically a solid state relay. The product has -40 → +55°c of operating temperature range. It has a 250v voltage load rating . The contact is equipped with dpdt configuration. The product comes in 14mm depth. It has a miniature relay switching relay configuration . The product is available in din rail configuration. The product plc-rsc-230uc/21-21, is a highly preferred choice for users. It has 220 v dc, 230v ac of input voltage range. It is a type of relay module accessory. Its accurate length is 80mm. In addition, the height is 94mm. Whereas, the minimum operating temperature of the product is -40°c. The product has 179.4v ac of minimum input voltage. It has equipped with 2 poles. 220 v dc, 230v ac is the maximum voltage of the bespoke product. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.49.0050. The product is rohs3 compliant. The coil voltage of the product is 230vac/dc. Moreover, it has screw terminal terminal style. In addition, it is reach affected. The product has -40°c ~ 55°c operating temperature range. It has a coil current of 4.5 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 7 ms. It has a long 8 weeks standard lead time. It has a contact current rating of 6 a. The splendid features of the product include lighted indicator, socket included. The product plc-rsc, is a highly preferred choice for users. While 10 ms is its release time. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to 29670, a base product number of the product. The product is designated with the ear99 code number.
