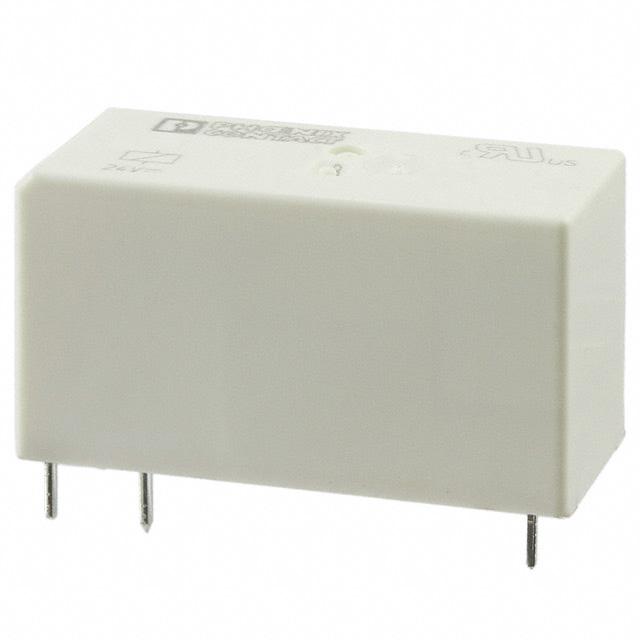

Phoenix Contact 2961341
Product Information
Maximum Switching Voltage DC:
250V dc
Maximum Operating Temperature:
+85°C
Dimensions:
29 x 12.7 x 15.7mm
Mounting Type:
PCB Mount
Series:
REL-MR- 24DC/ 1IC
Switching Current:
16A
Coil Voltage:
24V dc
Length:
29mm
Height:
15.7mm
Depth:
12.7mm
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Contact Material:
Silver Alloy
Contact Configuration:
SPST
Coil Resistance:
1.44 kΩ
Number of Poles:
1
Terminal Type:
PCB Pin
Standards Met:
cRU Listed, cUL Listed, CULus, UL Listed, VDE
HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
PC Pin
REACH Status:
REACH Unaffected
Operating Temperature:
-40°C ~ 85°C
Coil Resistance:
1.44 kOhms
Coil Current:
17 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
edacadModel:
2961341 Models
edacadModelUrl:
/en/models/2527027
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPST-NO (1 Form A)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
8 ms
Must Release Voltage:
-
standardLeadTime:
8 Weeks
Contact Rating (Current):
16 A
Features:
-
Mounting Type:
Through Hole
Series:
REL-MR
Release Time:
3 ms
Coil Insulation:
-
Contact Material:
Silver Tin Oxide (AgSnO)
Base Product Number:
29613
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2961341 on website for other similar products.
We accept all major payment methods for all products including ET11137094. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2961341 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2961341. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2961341.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11137094 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11137094.
Yes. We ship 2961341 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2961341. While it carries 250v dc of maximum DC switching voltage. It has a maximum operating temperature of +85°c. The given dimensions of the product include 29 x 12.7 x 15.7mm. The product is available in pcb mount configuration. The product rel-mr- 24dc/ 1ic, is a highly preferred choice for users. It is integrated with 16a switching current. The coil voltage of the product is 24v dc. Its accurate length is 29mm. In addition, the height is 15.7mm. The product comes in 12.7mm depth. It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy silver alloy materials. The contact is equipped with spst configuration. It holds up to 1.44 kω coil resistance. It has equipped with 1 poles. The terminal is a pcb pin type. The product complies with all safety standards, such as cru listed, cul listed, culus, ul listed, vde. It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has pc pin terminal style. In addition, it is reach unaffected. The product has -40°c ~ 85°c operating temperature range. It holds up to 1.44 kohms coil resistance. It has a coil current of 17 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a spst-no (1 form a) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 8 ms. It has a long 8 weeks standard lead time. It has a contact current rating of 16 a. The product is available in through hole configuration. The product rel-mr, is a highly preferred choice for users. While 3 ms is its release time. The product is made from sturdy silver tin oxide (agsno) materials. Moreover, it corresponds to 29613, a base product number of the product. The product is designated with the ear99 code number.
