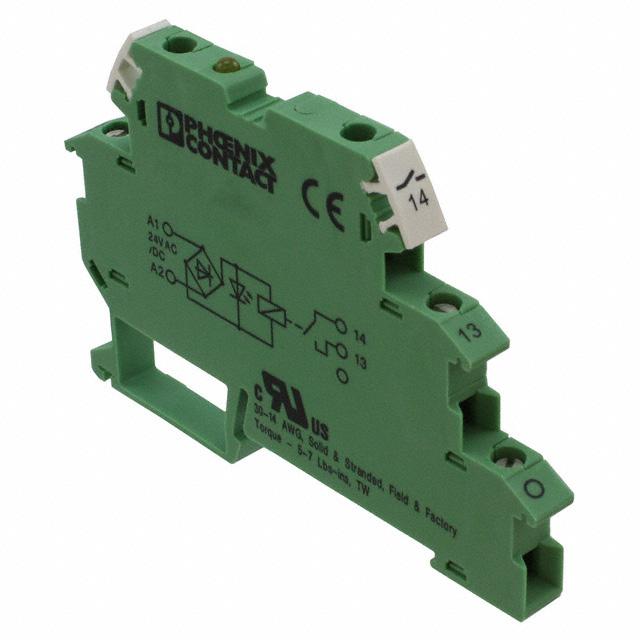

Phoenix Contact 2964063
Product Information
Maximum Operating Temperature:
+50°C
Dimensions:
6.2 x 56 x 80mm
Mounting Type:
Chassis Mount
Switching Voltage:
250V ac/dc
Series:
DEK-REL- 24/1/AKT
Coil Voltage:
24V ac/dc
Length:
6.2mm
Height:
80mm
Depth:
56mm
Maximum Input Voltage:
24V ac/dc
Input Current:
6.5mA
Minimum Operating Temperature:
-20°C
Turn On Time:
5ms
Turn Off Time:
15ms
Operating Temperature Range:
-20 → +50°C
Contact Configuration:
SPST
Number of Poles:
1
Terminal Type:
Screw
Contact Material:
Silver Alloy
HTSUS:
8536.41.0020
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VAC/DC
Termination Style:
Screw Terminal
REACH Status:
REACH Affected
Operating Temperature:
-20°C ~ 50°C
Coil Current:
6.5 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
edacadModel:
2964063 Models
edacadModelUrl:
/en/models/349694
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPST-NO (1 Form A)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
5 ms
Must Release Voltage:
-
standardLeadTime:
4 Weeks
Contact Rating (Current):
3 A
Features:
-
Mounting Type:
DIN Rail
Series:
-
Release Time:
15 ms
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
29640
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2964063 on website for other similar products.
We accept all major payment methods for all products including ET10904558. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2964063 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays, Over 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2964063. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2964063.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10904558 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10904558.
Yes. We ship 2964063 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2964063. It has a maximum operating temperature of +50°c. The given dimensions of the product include 6.2 x 56 x 80mm. The product is available in chassis mount configuration. The product's switching voltage is 250v ac/dc. The product dek-rel- 24/1/akt, is a highly preferred choice for users. The coil voltage of the product is 24v ac/dc. Its accurate length is 6.2mm. In addition, the height is 80mm. The product comes in 56mm depth. 24v ac/dc is the maximum voltage of the bespoke product. It has about 6.5ma input current . Whereas, the minimum operating temperature of the product is -20°c. It has a 5ms turn On time. The given turn off time is 15ms. The product has -20 → +50°c of operating temperature range. The contact is equipped with spst configuration. It has equipped with 1 poles. The terminal is a screw type. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs3 compliant. The coil voltage of the product is 24vac/dc. Moreover, it has screw terminal terminal style. In addition, it is reach affected. The product has -20°c ~ 50°c operating temperature range. It has a coil current of 6.5 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a spst-no (1 form a) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 5 ms. It has a long 4 weeks standard lead time. It has a contact current rating of 3 a. The product is available in din rail configuration. While 15 ms is its release time. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to 29640, a base product number of the product. The product is designated with the ear99 code number.
