Microchip 4 Channel DC Power Monitor Evaluation Board Energy Metering, Power Monitoring for PAC1934 Evaluation Board

Enrgtech Part No: ET16765507
|
Manufacturer Part No:
ADM00805
|
Manufacturer: Microchip

ADM00805 Microchip 4 Channel DC Power Monitor Evaluation Board Energy Metering, Power Monitoring for PAC1934 Evaluation Board

Product Information

Power Management Function:

Energy Metering, Power Monitoring

Kit Name:

4 Channel DC Power Monitor Evaluation Board

Featured Device:

PAC1934

Kit Classification:

Evaluation Board

For Use With:

USB or I2C Direct Connection

Checking for live stock

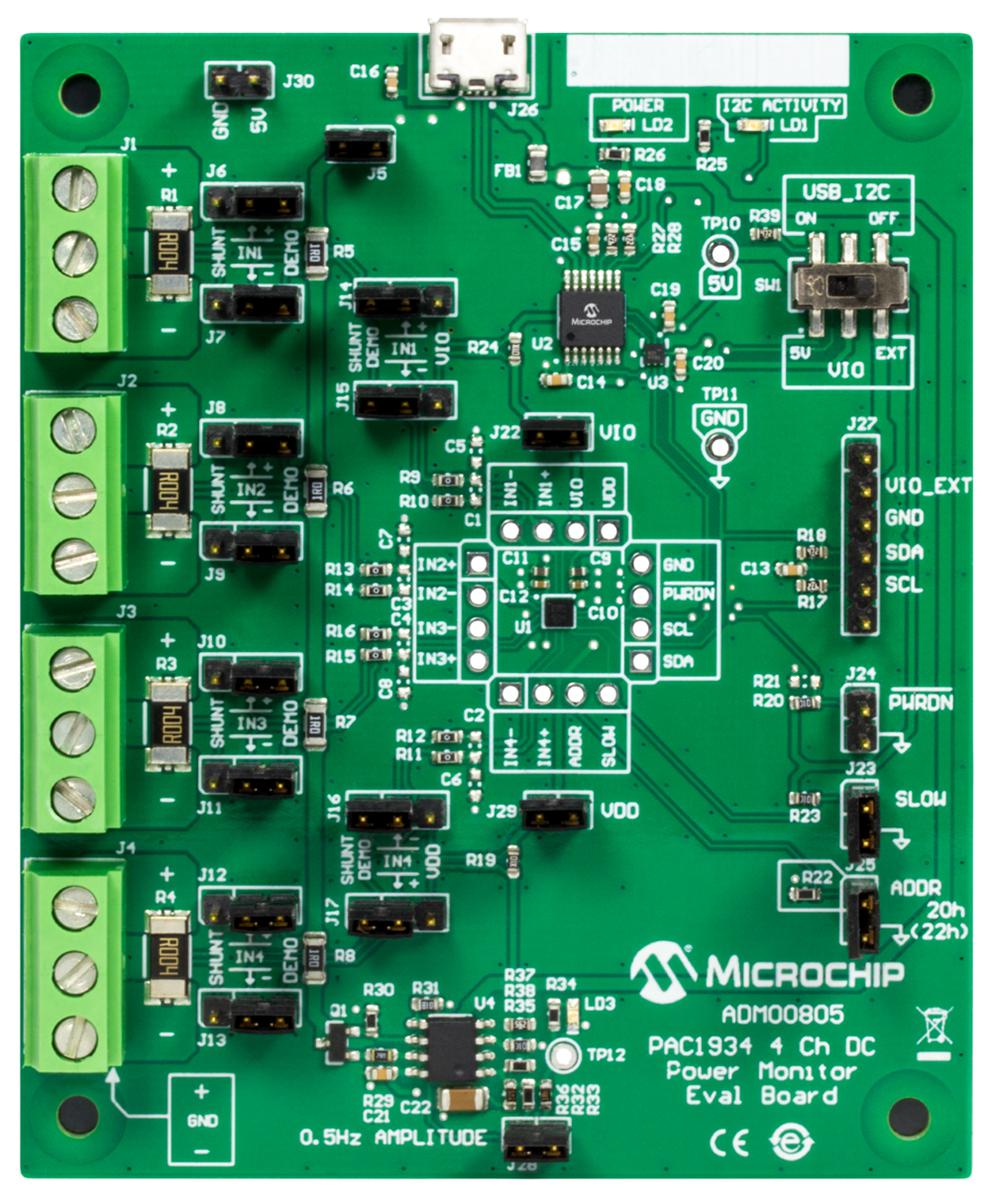

The Microchip ADM00805 evaluation board is a high-precision development platform designed to demonstrate the PAC1934 four-channel DC power monitor. This versatile tool allows engineers to measure voltage and current across multiple rails simultaneously, providing real-time power consumption data via a user-friendly graphical interface. Equipped with onboard sense resistors and USB connectivity, it simplifies the integration and testing of power-sensing applications, ensuring optimal energy efficiency in complex electronic designs.

What Makes Our Product Stand Out?

The Microchip ADM00805 evaluation board offers seamless quad-channel monitoring with built-in digital signal processing for accurate power calculations. The plug-and-play USB interface enables instant data visualisation.

High-precision bidirectional current sensing across four channels.
Integrated power accumulator for long-term energy tracking.

Core Performance Features

Input Channels: 4-Channel bidirectional current sensing.
Bus Voltage Range: 0V to 32V.
Interface: I2C/SMBus and micro-USB.
Current Sensing: Onboard precision sense resistors included.
Resolution: 16-bit voltage and current measurement.

Suitable Environments

Battery-powered device prototyping and optimisation labs.
Server and networking equipment power management testing.
Embedded systems development for IoT and robotics.
Industrial automation monitoring and energy auditing.
