STMicroelectronics SATEL-VL53L7CX, Evaluation Board

Enrgtech Part No: ET23546917
|
Manufacturer Part No:
SATEL-VL53L7CX
|
Manufacturer: STMicroelectronics

SATEL-VL53L7CX STMicroelectronics , Evaluation Board

Product Information

Kit Name:

SATEL-VL53L7CX

Sensor Technology:

Evaluation Board

Featured Device:

VL53L7CX

Kit Classification:

Breakout Board

For Use With:

VL53L7CX

HTSUS:

8543.70.9860

RoHS Status:

ROHS3 Compliant

Sensing Range:

Sensor Type:

Light, 3D Time-of-Flight (ToF)

REACH Status:

REACH Unaffected

Interface:

I2C

Embedded:

Checking for live stock

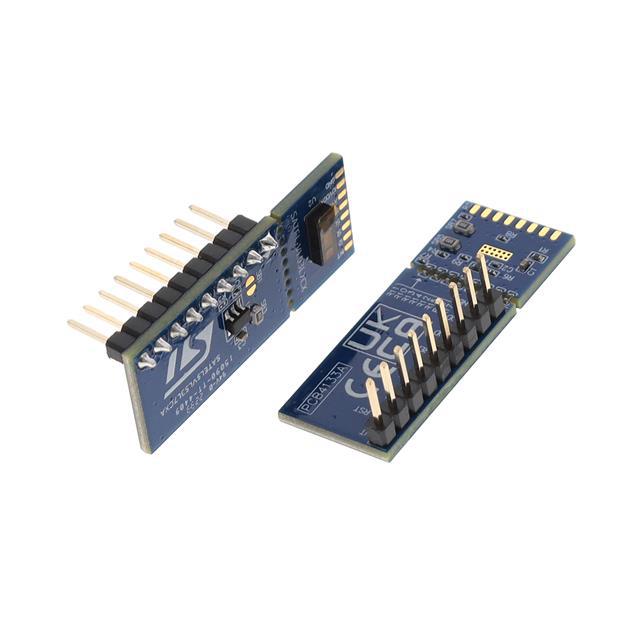

The STMicroelectronics SATEL‑VL53L7CX is a breakout board integrating the VL53L7CX 8×8 multizone Time‑of‑Flight (ToF) ranging sensor with a 90° diagonal field‑of‑view (FoV). This evaluation board delivers accurate distance measurement and multizone detection in a compact form, ideal for prototyping next‑generation proximity, gesture recognition, and mobile sensing applications. The board includes two perforated mini‑PCBs that can be snapped off for direct integration at a 3.3 V supply, supporting I²C interface and offering plug‑in compatibility with the X‑NUCLEO‑53L7A1 expansion board.

Core Capabilities of the STMicroelectronics Breakout Board

8×8 multizone ToF ranging sensor with 90° diagonal FoV.
Dual‑board package allows breakout and mini‑PCB integration via perforation.
3.3 V I²C supply and output interface for easy system integration.
Compatible with the X‑NUCLEO‑53L7A1 board, which accelerates evaluation.
Compact perimeter with flying‑wire connection option for embedded designs.
Designed to integrate into consumer, wearable, and industrial sensing systems.

Engineered for Flexible Sensor Evaluation and Integration

This versatile board is engineered for developers needing a ready‑to‑use multizone ranging solution with minimal setup. Its rapid prototyping of ToF applications offers reliable ranging data, multizone detection, and straightforward I²C programming. With field‑tested ST FlightSense technology, the VL53L7CX module ensures consistent performance across varying target reflectance, independent of lighting conditions.

Typical Uses of this Evaluation Board

Embedded proximity detection and approach sensing in mobile or wearable devices.
Gesture‑based user interfaces and presence detection in consumer electronics.
Multizone spatial awareness in robotics, drones, or automated guided vehicles (AGVs).
Industrial safety zones and collision‑avoidance systems using wide‑angle ToF detection.
Integration into smart home, AR/VR platforms or IoT devices requiring small‑form‑factor distance sensors.

Datasheet - SATEL-VL53L7CX(Technical Reference)

NOTICE – This product is not for general use by consumers(Technical Reference)

SATEL-VL53L7CX Data Brief(Product Brief)
