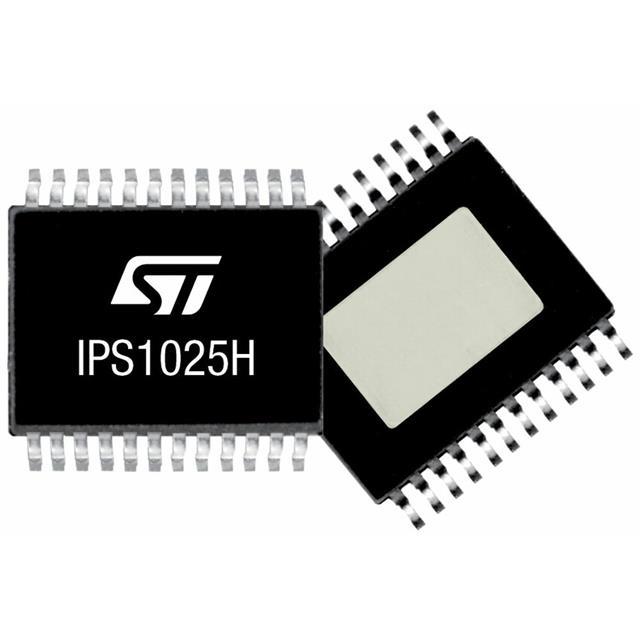

STMicroelectronics IPS1025HFTR

IPS1025HFTR STMicroelectronics
IPS1025HFTR
STMicroelectronics

Product Information

Number of Outputs:
16
Maximum Operating Supply Voltage:
60 V
Maximum Operating Current:
2.55mA
Number of Channels:
1
Power Switch Topology:
High Side
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
PowerSSO-24
Ratio - Input:Output:
1:1
Operating Temperature:
-40°C ~ 150°C
Current - Output (Max):
-
Input Type:
Non-Inverting
Package / Case:
24-PowerBSOP (0.295", 7.50mm Width)
Voltage - Supply (Vcc/Vdd):
8.65V ~ 60V
REACH Status:
REACH Unaffected
Output Type:
N-Channel
edacadModel:
IPS1025HFTR Models
edacadModelUrl:
/en/models/16624830
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Interface:
On/Off
standardLeadTime:
30 Weeks
Features:
-
Mounting Type:
Surface Mount
Series:
-
Voltage - Load:
-
Fault Protection:
Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit, UVLO
Base Product Number:
IPS1025
Rds On (Typ):
12mOhm
Output Configuration:
High Side
ECCN:
EAR99
Number of Outputs:
1
Switch Type:
General Purpose
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is IPS1025HFTR. Additionally, the product is supplied with 16 outputs. It has 60 v maximum operating supply voltage. Moreover, the product needs a maximum 2.55ma operating current . It is supplied with 1 channels. It has a high side power switch topology . It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. powersso-24 is the supplier device package value. The ratio between its input and output is 1:1. The product has -40°c ~ 150°c operating temperature range. It carries non-inverting input type. Moreover, the product comes in 24-powerbsop (0.295", 7.50mm width). The supply voltage of a bespoke product includes 8.65v ~ 60v. In addition, it is reach unaffected. Furthermore, it has an-channel output. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). A bespoke product is on/off interface. It has a long 30 weeks standard lead time. The product is available in surface mount configuration. Fault protection features include current limiting (fixed), over temperature, over voltage, short circuit, uvlo. Moreover, it corresponds to ips1025, a base product number of the product. The typical Rds On of the product is 12mohm. It boasts high side output configuration. The product is designated with the ear99 code number. Additionally, the product is supplied with 1 outputs. Quality product with a general purpose switch type.

pdf icon
Datasheet - IPS1025HFTR(Technical Reference)
pdf icon
Mult Dev 07/Feb/2023(PCN Assembly/Origin)
pdf icon
IPS1025HF, IPS1025HFQ(Datasheets)
