Actual Diameter:
0.098" (2.50mm ID), 0.252" (6.40mm OD)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Thread Size:
-
Operating Temperature:
-20°C ~ 70°C
Industry Recognized Mating Diameter:
2.55mm ID (0.100"), 5.50mm OD (0.217")
Internal Switch(s):
Single Switch, Normally Closed
Shielding:
Unshielded
Voltage - Rated:
20VDC
Insulation Color:
-
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
DCJ250-05-A-K1-A Models
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9859609
Package:
Tape & Reel (TR)
Gender:
Male
Connector Type:
Jack
Moisture Sensitivity Level (MSL):
Not Applicable
Body Material:
-
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
5 A
Housing Material:
Polyamide (PA9T), Nylon 9T
Body Color:
Black
Ingress Protection:
-
Features:
Board Guide, Solder Retention
Mounting Type:
Surface Mount, Right Angle
Mating Length/Depth:
-
Series:
DCJ250-05
Contact Material - Plating:
Silver
Contact Material:
Brass, Copper Alloy, Phosphor Bronze
Base Product Number:
DCJ250
ECCN:
EAR99

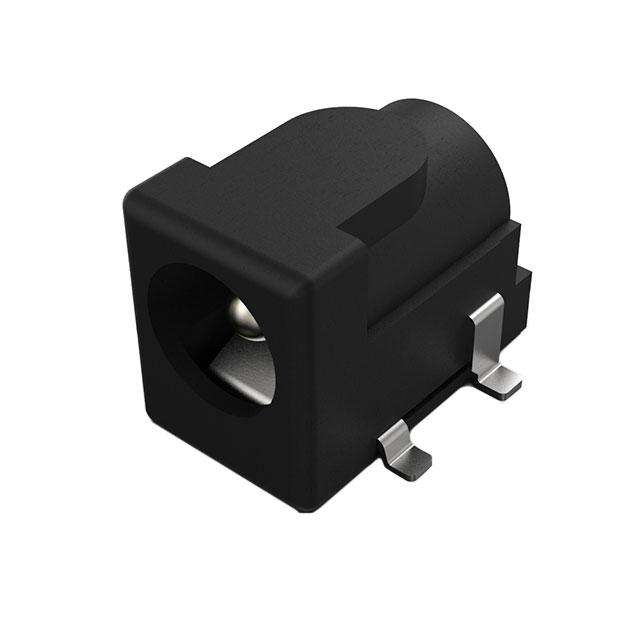

This is manufactured by GCT. The manufacturer part number is DCJ250-05-A-K1-A. Its actual diameter is 0.098" (2.50mm id), 0.252" (6.40mm od). It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -20°c ~ 70°c operating temperature range. The product has 2.55mm id (0.100"), 5.50mm od (0.217") industrial recognised mating diameter. Internal switch options: single switch, normally closed. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 20vdc. In addition, it is reach unaffected. The product consists of 2 conductors, 3 contacts positions or contacts. It carries ul94 v-0 of material flammability rating. It is shipped in tape & reel (tr) package . In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 5 a. The product also features robust polyamide (pa9t), nylon 9t housing material. The body has a classic black colour. The splendid features of the product include board guide, solder retention. The product is available in surface mount, right angle configuration. The product dcj250-05, is a highly preferred choice for users. While the contact is silver. The product is made from sturdy brass, copper alloy, phosphor bronze materials. Moreover, it corresponds to dcj250, a base product number of the product. The product is designated with the ear99 code number.
