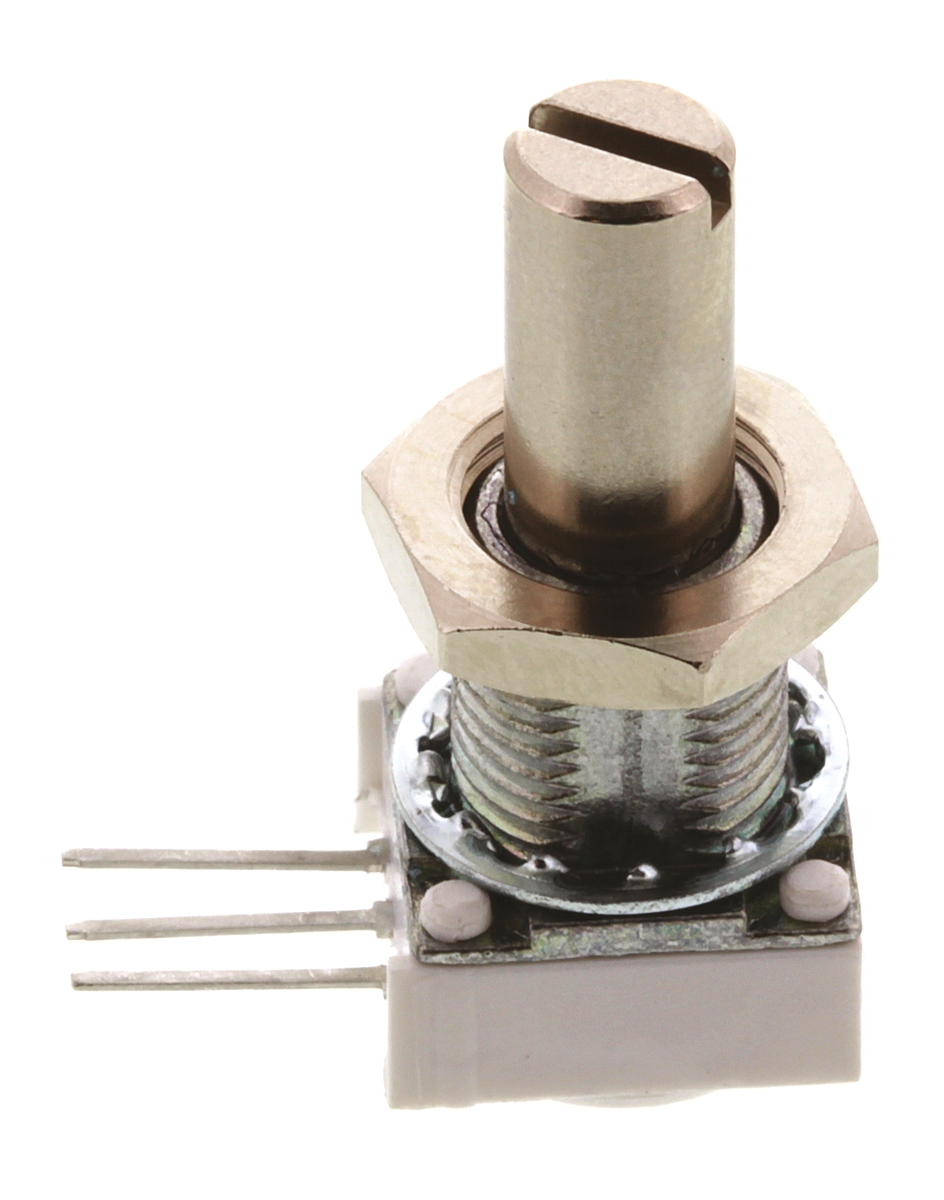

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo
manufacturer logo

Manufacturer : Vishay
Manufacturer Part No : 14810F0GJSX10103KA
Enrgtech Part No : ET14029603
Product Range : PolySwitch RXEF Series

Vishay 148 Series Conductive Plastic Potentiometer with a 6.35 mm Dia. Shaft, 10kΩ, ±10%, 0.5W, ±1000ppm/°C

12mm 148 Series Single-turn potentiometer with conductive plastic track High rotational life Quiet electrical output Panel and PCB mountable Temperature Coefficient ±1000ppm/°C Contact Resistance Variation 1.5% Electrical rotation (nom,) 270° ±10% Without Switch, 240° ±5% With Switch Rotational Life 50000 Cycles Switch rating 125mA @ 28Vdc Dimensions, Body: single track without switch 12.7mm square, D.11.9mm dual track 12.7mm square, D. 19.5mm single track with switch 12.7mm square, D. 19.5mm Shaft Ø6.35mm, L. 22mm* , Ø3.17mm L.19mm* (metal) Mounting bush Ø6.35mm L.6.35mm (metal) * measurement includes bush Supplied with metal lockwasher and nut.

Product Information

Shaft Diameter : 6.35 mm
Mounting Type : Panel Mount, Through Hole
Potentiometer Type : Rotary
Series : 148
Termination Style : Pin
Number of Gangs : 1
Number of Turns : 1
Shaft Length : 22.2mm
Actuator Type : Slotted Shaft
Electrical Taper : Linear
Power Rating : 0.5W
Element Material : Conductive Plastic
Tolerance : ±10%
Maximum Resistance : 10 kΩ
rohs : RoHS Certificate of Compliance

Technical Documents

  • Datasheet (Technical Reference)

Availability:
0
in stock
Check now

Rate:
  • 50
    +
    £ 4.490
