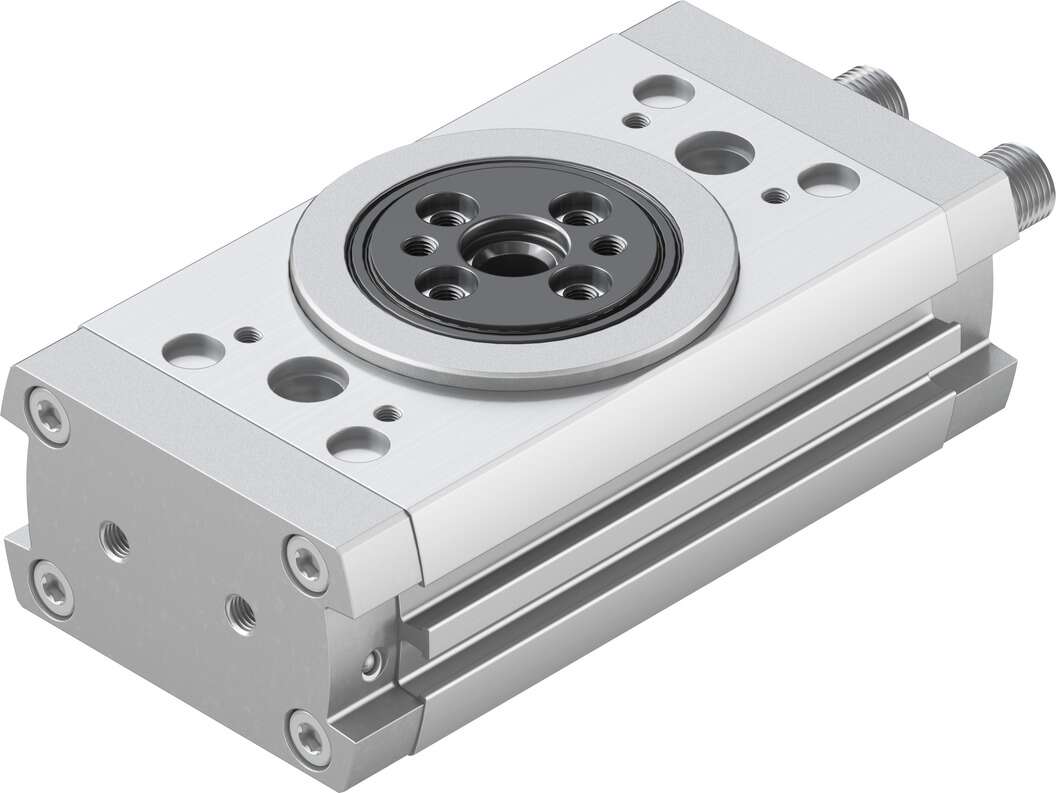

Festo Double Acting Rotary Actuator, 180° Swivel, 8bar, M5 Port

Enrgtech Part No: ET16815105
|
Manufacturer Part No:
DRRD-16-180-FH-PA
|
Manufacturer: Festo

DRRD-16-180-FH-PA Festo Double Acting Rotary Actuator, 180° Swivel, 8bar, M5 Port

Product Information

Port Connection:

Maximum Input Pressure:

8bar

Cushioning Type:

Elastic

Maximum Operating Pressure:

8 bar

Weight:

640g

Force at 7 bar:

1.6 Nm @ 6 bar

Model Number:

1577238

Size Type:

Standard

Manufacturer Series:

DRRD

Action:

Double

Rotary Angle:

180°

Checking for live stock

The Festo DRRD-16-180-FH-PA is a double-acting rotary actuator that produces controlled 180° swivel movement using compressed air. It is typically used in automation systems where parts need to be rotated, indexed, or repositioned accurately rather than pushed in a straight line. This actuator operates up to 8 bar and is built for repeatable motion in compact assemblies. It fits well in machines with limited space but still requires reliable rotary motion.

What Makes the Festo 1577238 Double-Acting Rotary Actuator Standout?

The DRRD series uses a rack-and-pinion mechanism to convert linear piston movement into rotary motion. Because it is double-acting, air pressure controls movement in both directions, giving better control and consistent torque throughout the rotation.

Fixed 180° swivel angle.
Double-acting pneumatic operation.
Smooth, repeatable rotation.
Consistent performance under load.
Compact housing for space-restricted systems.
M5 pneumatic ports for air supply.
Designed for continuous industrial use.
Compatible with standard pneumatic control valves.

Compact Rotary Actuator for Controlled Turning Motion

The compact body design helps integrate the actuator into tight machine layouts. The M5 air ports allow standard pneumatic fittings to be used, keeping installation straightforward and service-friendly.

Typical Uses in Automation Systems

This rotary actuator is commonly used in:

Pick-and-place units
Part orientation and turning stations
Clamping and release mechanisms
Assembly and packaging machines
Small indexing tables

Instruction Sheet - DRRD(Technical Reference)

DRRD-16-180-FH-PA Specification Sheet(Technical Reference)

Festo DRRD(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
