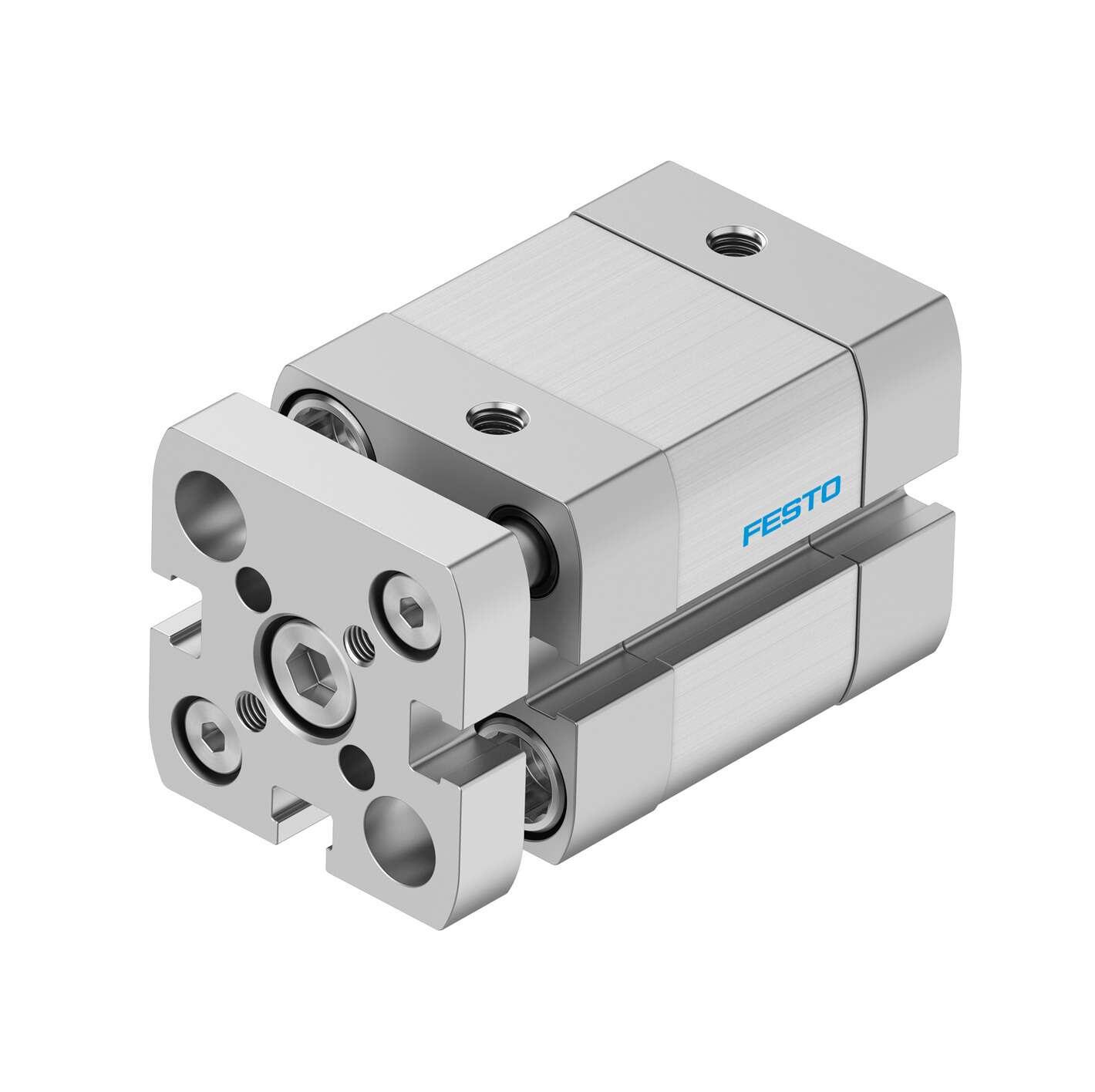

Festo Pneumatic Compact Cylinder 20mm Bore, 10mm Stroke, ADNGF Series, Double Acting

Enrgtech Part No: ET20005470
|
Manufacturer Part No:
ADNGF-20-10-P-A
|
Manufacturer: Festo

ADNGF-20-10-P-A Festo Pneumatic Compact Cylinder 20mm Bore, 10mm Stroke, ADNGF Series, Double Acting

Product Information

Cushioning Type:

Elastic

Maximum Operating Pressure:

10 bar

VDMA Standard:

24364-B1/B2-L

Model Number p:

554221

Pneumatic Connection:

Test Weight:

161 g @ 0 mm Stroke

Stroke:

10mm

Manufacturer Series:

ADNGF

ISO Standard:

21287

Action:

Double

Bore:

20mm

Stroke Interval Weight:

26 g @ 10 mm Stroke

Checking for live stock

The Festo ADNGF-20-10-P-A is a compact pneumatic cylinder designed for short-stroke linear motion in limited installation space. With a 20 mm bore and a 10 mm stroke, it is commonly used in small automation assemblies, fixtures, and machine modules that require precise, repeatable movement. The double-acting design allows controlled motion in both directions using compressed air up to 10 bar. This cylinder is part of the ADNGF series, known for its compact dimensions and reliable operation in industrial pneumatic systems.

Core Capabilities of the Festo 554221 Pneumatic Compact Cylinder 10bar

The cylinder body is built for durability while keeping the overall length as short as possible. This makes it suitable for applications where standard cylinders simply do not fit. The piston moves smoothly within the housing, providing consistent force output across repeated cycles.

Key technical characteristics include:

20 mm piston bore.
10 mm stroke length.
Double-acting pneumatic operation.
Rated for working pressures up to 10 bar.

Easy Integration into Pneumatic Systems

The ADNGF-20-10-P-A is designed for straightforward integration into standard pneumatic circuits. It works well with common Festo valves, fittings, and air preparation units. The predictable movement and short stroke make it suitable for fast cycling applications where accuracy matters more than long travel. It is typically installed in guided systems or combined with mechanical stops for positioning tasks.

Application Potential of the 10bar Cylinder

This compact cylinder is widely used in:

Assembly and pick-and-place units
Clamping and holding mechanisms
Packaging and labelling machines
Small automation fixtures
Test benches and tooling setups

Datasheet - ADNGF-20-10-P-A(Technical Reference)

Brochure - Tubing And Fittings(Technical Reference)

Catalogue - Compact Cylinders ADNGF(Technical Reference)
