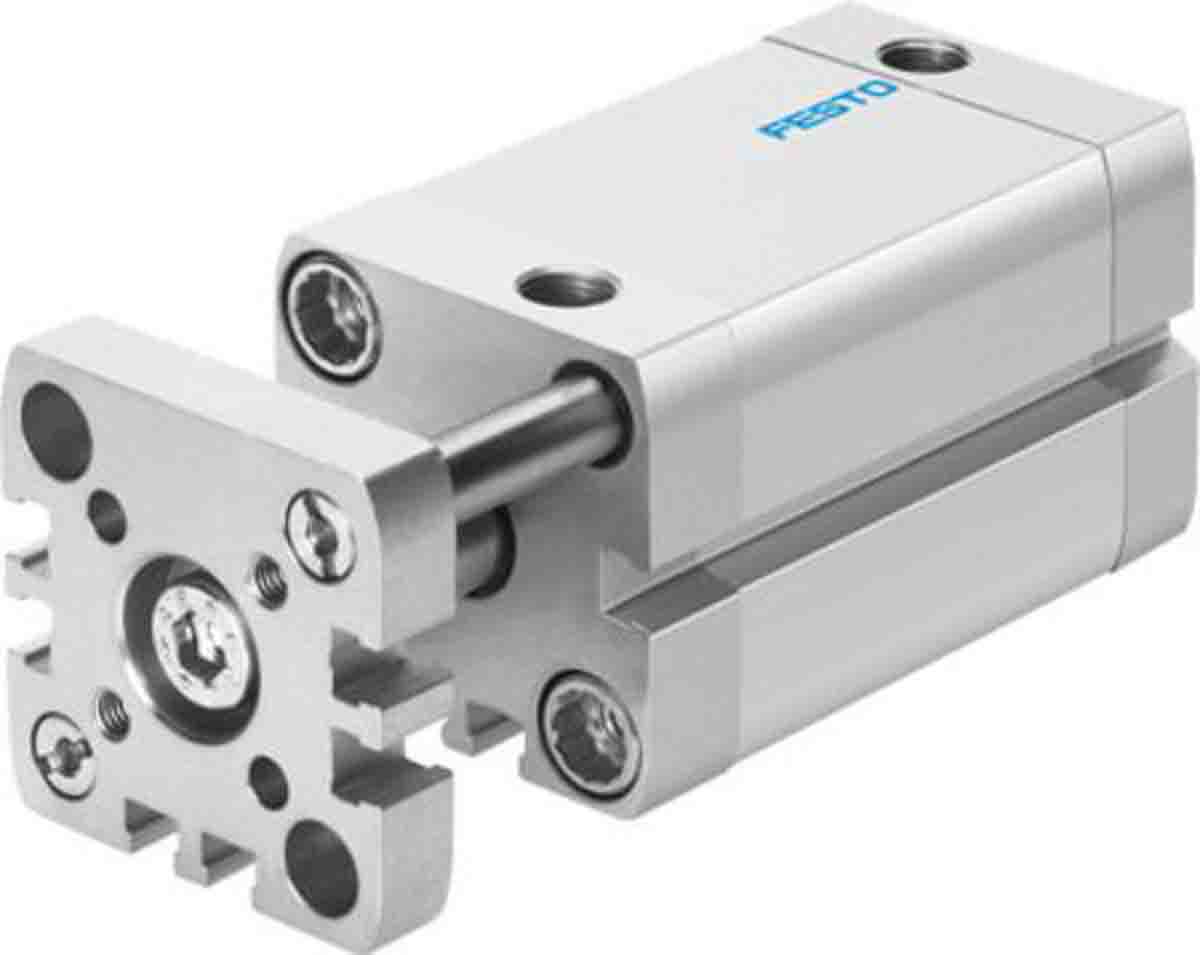

Festo Pneumatic Compact Cylinder 16mm Bore, 20mm Stroke, ADNGF Series, Double Acting

Enrgtech Part No: ET20005469
|
Manufacturer Part No:
ADNGF-16-20-P-A
|
Manufacturer: Festo

ADNGF-16-20-P-A Festo Pneumatic Compact Cylinder 16mm Bore, 20mm Stroke, ADNGF Series, Double Acting

Product Information

Cushioning Type:

Cushioning Rings

Dimensions:

59.7 x 29 x 29mm

VDMA Standard:

VDMA24364

Stroke Interval Weight:

16 @10 mm g

Piston Rod Thread Gender:

Male

Model Number p:

554215

Stroke:

20mm

Pneumatic Connection:

Height:

29mm

Width:

29mm

Length:

59.7mm

Maximum Operating Pressure:

10 bar

Checking for live stock

The Festo ADNGF-16-20-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but controlled linear motion is still required. With a 16 mm bore and a 20 mm stroke, it delivers precise forward and return movement using compressed air, making it suitable for compact automation setups. This cylinder is generally employed in machinery where short strokes, repeatability, and reliable positioning matter more than high force or long travel.

How It Benefits Users

The ADNGF series features a compact body that fits easily into tight machine frames and assemblies. Its short overall length allows it to be mounted close to the working area, reducing mechanical complexity.

Compact form for limited installation space.
Short stroke for precise motion control.
Lightweight construction for fast response.
Selected when standard cylinders are too long for the available space.

Compact Pneumatic Cylinder for Controlled Linear Movement

This model uses double-acting pneumatic operation, meaning air pressure is applied for both extension and retraction. This provides better control than spring-return designs and allows consistent movement in both directions. The cylinder is designed for smooth motion, making it suitable for repetitive cycles in automated systems without excessive wear.

Field Applications of the Festo 554215 Double-Action Pneumatic Compact Cylinder

The Festo ADNGF-16-20-P-A is typically used in:

Pick-and-place units
Clamping and holding mechanisms
Small presses and stops
Packaging and assembly machines
Light material handling systems
