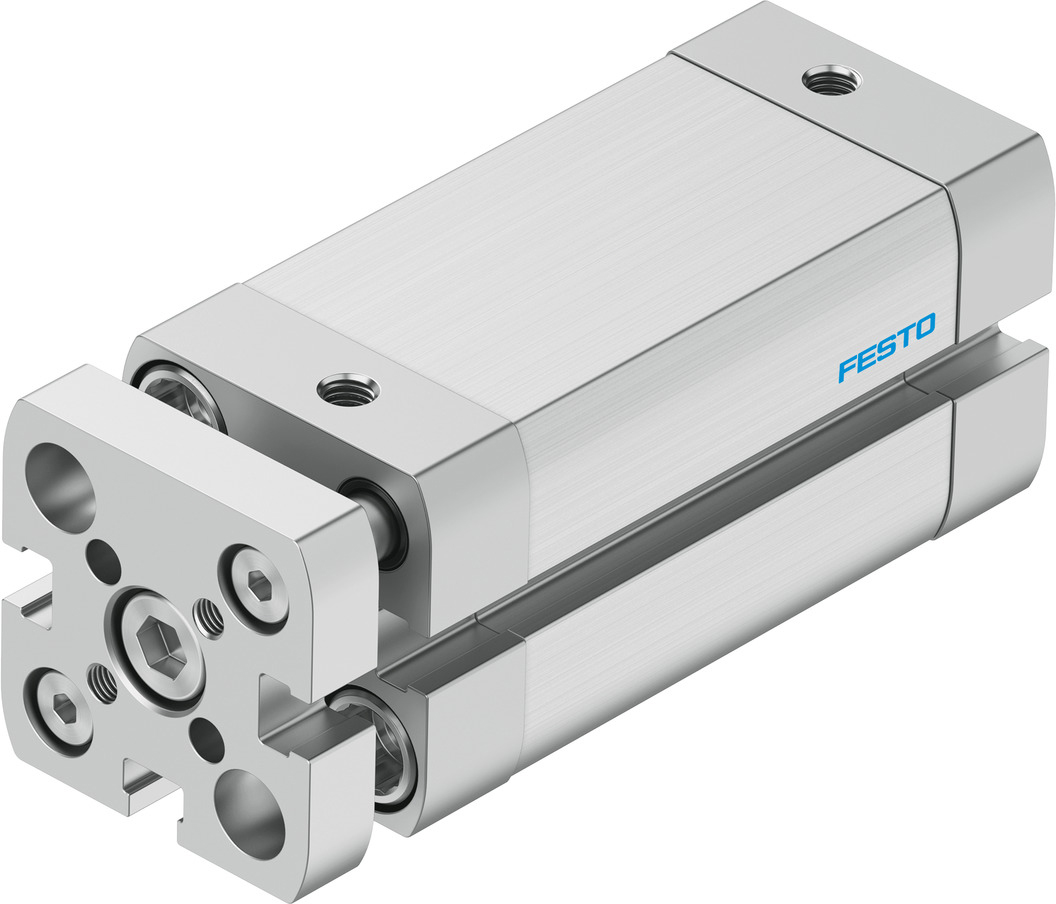

Festo ADNGF-20-40-P-A, Pneumatic Compact Cylinder 20mm Bore, 40mm Stroke, ADNGF Series, Double Acting

Enrgtech Part No: ET20005290
|
Manufacturer Part No:
ADNGF-20-40-P-A
|
Manufacturer: Festo

ADNGF-20-40-P-A Festo , Pneumatic Compact Cylinder 20mm Bore, 40mm Stroke, ADNGF Series, Double Acting

Product Information

Diameter:

20mm

Cushioning Type:

Elastic

VDMA Standard:

VDMA24364-B1/B2-L

Weight:

258g

Model Number p:

554226

Pneumatic Connection:

Maximum Operating Pressure:

10 bar

Stroke:

40mm

Manufacturer Series:

ADNGF

ISO Standard:

ISO 21287

Action:

Double

Bore:

20mm

Checking for live stock

The Festo ADNGF-20-40-P-A is a compact pneumatic cylinder designed for simple push-and-pull motion in tight installation spaces. With a 20 mm bore and 40 mm stroke, it delivers steady linear movement for handling, positioning, or small mechanical operations. The ADNGF series is known for its slim design, making it useful in machines with limited space where reliable actuation is still required. This model is a double-acting type, which means it uses air pressure in both directions for consistent travel and controlled motion.

Core Capabilities of the Festo 554226 Pneumatic Compact Cylinder

The cylinder provides smooth movement and stable force output suited for light to medium-duty automation tasks. It fits easily into compact assemblies, tool fixtures, and small automated stations.

Steady motion for basic linear tasks.
Short overall length for tight machine layouts.
Good repeatability during repetitive cycles.
Robust, guided design.
Double-acting for controlled forward and return strokes.
Suits small handling units and compact machines.
Works well in setups where durability and clean movement matter.

Compact Cylinder for Straightforward Motion Tasks

The ADNGF-20-40-P-A has a straightforward construction that holds up well to routine industrial use. The guided version improves stability and prevents piston rotation, which is helpful when precise alignment is required.

Field Applications of the Product

Anywhere you need simple, compact linear movement, this cylinder handles the job without adding bulk.

Small assembly systems
Pick-and-place units
Light fixtures and positioning tasks
Packaging and handling equipment

Datasheet - ADNGF-20-40-P-A(Technical Reference)

Catalogue - Compact Cylinders ADNGF(Technical Reference)
