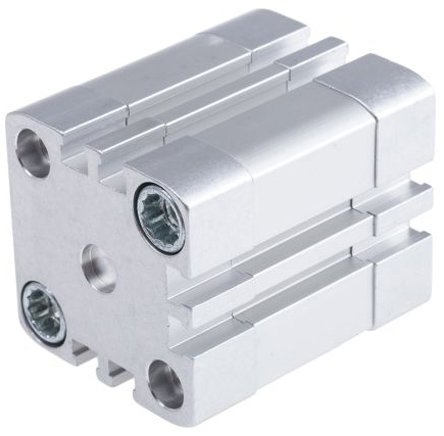

Festo Double Action Pneumatic Compact Cylinder 40mm Bore, 15mm stroke

Enrgtech Part No: ET16888930
|
Manufacturer Part No:
ADN-40-15-A-P-A
|
Manufacturer: Festo

ADN-40-15-A-P-A Festo Double Action Pneumatic Compact Cylinder 40mm Bore, 15mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Piston Rod Thread Size:

1/8 in G

Stroke Length:

15mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

40 mm

Body Material:

Aluminium

Model Number:

536291

Height:

54.5mm

Width:

54.5 mm

Length:

66.1mm

Checking for live stock

The Festo ADN-40-15-A-P-A is a compact, double-acting pneumatic cylinder designed for applications where space is limited and precise movement is required. With a 40 mm bore and a 15 mm stroke, it is typically used for short linear motions such as clamping, positioning, or pushing components in automated systems. This cylinder complies with ISO 21287, making it effortless to integrate into existing pneumatic systems without redesigning the mounting layout.

Core Capabilities of the Festo 536291 Double-Action Pneumatic Cylinder

The compact body allows installation in tight machine frames, control panels, and assembly stations. Despite its small size, the cylinder delivers stable force output and smooth motion during repeated cycles.

40 mm piston bore for controlled force.
15 mm short stroke for accurate positioning.
Compact aluminium body.
Front and rear mounting options.
Built for environments where space matters.

Double-Acting Operation for Better Control

Being double-acting, the cylinder uses air pressure for both extension and retraction. This provides better control over movement than spring-return designs, especially in automated processes where timing and repeatability are essential. The piston movement is consistent and predictable, making it suitable for systems that run continuously over long periods.

Wide Application Range

This compact cylinder is typically used in:

Assembly and pick-and-place systems
Clamping and holding mechanisms
Packaging and labelling machines
Small presses and ejector systems
