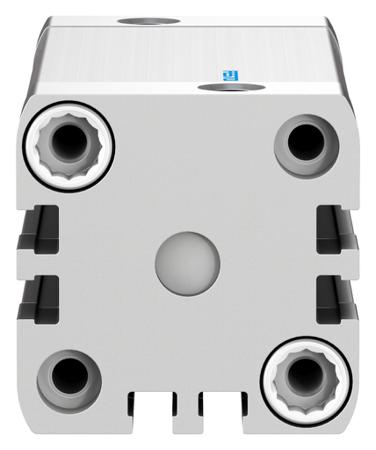

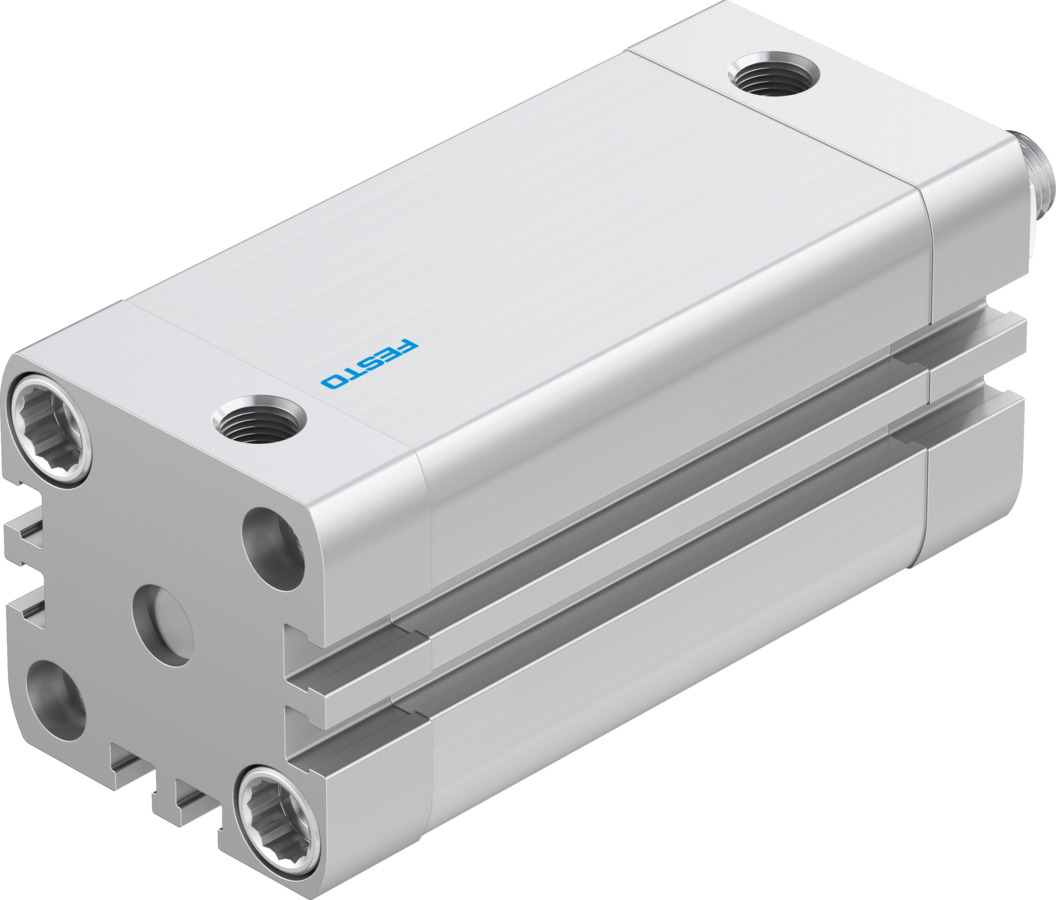

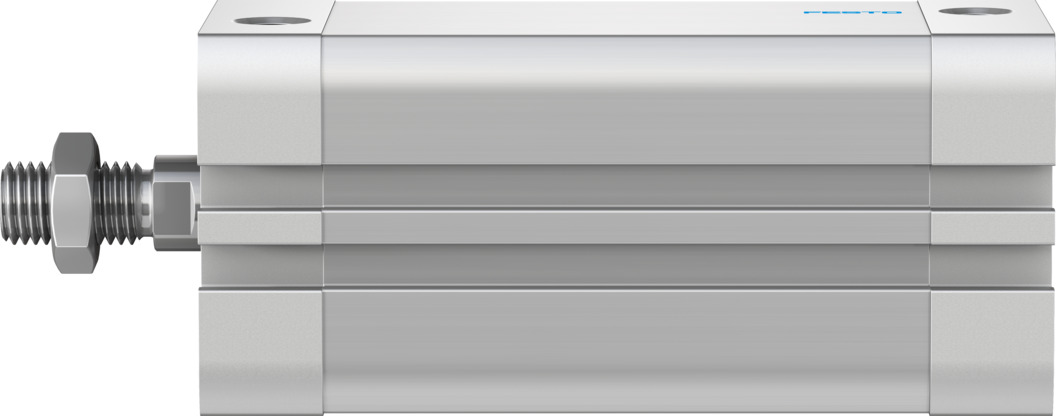

Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 60mm Stroke

Enrgtech Part No: ET16888929
|
Manufacturer Part No:
ADN-32-60-A-P-A
|
Manufacturer: Festo

ADN-32-60-A-P-A Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 60mm Stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Piston Rod Thread Size:

1/8 in G

Stroke Length:

60mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

32 mm

Body Material:

Aluminium

Model Number:

536276

Height:

47mm

Width:

47 mm

Length:

110mm

Checking for live stock

The Festo ADN-32-60-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but reliable linear movement is required. With a 32 mm bore and a 60 mm stroke, it delivers controlled forward and return motion using compressed air, making it suitable for automation tasks that need repeatable positioning. This cylinder is typically used in machinery where standard cylinders are too long and compact installation is essential.

Unparalleled Benefits of Buying the Festo 536276 Double-Action Pneumatic Compact Cylinder

The compact body design allows the cylinder to fit easily into tight machine layouts without affecting performance. It is built for continuous operation and maintains stable movement even under frequent cycling.

Compact form factor for space-saving installation.
Double-acting operation for controlled extension and retraction motion.
Rigid housing for consistent alignment.
Designed for standard industrial pneumatic systems.
Helps reduce the machine footprint while maintaining accurate motion.

How It Works in Real Applications

This cylinder converts compressed air into linear motion on both strokes. Air pressure drives the piston forward and backwards, allowing precise control of movement speed and force when used with proper valves and regulators. It is typically installed in automated systems that require controlled pushing, positioning, or clamping actions. The design supports smooth motion and consistent repeatability during long production cycles.

Broad Range Application

The Festo ADN-32-60-A-P-A is widely utilised in:

Automated assembly machines
Packaging and labelling equipment
Pick-and-place systems
Clamping and positioning mechanisms
Conveyor and material handling setups

Datasheet(Technical Reference)

ADN-32-60-A-P-A Specification Sheet(Technical Reference)

Brochure - Less Is More(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
