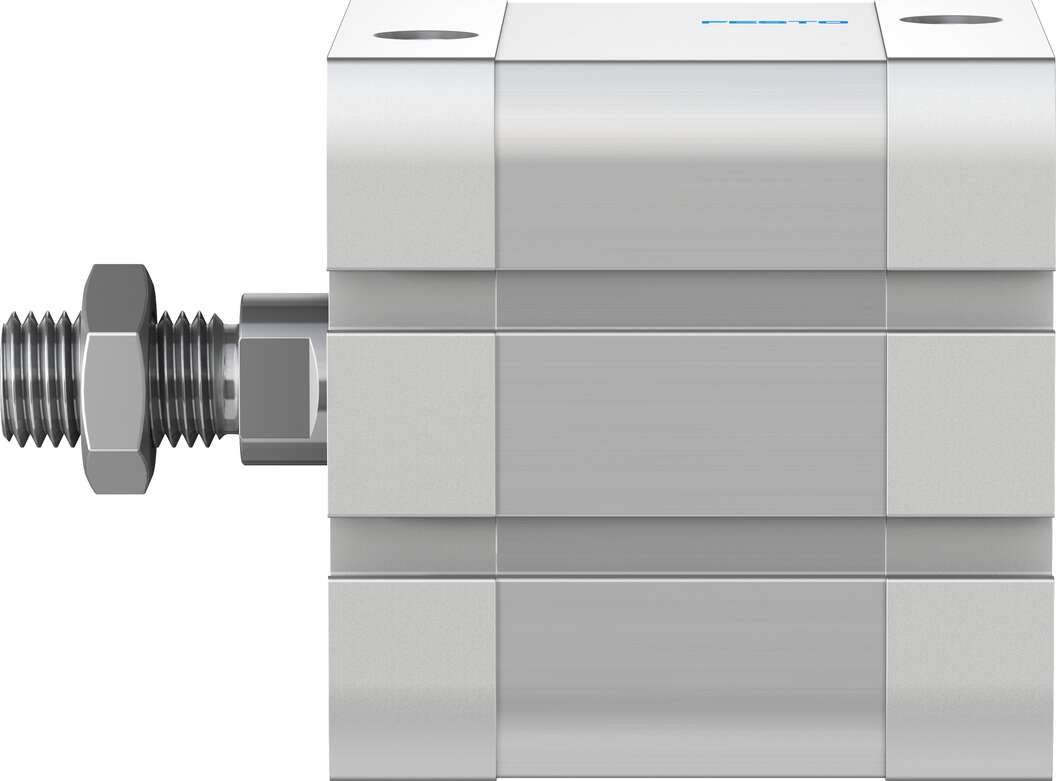

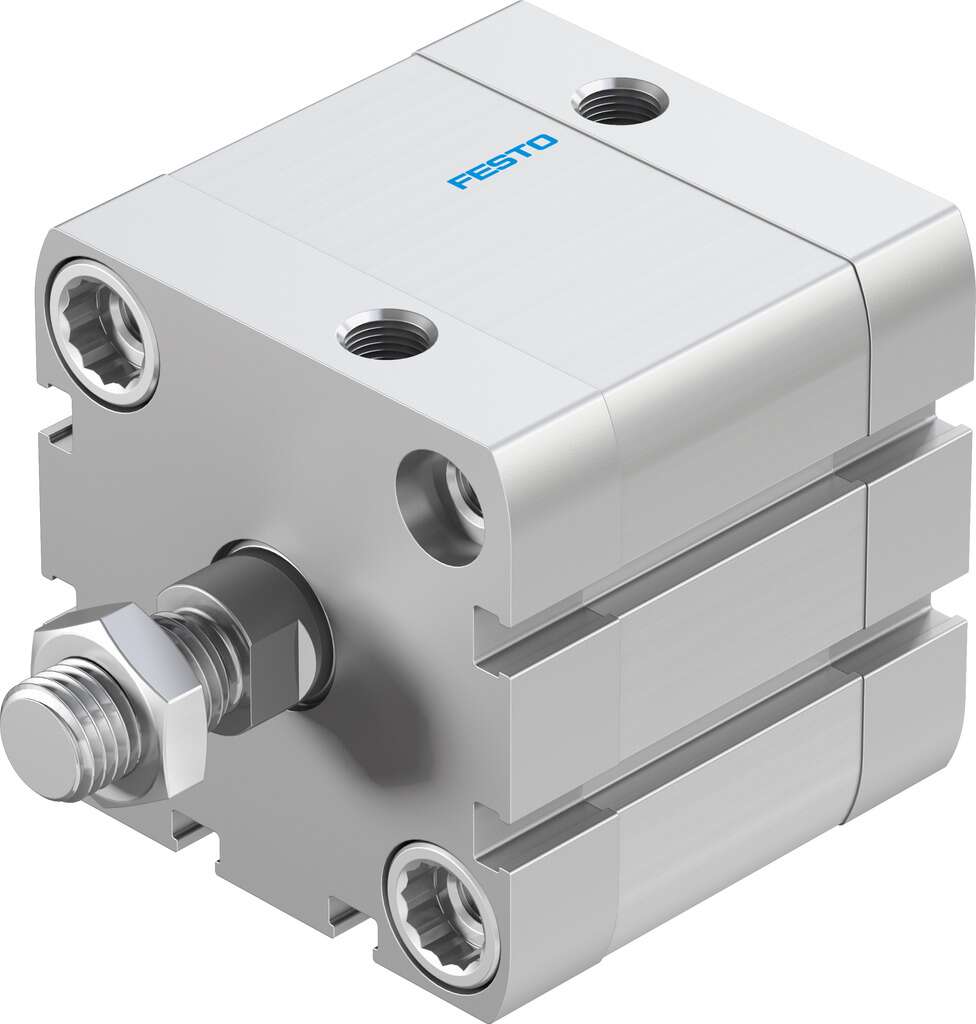

Festo 536313, Double Action Pneumatic Compact Cylinder

Enrgtech Part No: ET16814992
|
Manufacturer Part No:
ADN-50-20-A-P-A
|
Manufacturer: Festo

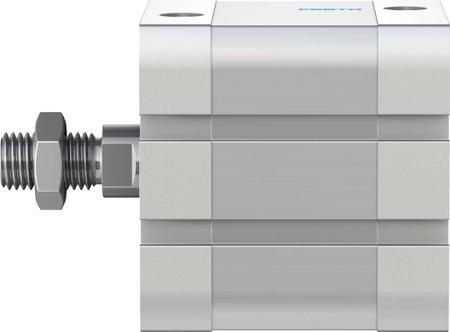

ADN-50-20-A-P-A Festo 536313, Double Action Pneumatic Compact Cylinder

Product Information

Cushioning Type:

Elastic

Piston Rod Thread Size:

1/8 in G

Stroke Length:

20mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

50 mm

Body Material:

Aluminium

Model Number:

536313

Height:

65.5mm

Width:

65.5 mm

Length:

72.7mm

Checking for live stock

The Festo ADN-50-20-A-P-A Double Action Pneumatic Compact Cylinder is designed to deliver reliable linear motion in space-restricted industrial applications. With a 50 mm bore and 20 mm stroke, it ensures precise force control and fast actuation for automated machinery and production systems. It is suitable for high-cycle automation tasks where repeatable positioning and smooth operation are essential for production accuracy.

How It Benefits Professionals

50 mm bore diameter for balanced force output.
20 mm stroke length for short and controlled movement.
Double-acting pneumatic operation.
Compact body design for confined installations.
Fast response for high-speed automation.
Precision-machined piston for smooth travel.
Compatible with industrial compressed air systems.
Suitable for continuous-duty applications.
Low-maintenance operating structure.

Engineered for Industrial Reliability

Built with durable materials and precision sealing technology, the Festo ADN-50-20-A-P-A delivers long service life under demanding plant conditions. Its compact body withstands vibration, pressure fluctuations, and repetitive mechanical loads common in manufacturing environments.

Application Potential of the Festo 536313 Double-Action Pneumatic Compact Cylinder

This compact pneumatic cylinder is widely used in:

Packaging and material handling systems
Assembly line automation
Robotic gripping and positioning
Electrical panel automation
Conveyor control mechanisms
Industrial machinery actuation

Datasheet(Technical Reference)

Brochure - The Future of Standard Cylinders(Technical Reference)

ADN-50-20-A-P-A Specification Sheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
