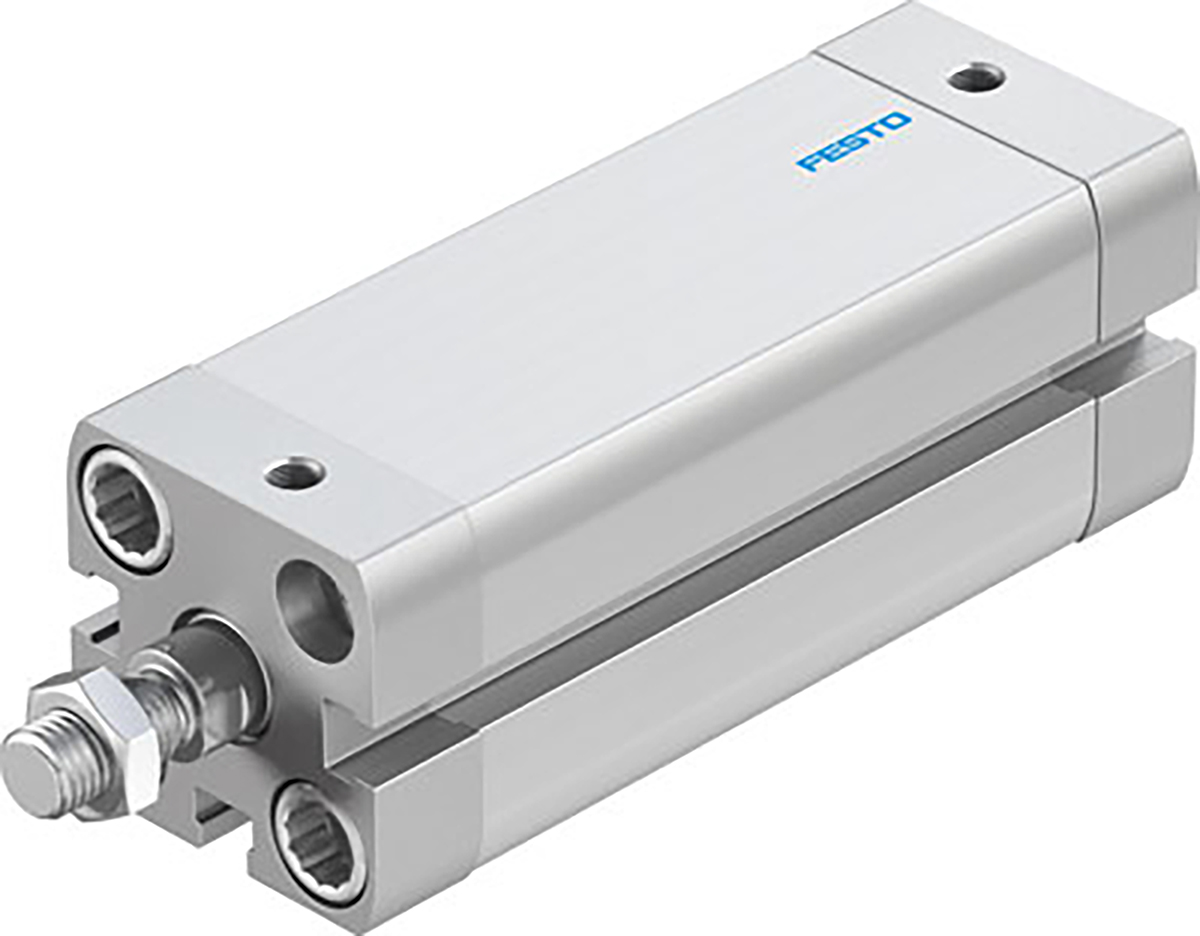

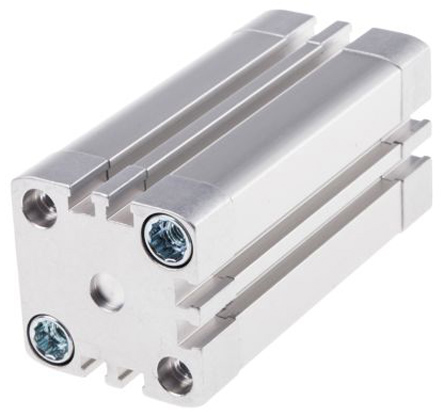

Festo Double Action Pneumatic Compact Cylinder 40mm Bore, 5mm stroke

Enrgtech Part No: ET16814987
|
Manufacturer Part No:
ADN-40-5-A-P-A
|
Manufacturer: Festo

ADN-40-5-A-P-A Festo Double Action Pneumatic Compact Cylinder 40mm Bore, 5mm stroke

Product Information

Piston Rod Gender:

Male

Piston Rod Thread Size:

1/8 in G

Width:

54.5 mm

Distrelec Product Id:

301-68-287

Better World Claim:

Repairable by the End User

Maximum Operating Pressure:

10 bar

Bore Size:

40 mm

Model Number:

536289

Product Type:

Pneumatic Cylinder

Maximum Operating Temperature:

80°C

Rod Type:

Single

Body Material:

Aluminium

Checking for live stock

The Festo ADN-40-5-A-P-A is a compact, double-acting pneumatic cylinder designed for applications where space is limited and precise movement is required. With a 40 mm bore and a short 5 mm stroke, it is mainly used for clamping, positioning, and light pressing tasks in automated systems. This cylinder is part of Festo’s compact ADN series, which is commonly chosen when standard cylinders are too long for the available installation space.

How It Benefits Users

The compact body allows the cylinder to fit into machines with restricted mounting space. Despite its short length, it still delivers consistent force due to the larger bore size.

40 mm bore for stable output force.
5 mm stroke for short linear movement.
Compact housing for space-saving installation.
Suitable for machinery with closely packed components.

Compact Pneumatic Cylinder for Short, Controlled Movement

Being double-acting, air pressure is used for both extension and retraction. This provides better control over movement than single-acting cylinders and allows the piston to return reliably even under load. This type of operation is preferred in automated systems where repeatable motion and timing accuracy are essential.

Applicable Areas of the Festo 536289 Double-Action Pneumatic Compact Cylinder

It is often used where a short stroke is enough to complete a task without unnecessary movement.

Assembly and pick-and-place systems
Clamping and holding mechanisms
Packaging and labelling machines
Light pressing or ejector functions
