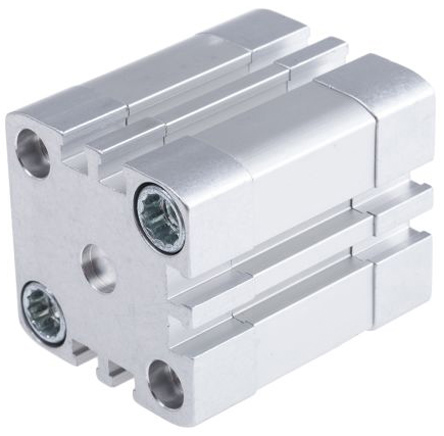

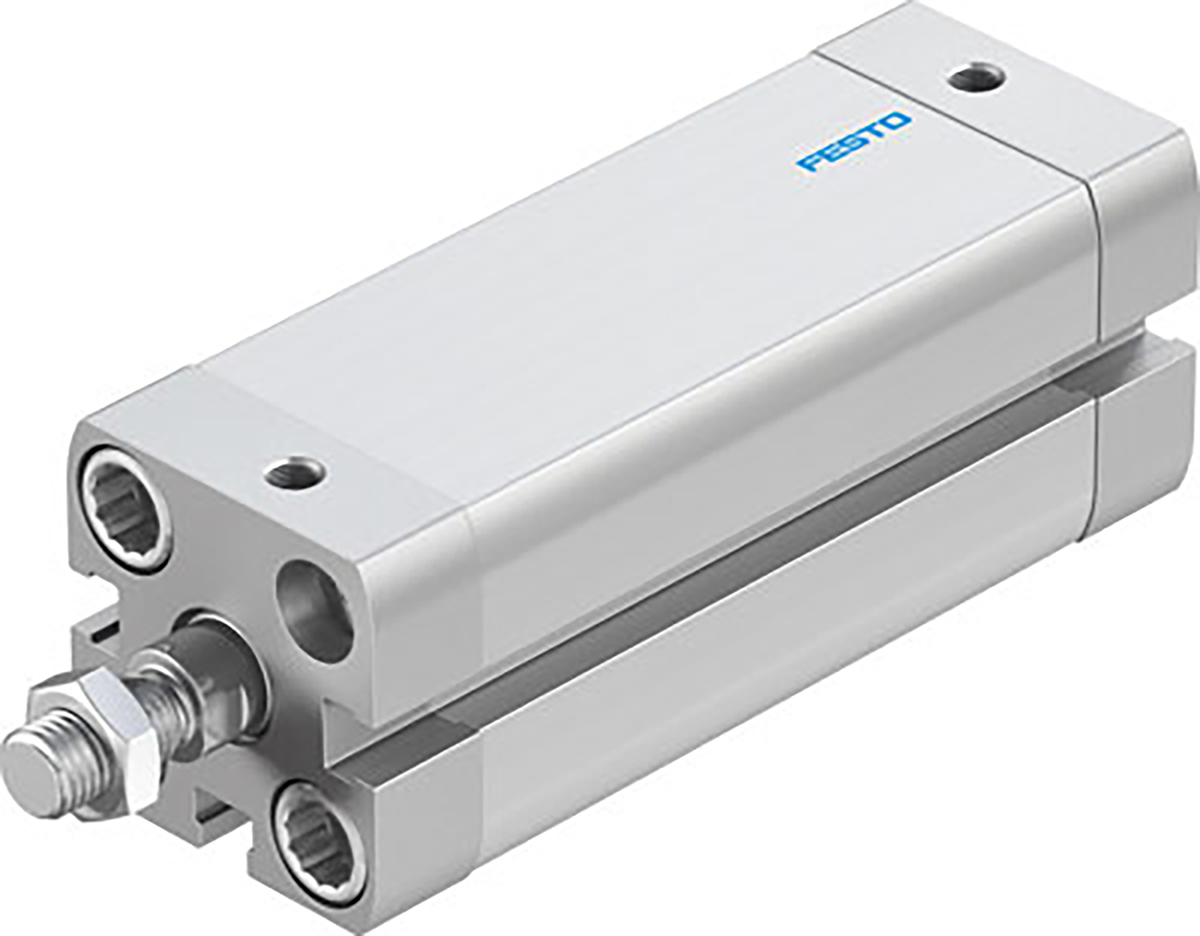

Festo Double Action Pneumatic Compact Cylinder 40mm Bore, 20mm stroke

Enrgtech Part No: ET16814981
|
Manufacturer Part No:
ADN-40-20-A-P-A
|
Manufacturer: Festo

ADN-40-20-A-P-A Festo Double Action Pneumatic Compact Cylinder 40mm Bore, 20mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

20mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

40 mm

Body Material:

Aluminium

Model Number:

536292

Height:

54.5mm

Width:

54.5 mm

Length:

71.1mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-40-20-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but reliable linear movement is required. With a 40 mm bore and a short 20 mm stroke, it is commonly used in compact machinery, automation stations, and assembly equipment where precise motion matters more than long travel. It operates up to 10 bar, making it suitable for standard industrial compressed-air systems without special setup.

How It Benefits Users

This cylinder follows Festo’s compact ADN series design, keeping the overall length short while maintaining solid force output. The aluminium body helps reduce weight while still providing durability for continuous operation.

40 mm bore for controlled force output.
20 mm stroke for short, accurate movement.
Double-acting operation for push and pull motion.
Compact form makes installation easier in machines with limited mounting space.

Compact Pneumatic Cylinder for Tight Installations

The ADN-40-20-A-P-A is built for repetitive motion in automated processes. It provides smooth piston movement and consistent performance during long production cycles. The pneumatic seals and internal components are designed to handle frequent switching without rapid wear. This cylinder is typically used where precise positioning, fast response, and dependable motion are required rather than heavy lifting.

Application Versatility of the Festo 536292 Double Action Pneumatic Compact Cylinder 10bar

It works well in systems that need compact actuators with predictable movement.

Packaging and labelling machines
Pick-and-place systems
Small clamping and positioning units
Assembly lines and automation fixtures
