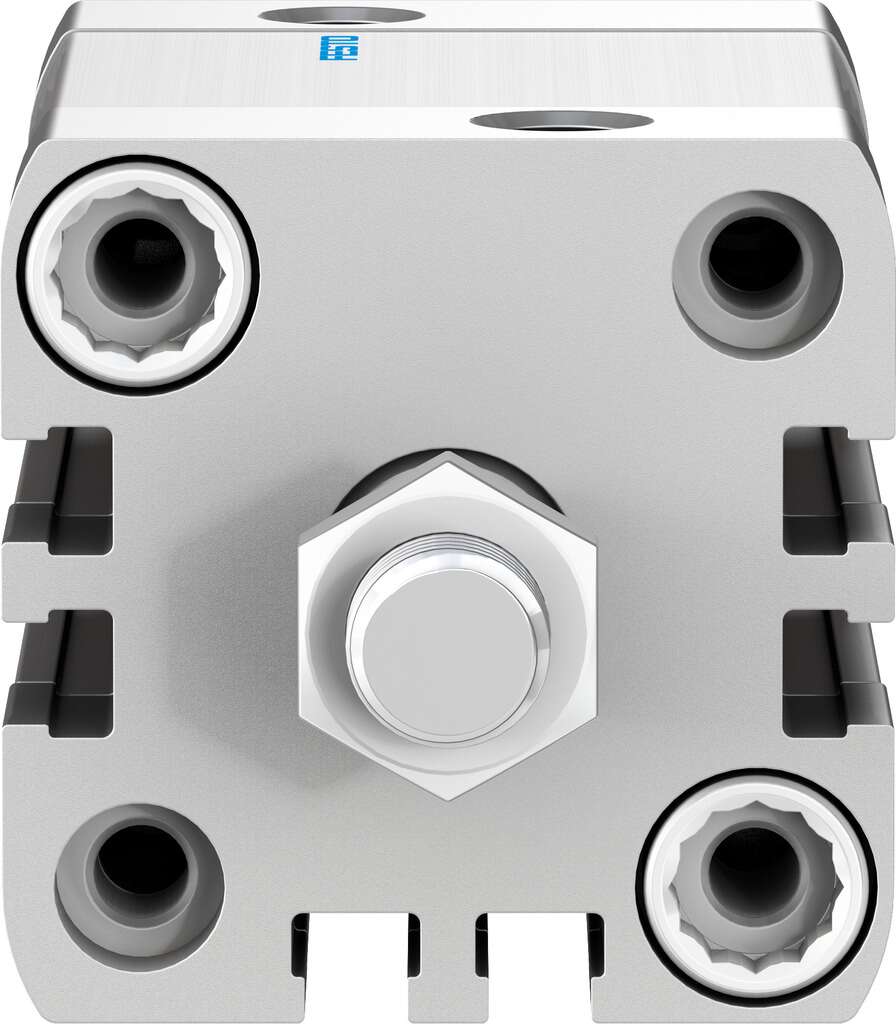

Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 25mm Stroke

Enrgtech Part No: ET16814974
|
Manufacturer Part No:
ADN-32-25-A-P-A
|
Manufacturer: Festo

ADN-32-25-A-P-A Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 25mm Stroke

Product Information

Piston Rod Gender:

Male

Piston Rod Thread Size:

1/8 in G

Width:

47 mm

Distrelec Product Id:

301-68-261

Maximum Operating Pressure:

10 bar

Bore Size:

32 mm

Model Number:

536272

Product Type:

Pneumatic Cylinder

Maximum Operating Temperature:

80°C

Rod Type:

Single

Body Material:

Aluminium

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-32-25-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but controlled linear motion is still required. With a 32 mm bore and a 25 mm stroke, it delivers consistent force and smooth movement in short-travel automation tasks. This cylinder is typically used in machinery where standard cylinders are too long or bulky. Its compact body allows it to fit into tight machine frames without requiring a redesign of the system layout.

Core Features of the Festo 536272 Double-Action Pneumatic Compact Cylinder

The ADN series is known for its clean, compact construction. The short stroke length reduces air consumption while still providing stable extension and retraction.

32 mm bore for balanced force output.
25 mm stroke for short, controlled movement.
Compact body for space-restricted assemblies.
Double-acting operation for precise control.

Easy to Integrate into Pneumatic Systems

The cylinder is designed to mount easily into standard pneumatic setups. It works well with common valves, fittings, and air preparation units. Seals and internal components are built for long service life, even in continuous operation environments. Once installed, it requires minimal adjustment. Movement remains stable, and alignment remains consistent, helping reduce wear on connected mechanical parts.

Typical Industrial Applications

This compact cylinder is frequently used in:

Clamping and positioning units
Pick-and-place mechanisms
Assembly and packaging machines
Light pressing and ejecting tasks
Automation systems with limited space

Datasheet(Technical Reference)

ADN-32-25-A-P-A Specification Sheet(Technical Reference)

Brochure - Simply Part of The Solution(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
