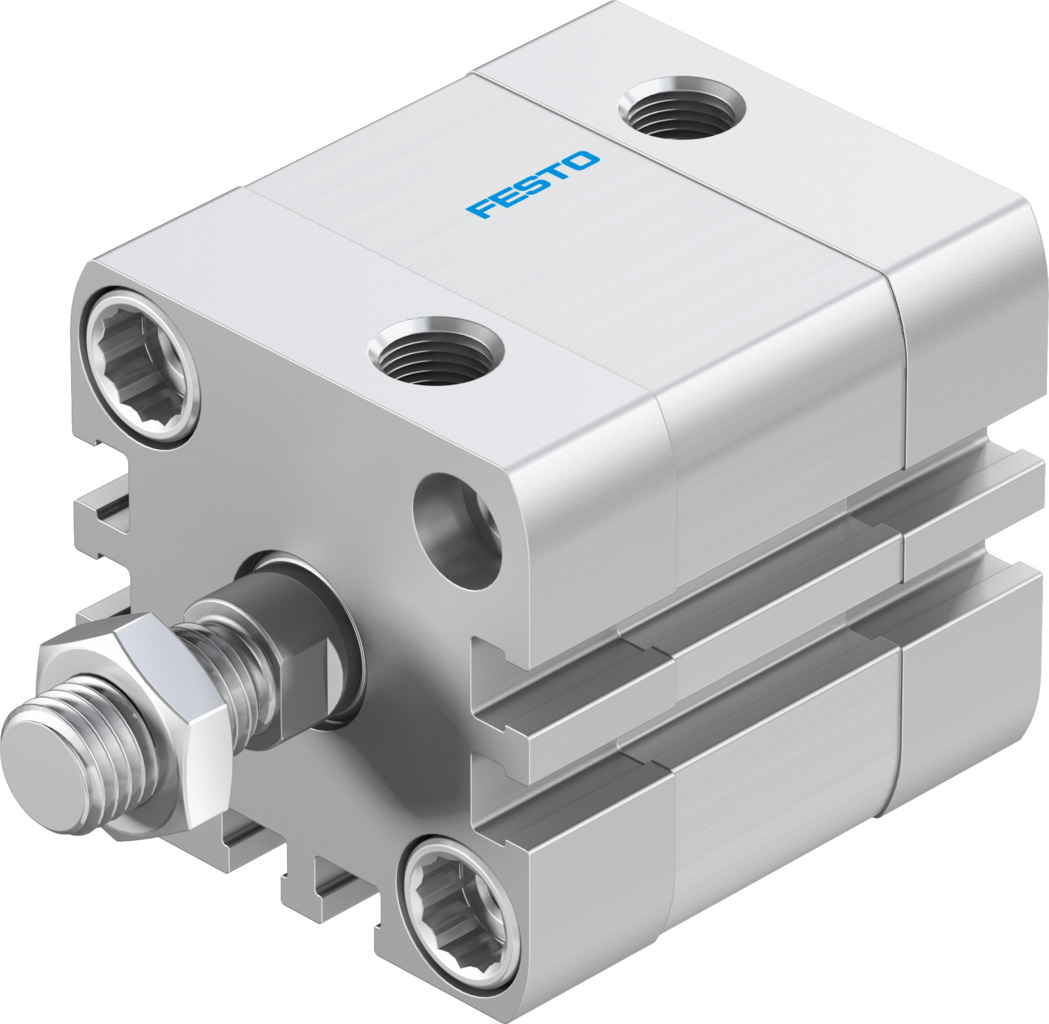

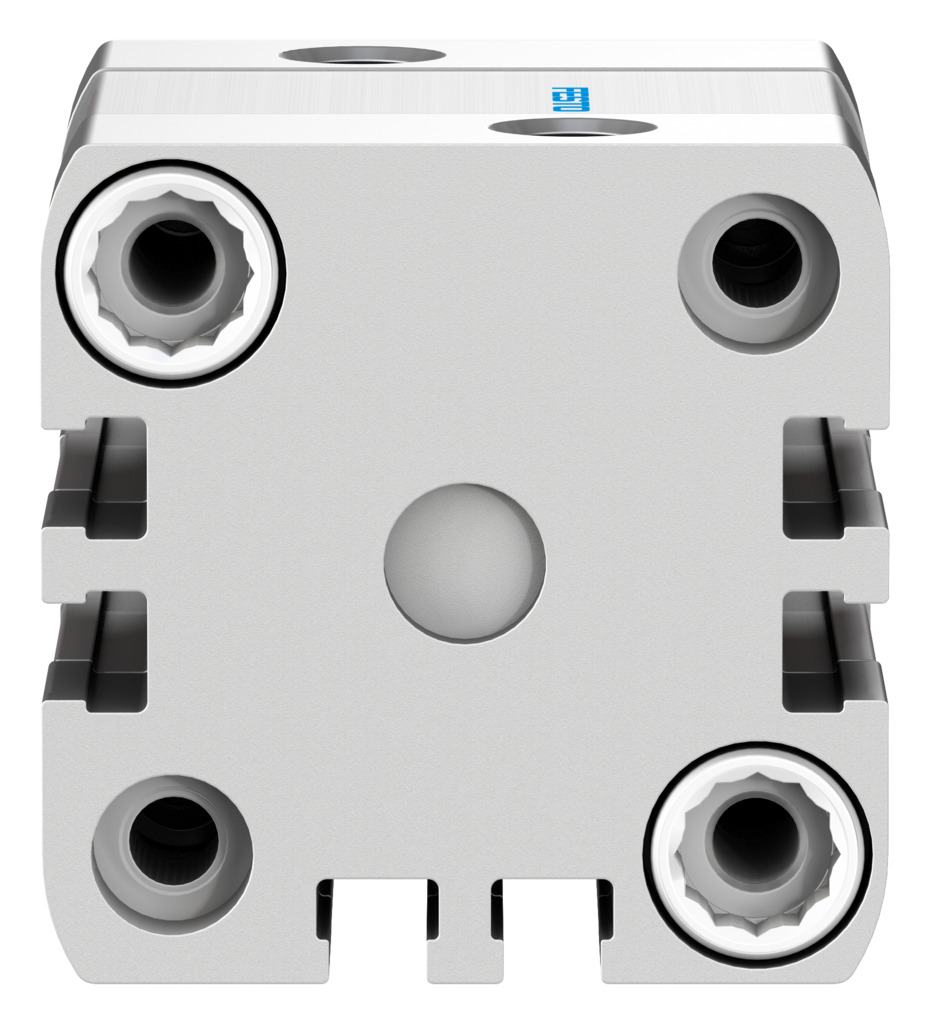

Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 10mm stroke

Enrgtech Part No: ET16814971
|
Manufacturer Part No:
ADN-32-10-A-P-A
|
Manufacturer: Festo

ADN-32-10-A-P-A Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 10mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

10mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Minimum Operating Temperature:

-20°C

Bore Size:

32 mm

Body Material:

Aluminium

Model Number:

536269

Height:

47mm

Width:

47 mm

Length:

60mm

Checking for live stock

The Festo ADN-32-10-A-P-A is a double-acting pneumatic cylinder designed for applications where space is limited and precise movement is required. With a 32 mm bore and a short 10 mm stroke, this cylinder is commonly used in compact automation setups that require repeatable linear motion without unnecessary travel. It is built for controlled pushing and pulling tasks in industrial systems where reliability matters more than speed or force extremes.

Salient Features and Benefits of the Festo 536269 Double-Action Pneumatic Cylinder

This cylinder belongs to Festo’s compact ADN series, which focuses on reducing overall length while keeping consistent performance. The short stroke allows accurate positioning and fast response, especially in machines with closely spaced components.

32 mm bore size for balanced force output.
10 mm stroke for short, precise movement.
Compact body suited for confined mounting spaces.
Controlled movement in both directions.
Consistent force during extension and retraction.
Better suitability for automated cycles.

Double-Acting Operation Explained Simply

Being double-acting means air pressure is used for both extending and retracting the piston. This provides better control than spring-return designs, especially in automated processes where timing and repeatability are essential.

Typical Industrial Uses

This pneumatic cylinder is typically found in:

Pick-and-place mechanisms
Clamping and positioning units
Packaging and assembly machines
Light-duty automation systems

Datasheet(Technical Reference)

ADN-32-10-A-P-A Specification Sheet(Technical Reference)

Brochure - Less Is More(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
