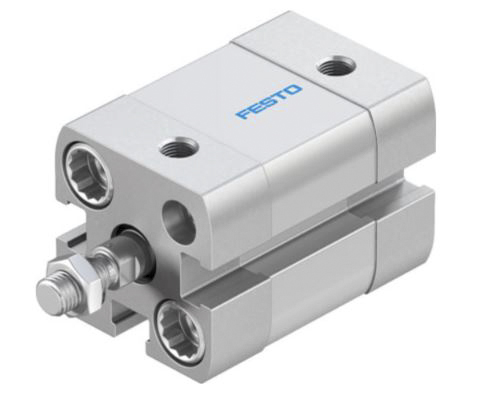

Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 40mm stroke

Enrgtech Part No: ET16814968
|
Manufacturer Part No:
ADN-25-40-A-P-A
|
Manufacturer: Festo

ADN-25-40-A-P-A Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 40mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

40mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Minimum Operating Temperature:

-20°C

Bore Size:

25 mm

Body Material:

Aluminium

Model Number:

536257

Height:

39.5mm

Width:

39.5 mm

Length:

84.5mm

Checking for live stock

The Festo ADN-25-40-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but controlled linear movement is required. With a 25 mm bore and a 40 mm stroke, it delivers consistent push and pull force from both directions of travel using compressed air. This cylinder is commonly used in automated systems where reliability, repeatability, and compact installation matter more than oversized power.

Standout Features of the Festo 536257 Pneumatic Cylinder

The compact body design allows this cylinder to fit into tight machine layouts without compromising performance. Its rigid construction helps maintain alignment during operation, reducing wear and ensuring smooth piston movement over extended service periods.

Compact form for space-restricted assemblies.
Stable movement under repeated cycles.
Designed for fixed or modular mounting.
Built for continuous operation in industrial environments.

Double-Acting Operation for Better Control

Being double-acting, the ADN-25-40-A-P-A uses air pressure to move the piston both forward and backwards. This provides better motion control than single-acting cylinders, especially in automated processes where timing and position accuracy are critical. This type of operation is widely used in pick-and-place systems, clamping mechanisms, and short-stroke automation tasks.

Field Applications of the Cylinder

Its short stroke and compact size make it suitable for fast, repetitive movements without unnecessary bulk.

Automated assembly lines
Packaging and labelling machines
Small clamping and positioning systems
Conveyor and material handling setups

Datasheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

ADN-25-40-A-P-A Specification Sheet(Technical Reference)
