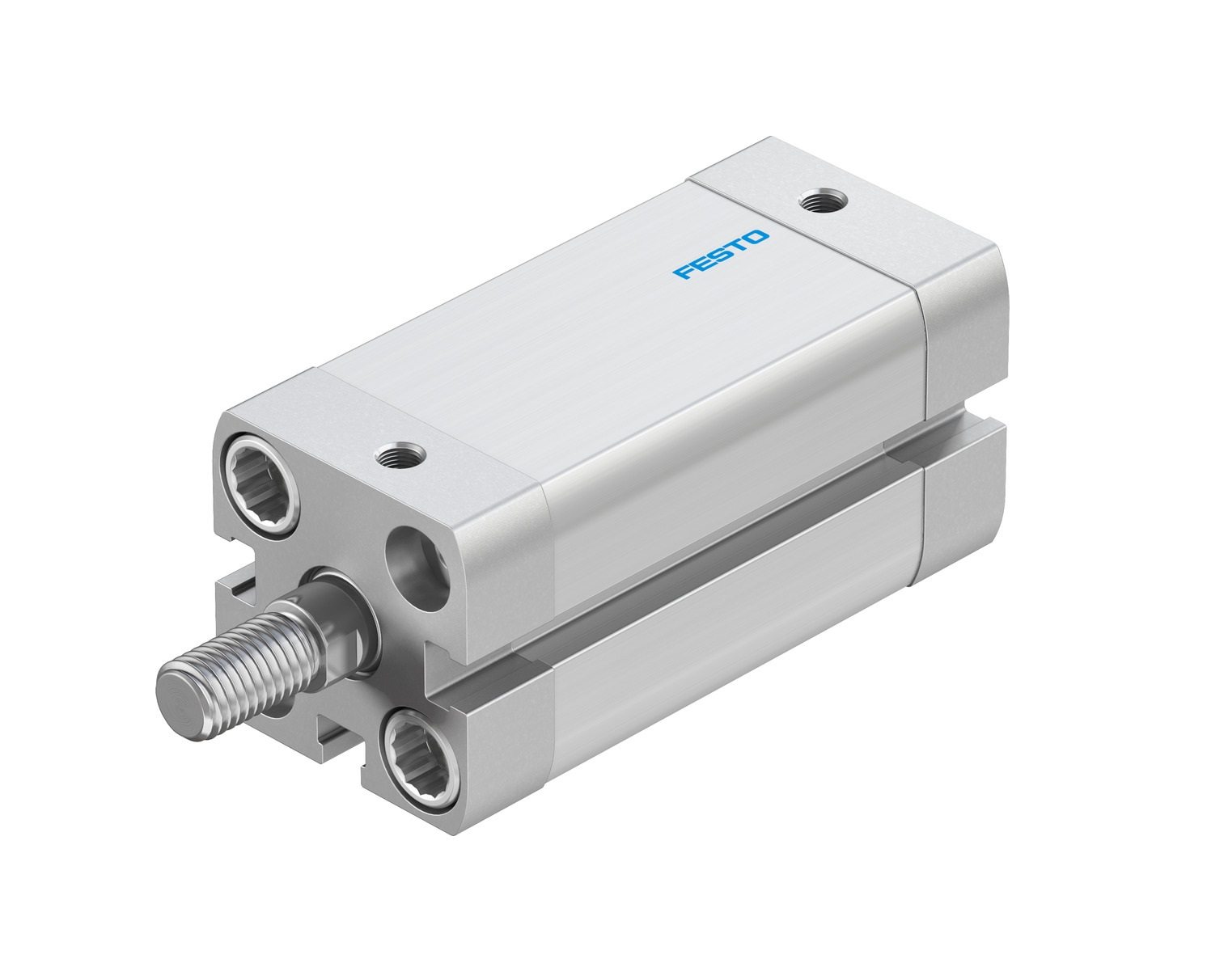

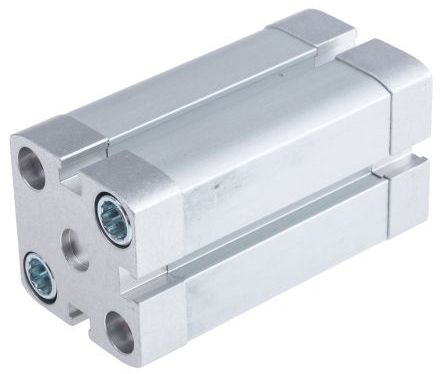

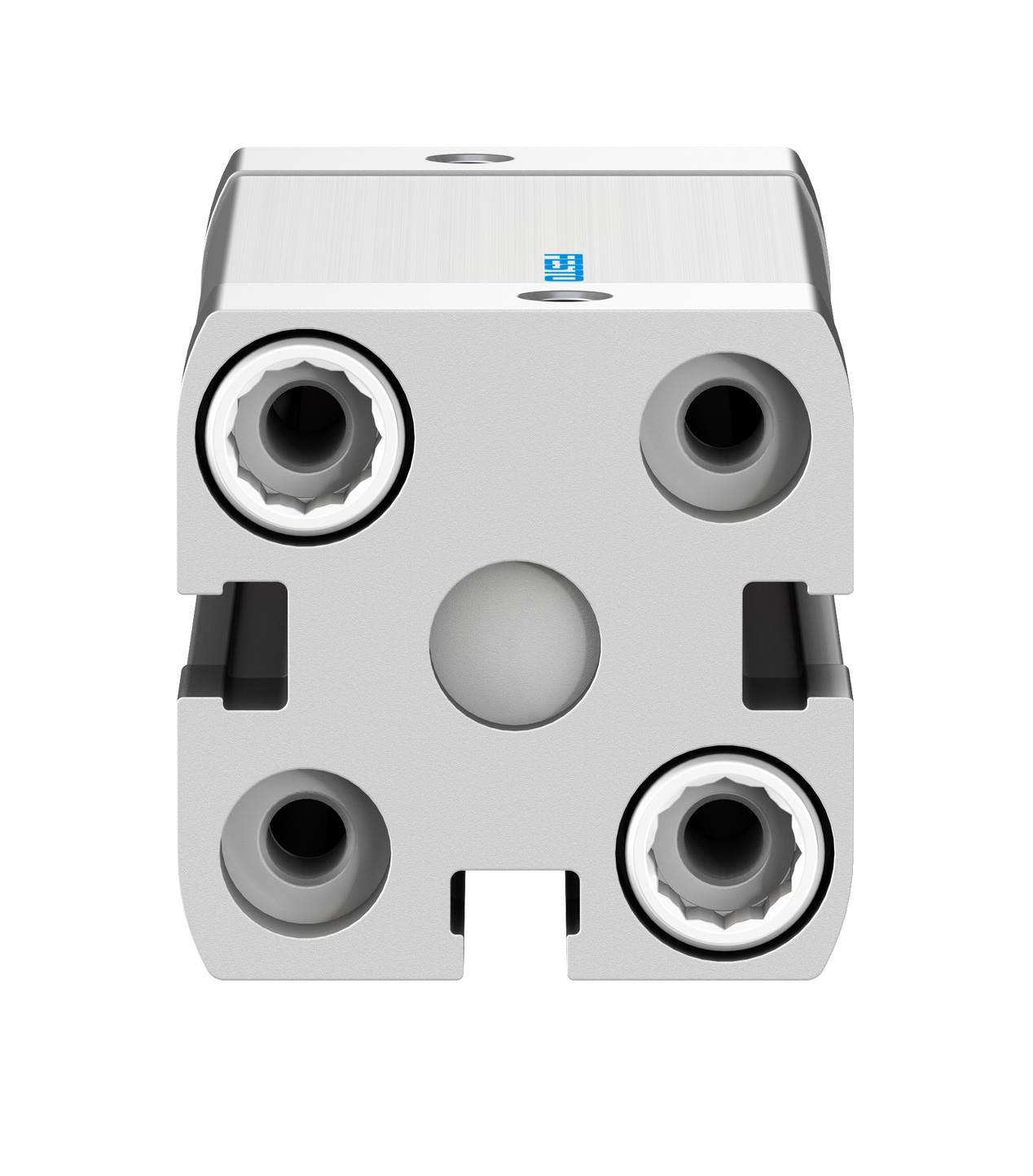

Festo Double Action Pneumatic Cylinder 20mm Bore, 40mm Stroke

Enrgtech Part No: ET16814961
|
Manufacturer Part No:
ADN-20-40-A-P-A
|
Manufacturer: Festo

ADN-20-40-A-P-A Festo Double Action Pneumatic Cylinder 20mm Bore, 40mm Stroke

Product Information

Cushioning Type:

Cushioning Rings

Stroke Length:

40mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

20 mm

Body Material:

Aluminium

Model Number:

536240

Height:

35.5mm

Width:

35.5 mm

Length:

82.5mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-20-40-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but controlled linear movement is still required. With a 20 mm bore and a 40 mm stroke, it is commonly used in compact automation systems, assembly equipment, and light industrial machinery. This cylinder is built for consistent motion rather than heavy force. It fits easily into confined layouts where standard cylinders would be too long or bulky.

Unmatched Advantages of Buying the Festo 536240 Double-Action Pneumatic Cylinder

The double-acting design allows controlled movement in both directions using compressed air. This makes positioning more predictable and repeatable compared to single-acting cylinders, especially in automated sequences.

Smooth extension and retraction.
Stable movement under normal operating pressure.
Reliable performance during repeated cycles.

Solid Pneumatic Cylinder for Tight Spaces

The compact body keeps the overall length short while still delivering a usable stroke. This makes installation easier in machines with tight mechanical layouts. The mounting interfaces are standard, allowing straightforward replacement or integration into existing systems.

Wide Application Range

This model is regularly found in:

Automated assembly lines
Pick-and-place mechanisms
Packaging and sorting equipment
Small actuating tasks in control systems
