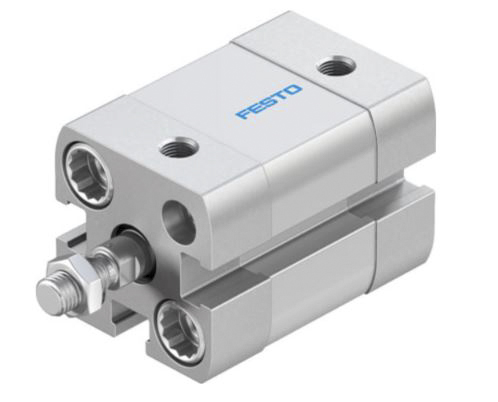

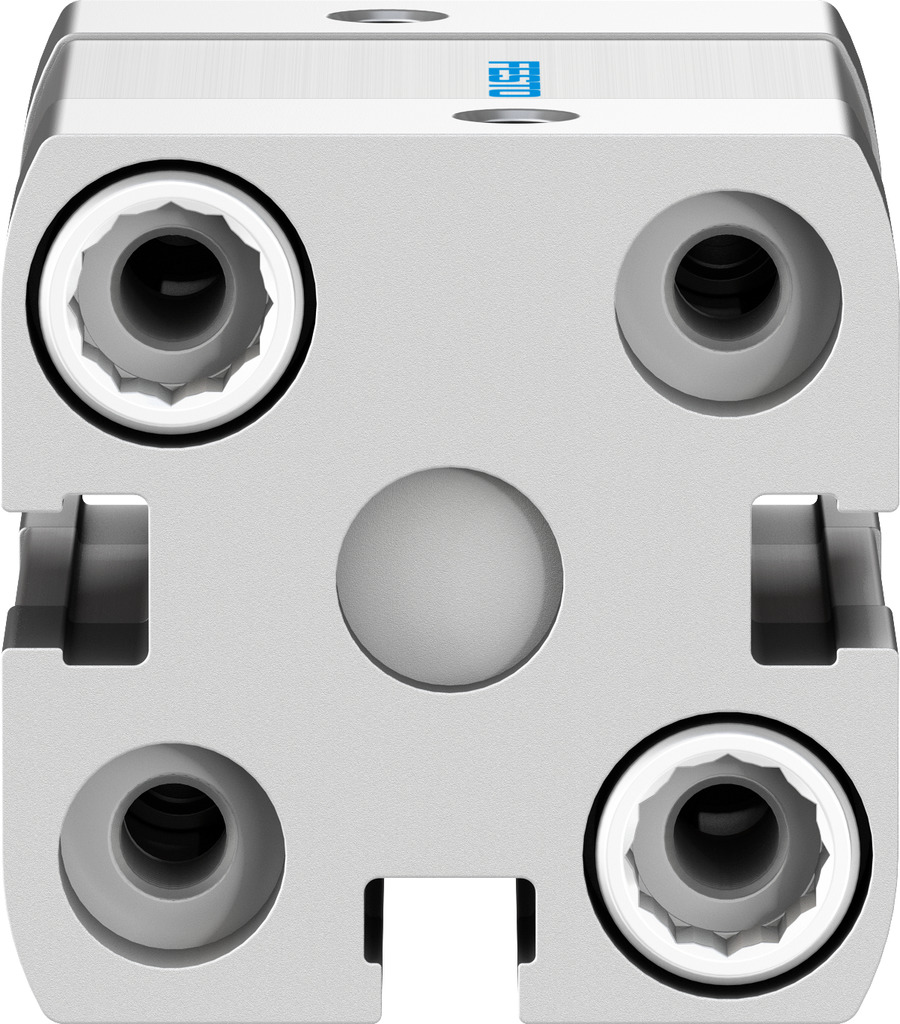

Festo Double Action Pneumatic Cylinder 20mm Bore, 20mm Stroke

Enrgtech Part No: ET16814958
|
Manufacturer Part No:
ADN-20-20-A-P-A
|
Manufacturer: Festo

ADN-20-20-A-P-A Festo Double Action Pneumatic Cylinder 20mm Bore, 20mm Stroke

Product Information

Cushioning Type:

Flexible Cushioning

Stroke Length:

20mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

20 mm

Body Material:

Aluminium

Model Number:

536237

Height:

35.5mm

Width:

35.5 mm

Length:

62.5mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-20-20-A-P-A is a compact, double-acting pneumatic cylinder designed for machines with limited space. With a 20 mm bore and a 20 mm stroke, it delivers controlled linear movement in short-travel applications without requiring a large mounting area. This cylinder is typically used in automation setups where reliability and repeatability matter more than long stroke length.

Core Capabilities of the Festo 536237 Double-Action Pneumatic Cylinder

The compact body allows the cylinder to fit into tight assemblies while still providing stable operation. It is built to handle continuous cycling in industrial environments without excessive wear.

20 mm piston bore.
20 mm stroke length.
Compact housing for space-saving installation.
Double-acting operation for controlled extension and retraction.

Why Buy It?

Being double-acting, the cylinder uses compressed air for both forward and return movement. This provides better control than single-acting designs and allows smoother motion during repeated cycles.

Typical Areas of Use

This compact cylinder is commonly found in:

Automated assembly machines
Pick-and-place systems
Packaging and labelling equipment
Light material handling setups
Conveyor and stop mechanisms

Datasheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

Brochure - Core Product Range(Technical Reference)

ADN-20-20-A-P-A Specification Sheet(Technical Reference)
