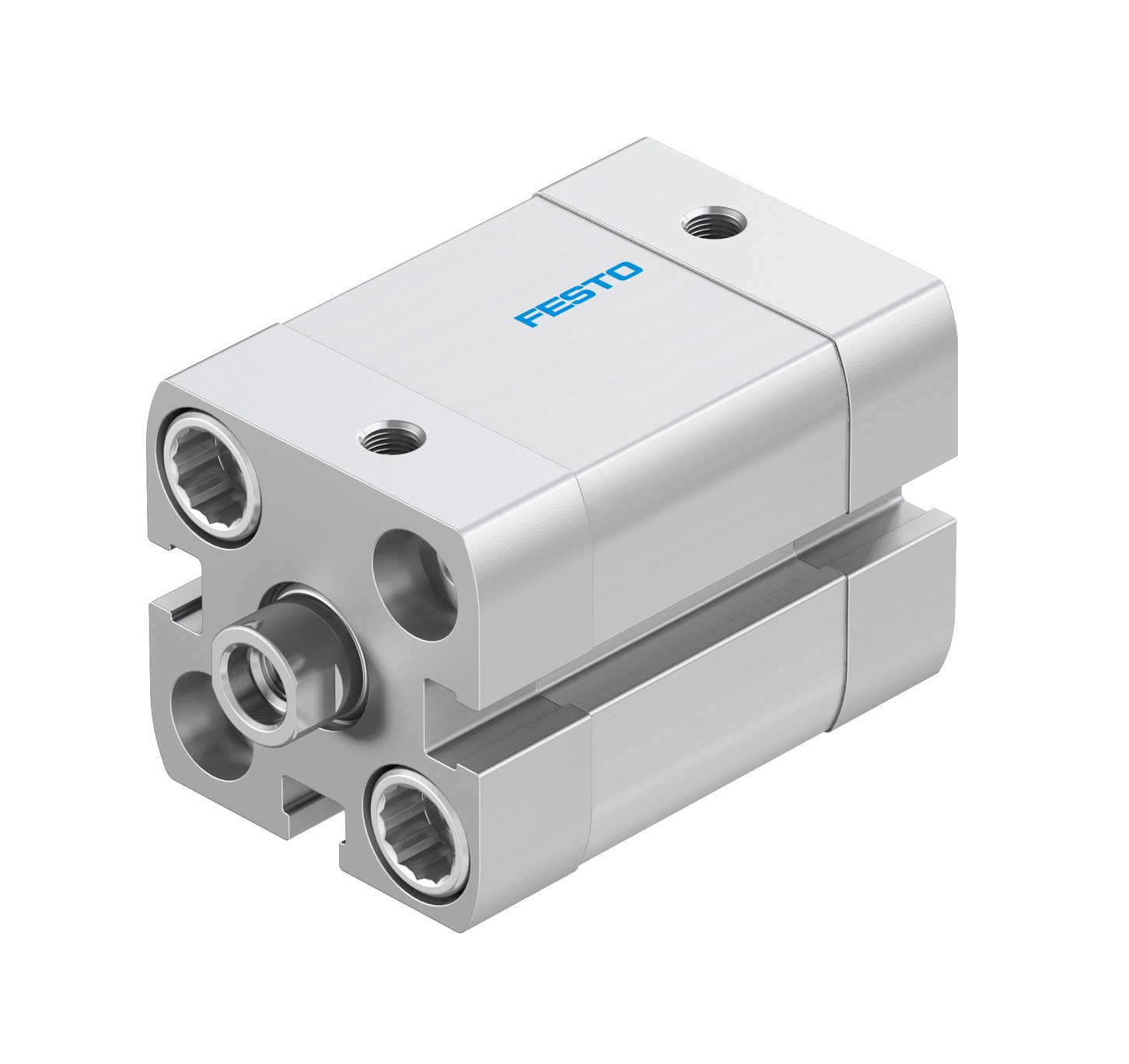

Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 15mm Stroke

Enrgtech Part No: ET16814957
|
Manufacturer Part No:
ADN-20-15-I-P-A
|
Manufacturer: Festo

ADN-20-15-I-P-A Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 15mm Stroke

Product Information

Port Connection:

ISO Standard:

21287

Cushioning Type:

Elastic

Dimensions:

35.5 x 35.5 x 57.5mm

VDMA Standard:

24364-B1/B2-L

Piston Rod Thread Gender:

Female

Model Number p:

536244

Stroke:

15mm

Pneumatic Connection:

Height:

35.5mm

Width:

35.5mm

Length:

57.5mm

Checking for live stock

The Festo ADN-20-15-I-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but controlled linear motion is still required. With a 20 mm bore and a short 15 mm stroke, it is commonly used in compact automation systems where full-size cylinders simply won’t fit. This cylinder is built for clean, repeatable movement in small assemblies rather than heavy-duty force applications.

Core Characteristics of the Festo 536244 Double-Action Pneumatic Cylinder

The ADN series is known for its short overall length and rigid construction. This model delivers controlled forward and return motion using compressed air on either side of the piston, giving better control than single-acting cylinders.

20 mm piston bore.
15 mm stroke length.
Compact body design.
Double-acting operation.
Easy to integrate into machines with limited mounting space.

Applicable Areas of the Product

This cylinder is often installed in automated equipment that requires short, precise movements rather than long travel.

Clamping and positioning tasks
Small pick-and-place mechanisms
Assembly and packaging machines
Light-duty industrial automation setups
