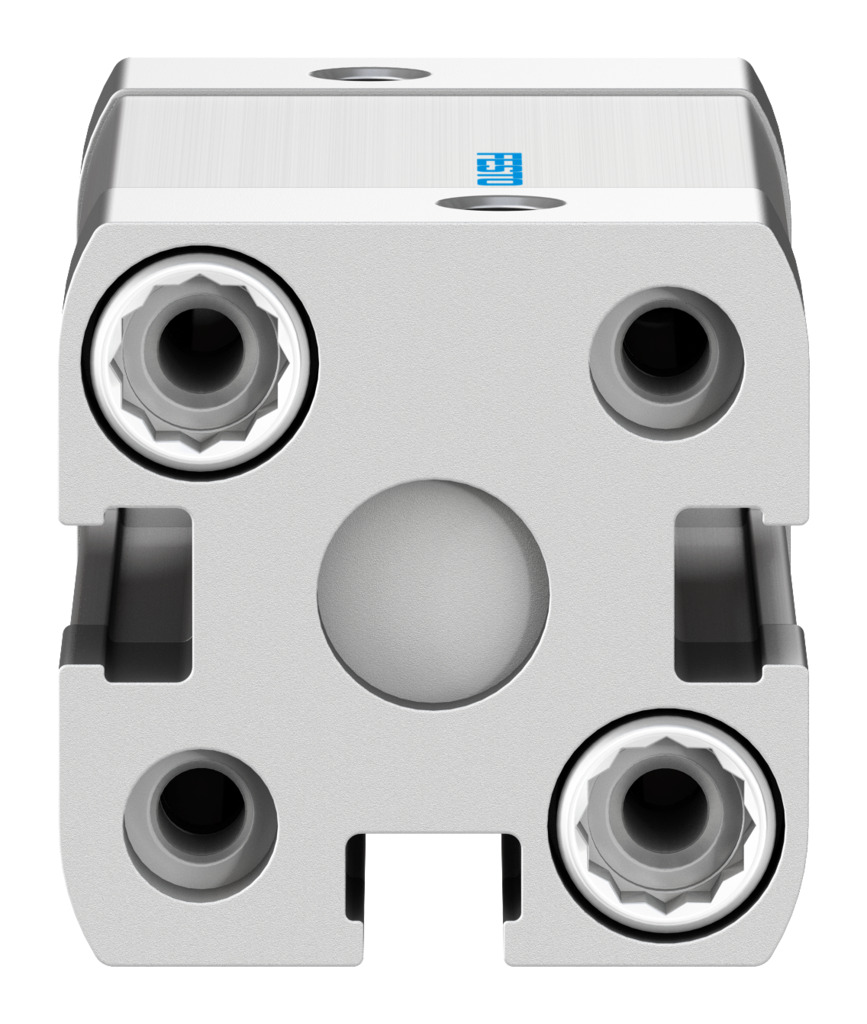

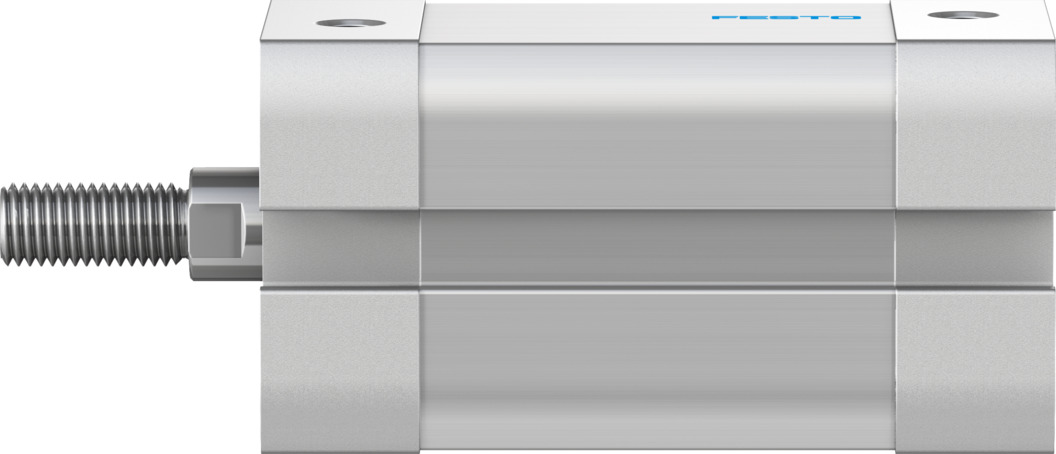

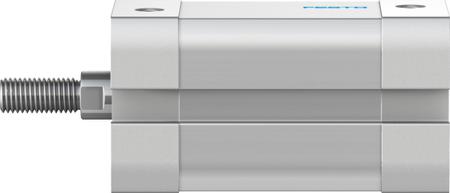

Festo Double Action Pneumatic Cylinder 16mm Bore, 20mm Stroke

Enrgtech Part No: ET16814949
|
Manufacturer Part No:
ADN-16-20-A-P-A
|
Manufacturer: Festo

ADN-16-20-A-P-A Festo Double Action Pneumatic Cylinder 16mm Bore, 20mm Stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

20mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

16 mm

Body Material:

Aluminium

Model Number:

536222

Height:

29mm

Width:

29 mm

Length:

59.7mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-16-20-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited and precision of movement is required. With a 16 mm bore and a 20 mm stroke, it is commonly used in small automation systems that require short linear motion with reliable repeatability. This cylinder is typically installed where standard cylinders are too long, but performance still matters.

Notable Advantages of Choosing the Festo 536222 Double-Action Pneumatic Cylinder

Being double-acting, air pressure is used for both extension and retraction. This provides better control than spring-return designs and ensures consistent movement in both directions.

Controlled forward and backward motion.
Stable operation under repeated cycles.
Predictable positioning in compact assemblies.
Compact body for limited installation depth.

Compact Design that Saves Space

The ADN series is explicitly built for tight installations. The short overall length allows it to fit into compact machines, pick-and-place units, and small handling systems without requiring a redesign of the layout.

Product Use Cases

This cylinder is typically found in:

Small automation and assembly machines
Clamping and positioning units
Sorting and guiding mechanisms
Packaging and light handling systems

Datasheet(Technical Reference)

ADN-16-20-A-P-A Specification Sheet(Technical Reference)

Brochure - Less Is More(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
