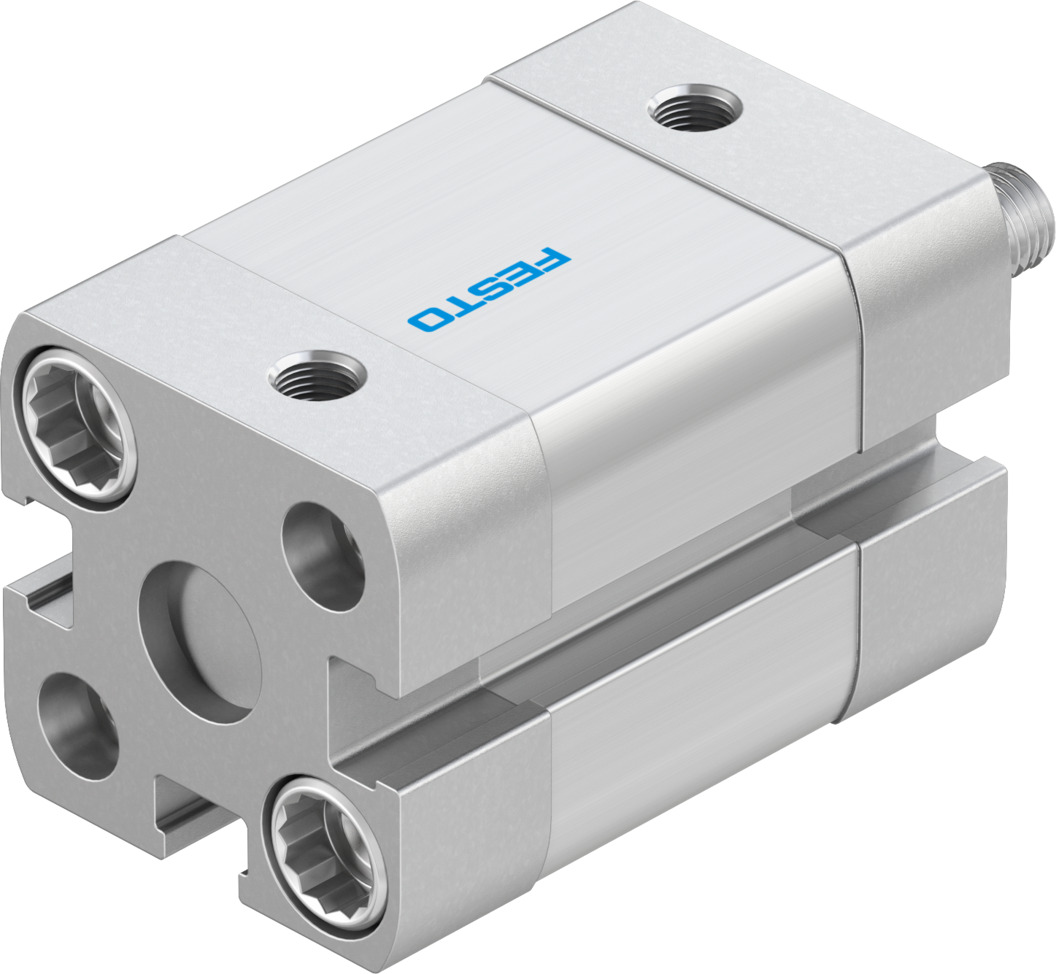

Festo Double-Action Pneumatic Cylinder 16mm Bore, 10mm Stroke

Enrgtech Part No: ET16814947
|
Manufacturer Part No:
ADN-16-10-A-P-A
|
Manufacturer: Festo

ADN-16-10-A-P-A Festo Double-Action Pneumatic Cylinder 16mm Bore, 10mm Stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

10mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

16 mm

Body Material:

Aluminium

Model Number:

536220

Height:

29mm

Width:

29 mm

Length:

49.7mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-16-10-A-P-A is a double-acting compact pneumatic cylinder designed for applications where space is limited and controlled linear motion is required. With a 16 mm bore and a 10 mm stroke, it is used for short, repeatable movements in automated systems rather than long travel applications. This cylinder is typically found in machinery where components need to be pushed, clamped, positioned, or indexed with accuracy and consistency.

Standout Features and Benefits of the Festo 536220 Double-Action Pneumatic Cylinder

The ADN series is known for its compact body, allowing installation in machines where standard cylinders simply won’t fit. The short stroke length keeps movement controlled and fast, reducing cycle time in automation setups.

16 mm bore size for light to medium force output.
10 mm stroke for short linear travel.
Compact housing for space-restricted installations.
Predictable motion in both directions.
Better positioning accuracy.
Reliable operation during continuous cycles.

Double-Acting Operation for Controlled Motion

Being a double-acting cylinder, air pressure is used for both extension and retraction. This provides better control than single-acting designs and allows consistent movement regardless of load direction.

Broad Application Range

The ADN-16-10-A-P-A is often used in:

Assembly and packaging machines
Pick-and-place mechanisms
Clamping and ejector systems
Small automation and handling units

Datasheet(Technical Reference)

Brochure - Less Is More(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

ADN-16-10-A-P-A Specification Sheet(Technical Reference)
