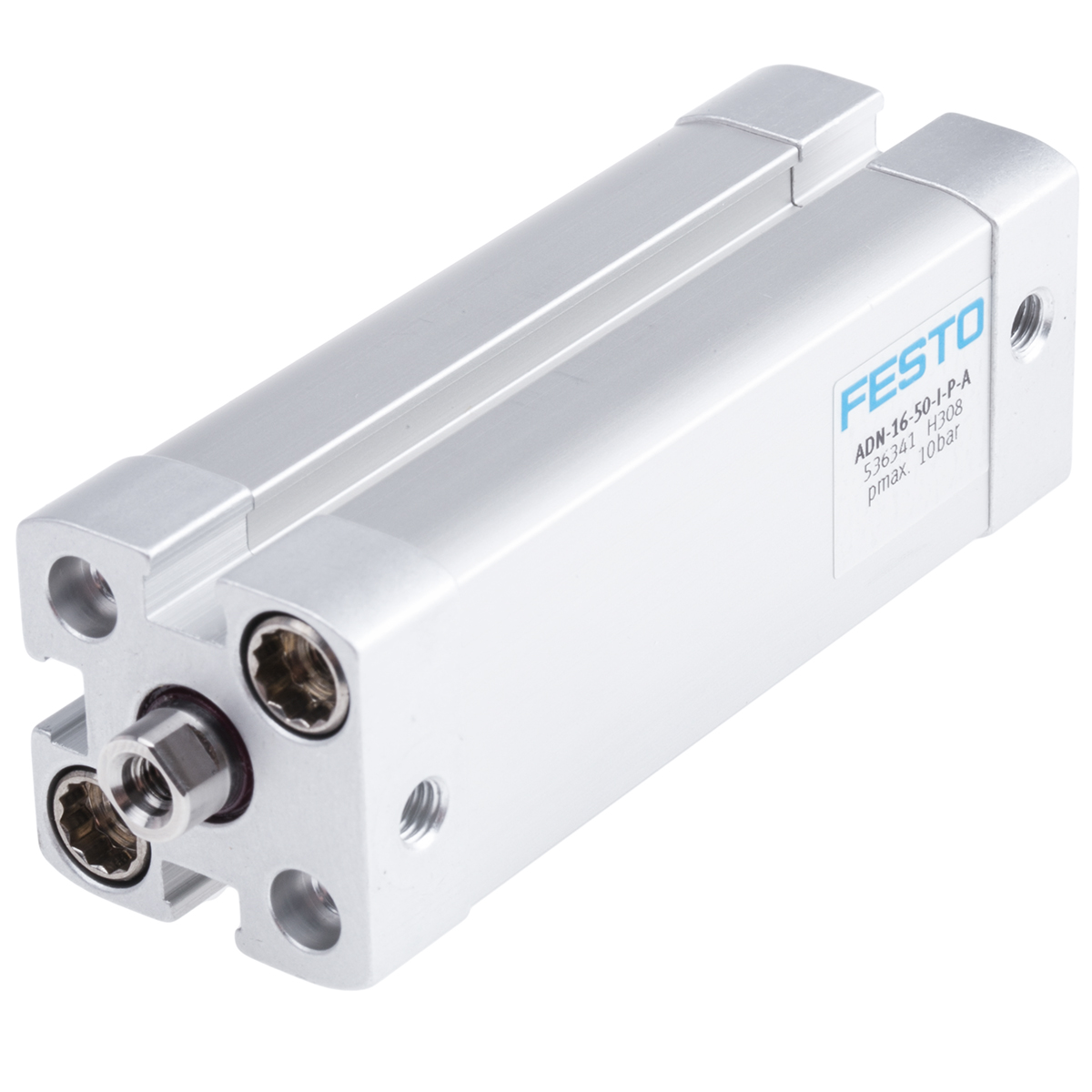

Festo Double Action Pneumatic Compact Cylinder 16mm Bore, 50mm stroke

Enrgtech Part No: ET14037138
|
Manufacturer Part No:
ADN-16-50-I-P-A
|
Manufacturer: Festo

ADN-16-50-I-P-A Festo Double Action Pneumatic Compact Cylinder 16mm Bore, 50mm stroke

Product Information

Port Connection:

ISO Standard:

ISO 21287

Cushioning Type:

Flexible Cushioning

Dimensions:

29 x 29 x 89.7mm

VDMA Standard:

VDMA 24364-B1/B2-L

Piston Rod Thread Gender:

Female

Model Number p:

536341

Stroke:

50mm

Pneumatic Connection:

Height:

29mm

Width:

29mm

Length:

89.7mm

Checking for live stock

The Festo ADN-16-50-I-P-A is a double-acting compact pneumatic cylinder designed for applications where space is limited but controlled linear movement is required. With a 16 mm bore and a 50 mm stroke, it delivers reliable push-and-pull motion utilising compressed air on both sides of the piston. This cylinder is typically used in automation systems where short strokes and consistent positioning are more important than high force output.

Notable Advantages of Choosing the Festo 536341 Double-Action Pneumatic Cylinder

The compact body design allows easy installation in tight machine layouts. It is built to handle repeated cycling without losing performance, making it suitable for continuous industrial use.

Compact housing for space-restricted installations.
Double-acting operation for controlled forward and return motion.
Standard mounting dimensions for easy replacement.
Designed for long service life under regular cycling.

Applications Across Different Settings

This cylinder converts compressed air into linear motion for tasks that require accurate positioning rather than heavy force. It is often used to move, clamp, push, or stop parts during automated processes.

Assembly and pick-and-place systems
Packaging and labelling machines
Light clamping or guiding operations
Small actuators in control panels or production lines

ADN-16-50-I-P-A Specification Sheet(Technical Reference)

Brochure - Core Product Range(Technical Reference)

Festo ADN/AEN(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
