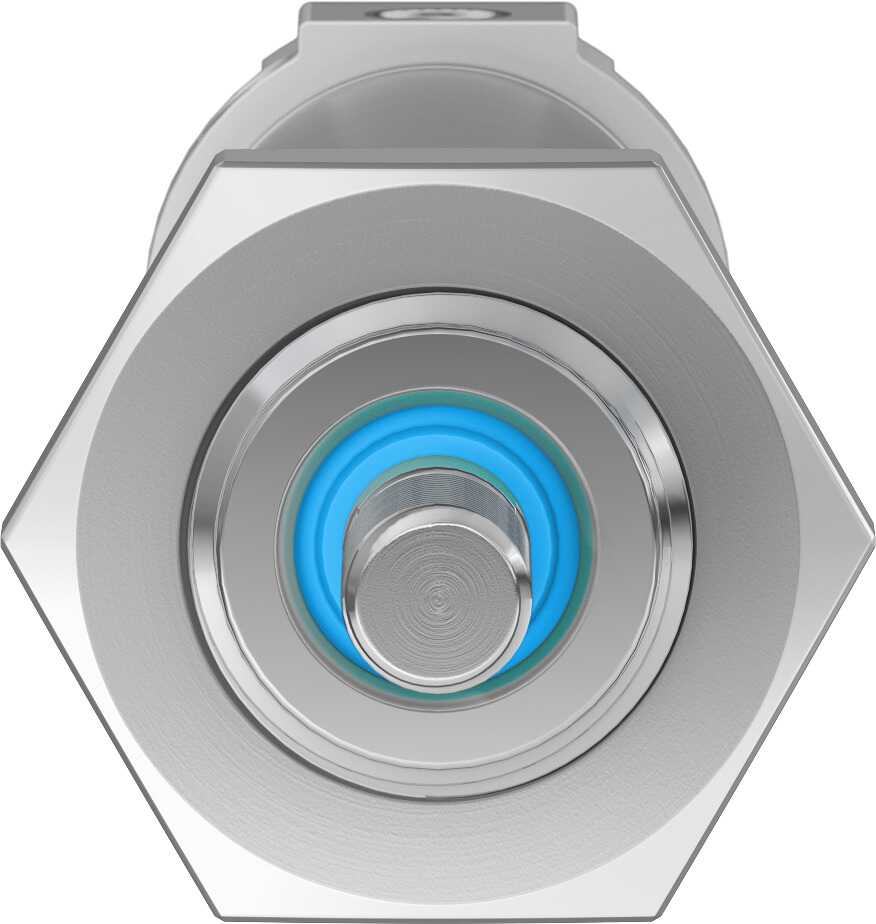

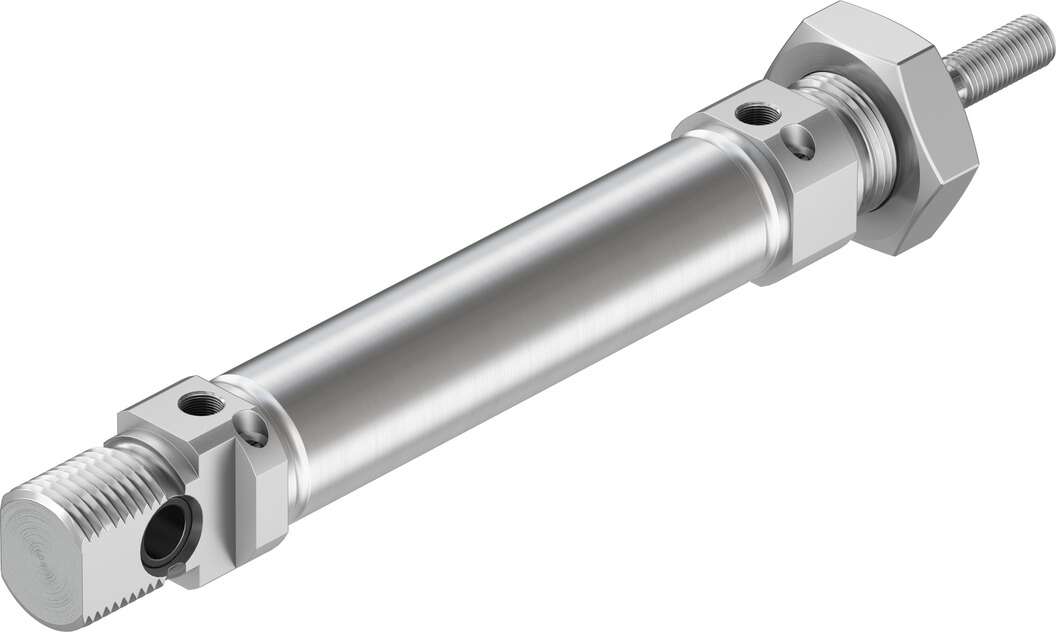

Festo DSNU-16-40-PPV-A, Double Action Pneumatic Roundline Cylinder

Enrgtech Part No: ET13928976
|
Manufacturer Part No:
DSNU-16-40-PPV-A
|
Manufacturer: Festo

DSNU-16-40-PPV-A Festo , Double Action Pneumatic Roundline Cylinder

Product Information

Cushioning Type:

Pneumatic

Stroke Length:

500mm

Piston Rod Thread Standard:

Metric

Piston Rod Gender:

Male/Female

Model Number:

19229

Action Type:

Double Acting

Length:

151mm

Standards/Approvals:

ATEX II 2G (gas), ISO 228-1, Germanischer Lloyd, CE marking (Explosion Protection Directive), ISO 6432, II 2D (dust), ISO 1179-1

Product Type:

Pneumatic Piston Rod Cylinder

Maximum Operating Temperature:

80°C

Mount Type:

Flange, Front, Swivel, Direct, Foot, Rear

Checking for live stock

The Festo DSNU-16-40-PPV-A is a double-acting pneumatic piston rod cylinder used for controlled linear movement in automation systems. It is designed for applications where space is limited but consistent, repeatable motion is required. With a 16 mm bore and 40 mm stroke, this cylinder fits well into compact machines and assemblies. It operates using compressed air for both extension and retraction, providing better control than single-acting cylinders.

Exceptional Advantages of Investing in the Festo 19229 Double-Action Pneumatic Piston Rod Cylinder

This cylinder converts air pressure into straight-line movement. Because it is double-acting, force is applied in both directions, making it suitable for positioning, pushing, clamping, or guiding tasks where accuracy and repeatability matter.

Controlled forward and return movement.
Stable motion during continuous cycling.
Suitable for automated sequences.
Compact round-body construction.
Double-acting pneumatic operation.
Cushioning at end positions (PPV) to reduce impact.
Designed for long service life.

Compact Pneumatic Cylinder for Controlled Linear Motion

The DSNU series uses a slim, round body design that saves installation space. The piston rod is guided to reduce side-load impact, helping maintain smooth operation over time. The cylinder is built for standard industrial air systems and typical factory environments.

Typical Uses in Automation & Machinery

This cylinder is typically found in:

Assembly and pick-and-place units
Packaging and sorting machines
Light clamping or ejector systems
Conveyor and handling equipment

DSNU-16-40-PPV-A Specification Sheet(Technical Reference)

Instruction Sheet - DSNU(-S) Round Cylinder(Technical Reference)

Brochure - Simply Part of The Solution(Technical Reference)

Festo DSNU/DSNUP/DSN/ESNU/ESN(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
