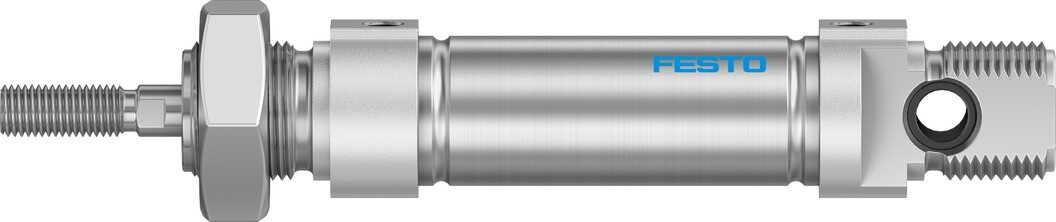

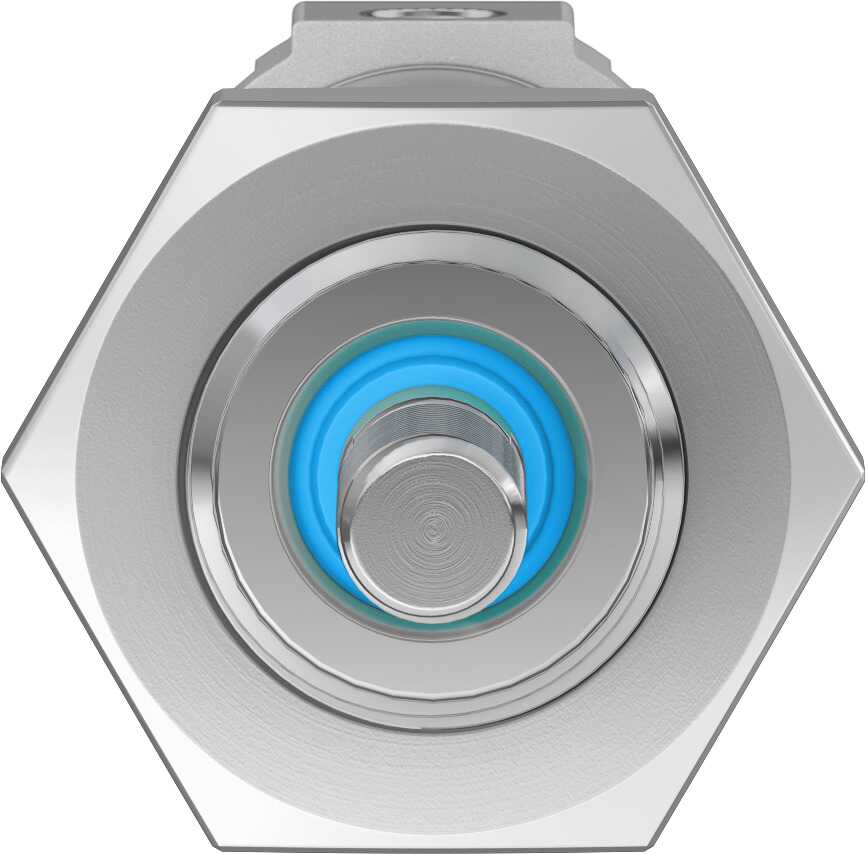

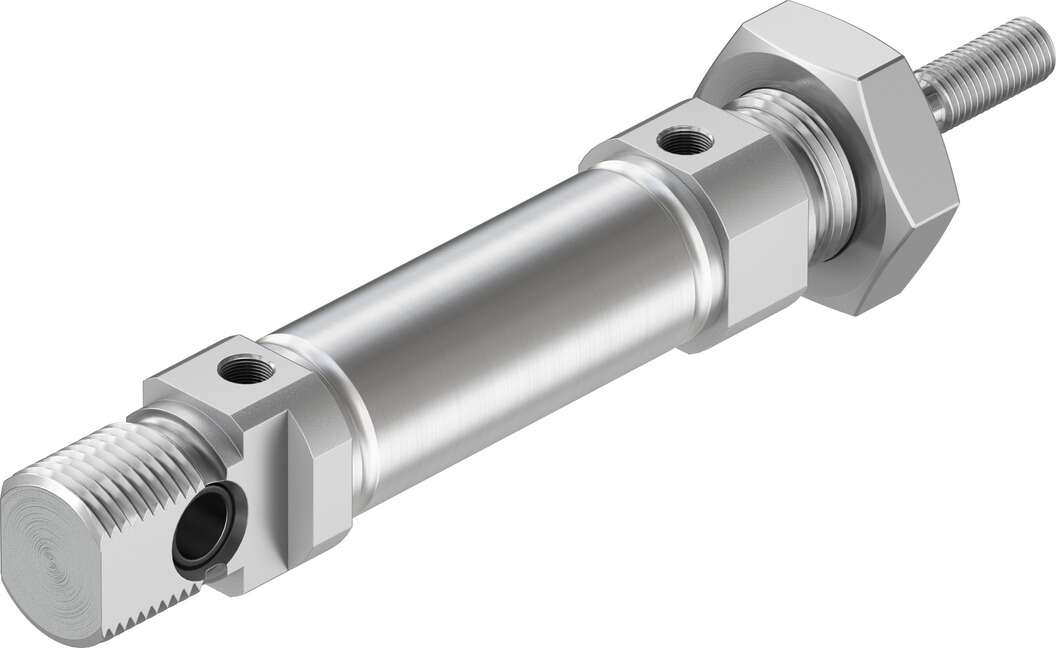

Festo DSNU-16-10-P-A, Double Action Pneumatic Roundline Cylinder

Enrgtech Part No: ET13928974
|
Manufacturer Part No:
DSNU-16-10-P-A
|
Manufacturer: Festo

DSNU-16-10-P-A Festo , Double Action Pneumatic Roundline Cylinder

Product Information

Maximum Piston Speed:

100mm/s

Cushioning Type:

Elastic

Stroke Length:

500mm

Piston Rod Thread Standard:

Metric

Piston Rod Gender:

Male/Female

Model Number:

19198

Length:

121mm

Standards/Approvals:

CE marking to EU Explosion Protection Directive (ATEX), ISO 6432, ATEX II 2G/II 2D, Germanischer Lloyd, RoHS

Product Type:

Pneumatic Cylinder

Maximum Operating Temperature:

80°C

Mount Type:

Rear, Flange, Direct, Front, Foot, Swivel

Checking for live stock

The Festo DSNU-16-10-P-A is a compact double-acting pneumatic roundline cylinder used for short, controlled linear movements. It operates using compressed air on both extension and retraction, giving better control than single-acting cylinders. With a 16 mm bore and a 10 mm stroke, this model is typically used in tight spaces where precise, repeatable motion is required. This cylinder is commonly found in automated machinery, assembly systems, and industrial handling equipment where reliability matters more than complexity.

Core Capabilities of the Festo 19198 Double-Action Pneumatic Cylinder

Because it is double-acting, air pressure moves the piston in both directions. This allows smoother motion, more consistent force, and better positioning than spring-return designs.

Controlled movement in both directions.
No reliance on internal springs.
Predictable speed and force.
Better repeatability in automated systems.
16 mm piston diameter.
10 mm stroke length.
Round aluminium body.
Front and rear air ports.

Typical Environments

This cylinder is widely used in:

Industrial automation systems
Assembly and packaging machines
Light clamping and positioning tasks
Conveyor and sorting equipment
