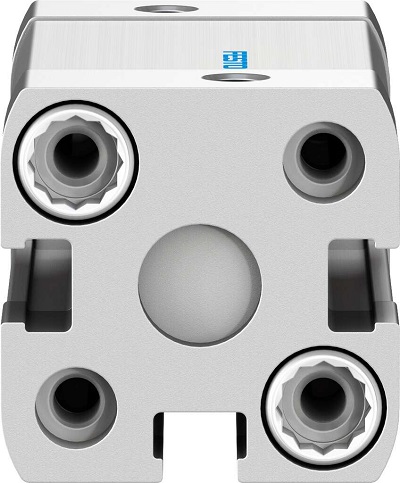

Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 25mm stroke

Enrgtech Part No: ET13928930
|
Manufacturer Part No:
ADN-20-25-I-P-A
|
Manufacturer: Festo

ADN-20-25-I-P-A Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 25mm stroke

Product Information

Port Connection:

ISO Standard:

ISO 21287

Cushioning Type:

Elastic

Dimensions:

35.5 x 35.5 x 67.5mm

Weight:

131g

VDMA Standard:

VDMA 24364-B1/B2-L

Piston Rod Thread Gender:

Female

Model Number p:

536246

Stroke:

25mm

Pneumatic Connection:

Height:

35.5mm

Width:

35.5mm

Checking for live stock

The Festo ADN-20-25-I-P-A is a compact, double-acting pneumatic cylinder designed for applications where space is limited but reliable linear motion is required. With a 20 mm bore and a 25 mm stroke, it is commonly used in automation systems that require short, controlled movements. This cylinder follows the ISO compact cylinder design, which makes it easy to integrate into existing pneumatic setups without redesigning mounting or alignment.

How It Benefits Users

The double-acting design allows controlled movement in both extension and retraction. This provides better control than single-acting cylinders, especially in automated processes that require consistent force and positioning.

Smooth linear motion.
Reliable operation at standard industrial air pressures.
Suitable for frequent cycling.
20 mm piston bore.
25 mm stroke length.
Compact housing for close-mounted assemblies.
Standard pneumatic port connections.

Design and Construction

The compact body makes this cylinder ideal for machines with restricted installation space. Despite its small size, the construction is solid and designed for long service life. The piston rod and seals are made to handle repetitive motion while maintaining air tightness.

Versatile Uses of the Festo 536246 Double-Action Pneumatic Cylinder

This cylinder is typically found in:

Packaging and labelling machines
Pick-and-place units
Clamping and positioning systems
Assembly and sorting equipment
