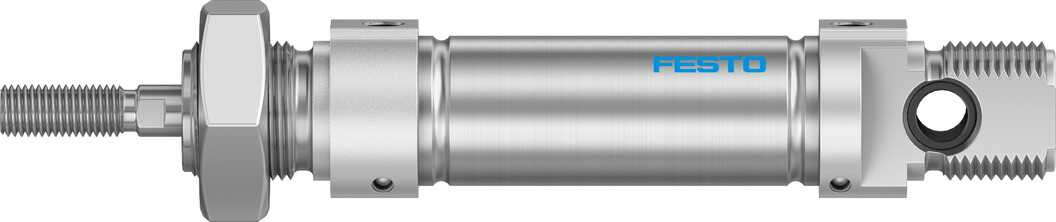

Festo DSNU-16-10-PPV-A, Pneumatic Cylinder

Enrgtech Part No: ET13878114
|
Manufacturer Part No:
DSNU-16-10-PPV-A
|
Manufacturer: Festo

DSNU-16-10-PPV-A Festo , Pneumatic Cylinder

Product Information

Cushioning Type:

Air Cushion

Piston Rod Thread Standard:

Metric

Piston Rod Gender:

Male/Female

Model Number:

1908266

Length:

121mm

Standards/Approvals:

ATEX II 2G, ISO 1179-1, Germanischer Lloyd, ATEX II 2D, CE marking to EU Explosion Protection Directive (ATEX), ISO 228-1, ISO 6432

Product Type:

Pneumatic Cylinder

Maximum Operating Temperature:

80°C

Mount Type:

Front, Flange, Direct, Rear, Foot, Swivel

Checking for live stock

The Festo DSNU-16-10-PPV-A is a small, round-body pneumatic cylinder designed for short-stroke linear movement in automation systems. With a 16 mm piston diameter and a 10 mm stroke, it is typically used where space is limited and precise, repeatable motion is required. This cylinder operates on compressed air and is generally installed in machinery that requires a simple push or pull motion without adding complexity to the system.

Core Capabilities of the Festo 1908266 Pneumatic Cylinder

The cylinder body is built with a stainless steel tube and aluminium end caps, providing good resistance to wear and corrosion in everyday industrial environments. Its round design allows easy mounting in tight layouts and clean integration into existing pneumatic setups.

Compact round housing.
Short stroke for precise movement.
Designed for continuous operation.
Suitable for panel-mounted or inline systems.
Running at higher cycle speeds.
Reducing noise and vibration.
Extending the system's service life.

Built-In Cushioning for Smooth Operation

The PPV-A variant includes adjustable pneumatic cushioning at both ends of the stroke. This helps reduce impact when the piston reaches its end positions, protecting both the cylinder and the connected components.

Usage Scenarios of the Cylinder

The DSNU-16-10-PPV-A is typically found in:

Assembly and packaging machines
Pick-and-place units
Small clamping or positioning mechanisms
Light automation and control systems

DSNU-16-10-PPV-A Specification Sheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

Festo DSNU/DSNUP/DSN/ESNU/ESN(Technical Reference)
