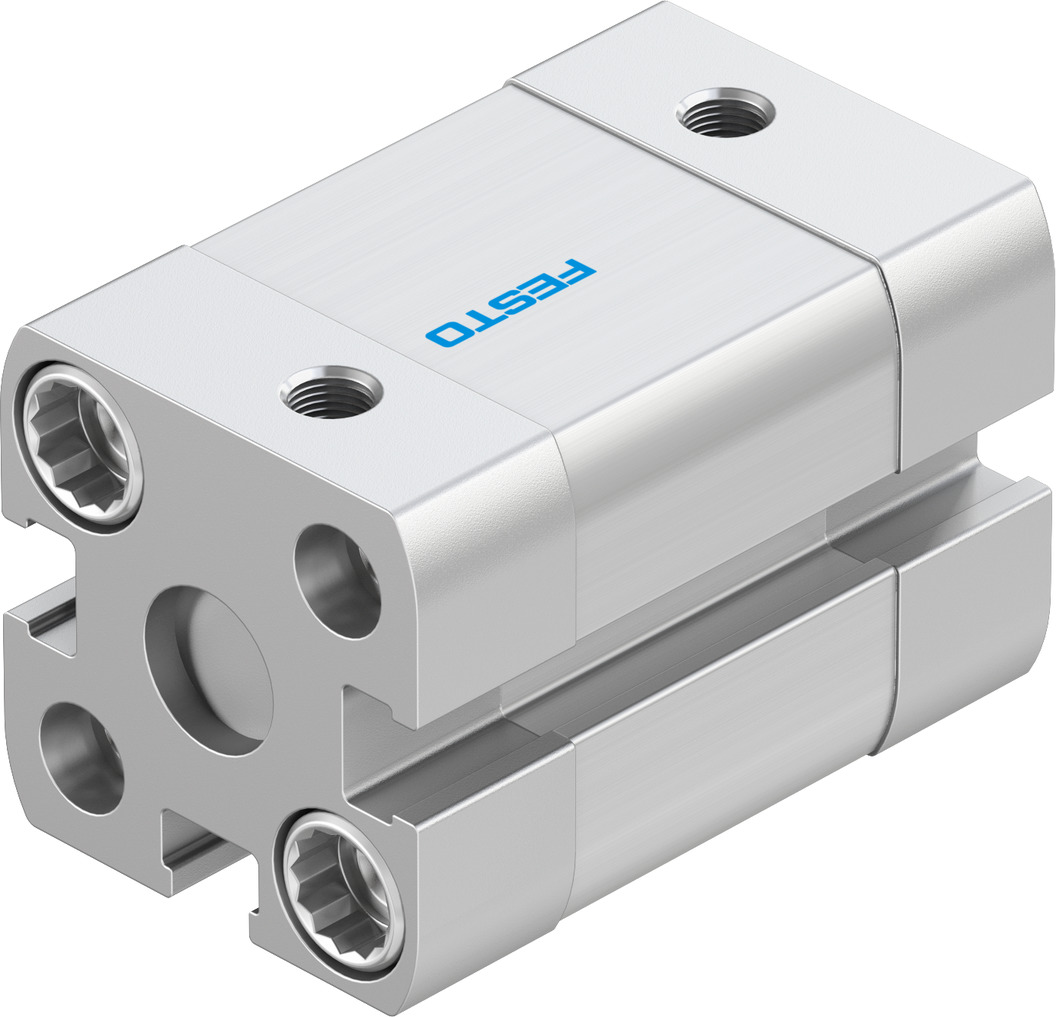

Festo Double Action Pneumatic Compact Cylinder 16mm Bore, 10mm stroke

Enrgtech Part No: ET13804879
|
Manufacturer Part No:
ADN-16-10-I-P-A
|
Manufacturer: Festo

ADN-16-10-I-P-A Festo Double Action Pneumatic Compact Cylinder 16mm Bore, 10mm stroke

Product Information

Port Connection:

ISO Standard:

ISO 21287

Cushioning Type:

Cushioning Rings

Dimensions:

29 x 29 x 49.7mm

Weight:

93g

VDMA Standard:

VDMA24364

Piston Rod Thread Gender:

Female

Model Number p:

536227

Stroke:

10mm

Pneumatic Connection:

Height:

29mm

Width:

29mm

Checking for live stock

The Festo ADN-16-10-I-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited and controlled linear motion is required. With a 16 mm bore and a 10 mm stroke, it is commonly used in small automation tasks that need precise positioning over short distances. This cylinder is typically installed in machinery where standard cylinders are too long. Its compact body allows it to fit easily into tight assemblies without sacrificing performance.

Key Performance Benefits of Buying the Festo 536227 Double-Action Pneumatic Cylinder

Being double-acting, the cylinder uses compressed air for both extension and retraction. This provides better control than spring-return designs and makes it suitable for repeatable, high-cycle operations.

Air-driven movement in both directions.
Short stroke for fast response.
Consistent motion under load.
Compact form factor.
Smooth piston movement.
Designed for long service life.

Compact Design with Reliable Construction

The ADN series is built for durability in industrial environments. The short overall length helps reduce machine size and improve layout flexibility. The cylinder body and internal components are designed to operate continuously without frequent adjustment.

Versatile Uses in Automation Systems

This cylinder is typically found in:

Pick-and-place units
Clamping and positioning mechanisms
Small assembly stations
Packaging and sorting equipment
