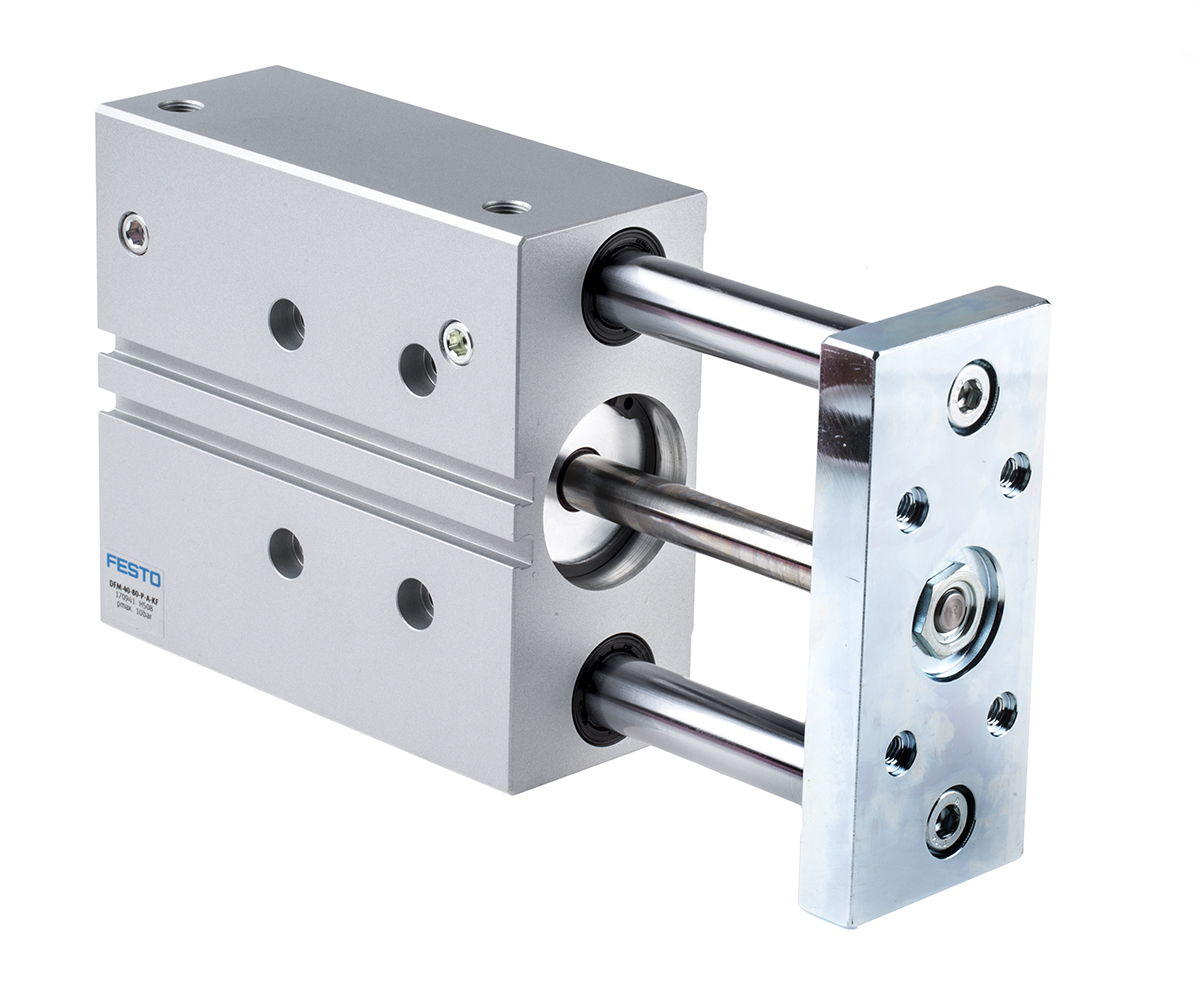

Festo DFM-40-80-P-A-KF, Pneumatic Guided Cylinder

Enrgtech Part No: ET14085796
|
Manufacturer Part No:
DFM-40-80-P-A-KF
|
Manufacturer: Festo

DFM-40-80-P-A-KF Festo , Pneumatic Guided Cylinder

Product Information

Cushioning Type:

Elastomer

Dimensions:

179 x 120 x 54mm

Weight:

2.9kg

Model Number p:

170941

Stroke:

80mm

Height:

54mm

Width:

120mm

Length:

179mm

Manufacturer Series:

DFM

Action:

Double

Bore:

40mm

Maximum Operating Pressure:

10 bar

Checking for live stock

The Festo DFM-40-80-P-A-KF is a double-acting pneumatic-guided cylinder designed for applications requiring straight, controlled movement. It is generally used when standard cylinders are not stable enough on their own. The integrated guide rods prevent rotation and side movement, making the motion more accurate and repeatable. This unit is used in automation setups where loads need to move smoothly over a short stroke without twisting or misalignment.

Unparalleled Benefits of Buying the Festo 170941 Pneumatic Guided Cylinder Double Acting

The cylinder operates with compressed air on both sides of the piston, allowing controlled extension and retraction. The guided design keeps the piston aligned during movement, even under side loads.

Better stability than a standard pneumatic cylinder.
Reduced wear caused by off-centre loads.
More consistent positioning over repeated cycles.
Guided rod design to prevent rotation.
Solid construction for long service life.
Compact form for tight machine layouts.

Build and Mechanical Design

With a 40 mm piston diameter and an 80 mm stroke length, this model fits well into compact automation frames. The rigid housing and guide rods are built to handle continuous industrial operation without flexing or drifting over time.

Product Use Cases

This guided cylinder is typically found in:

Pick-and-place units
Assembly and positioning stations
Packaging and labelling machines
Light material handling systems
