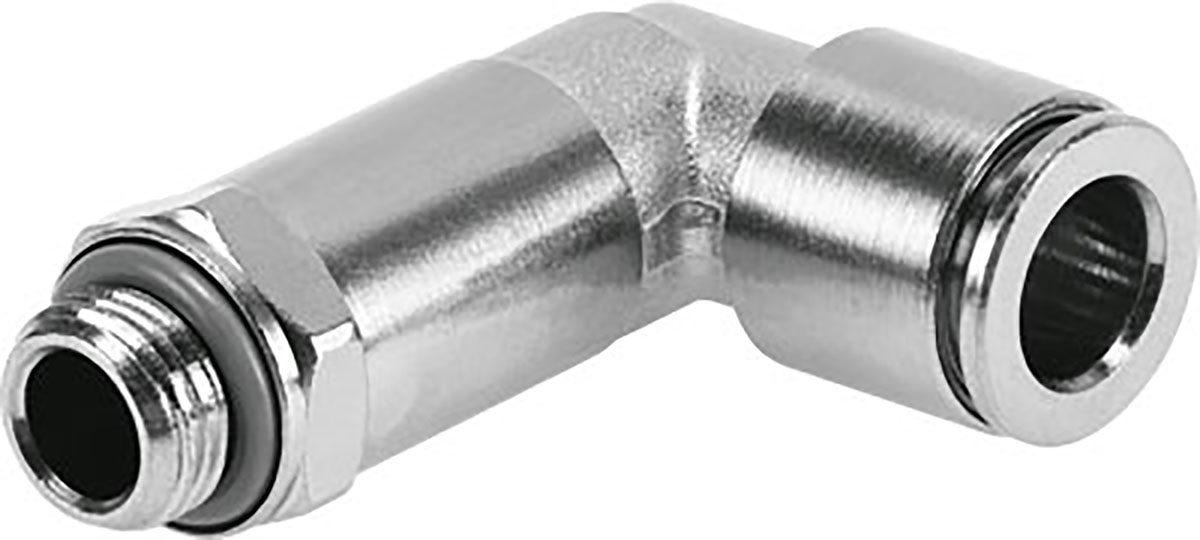

Festo Pneumatic Elbow Threaded-to-Tube Adaptor, 1/8in Thread 8mm Tube Connection

Enrgtech Part No: ET16815396
|
Manufacturer Part No:
NPQH-LL-G18-Q8-P10
|
Manufacturer: Festo

NPQH-LL-G18-Q8-P10 Festo Pneumatic Elbow Threaded-to-Tube Adaptor, 1/8in Thread 8mm Tube Connection

Product Information

Maximum Operating Pressure:

20 bar

Connector A:

G 1/8 Male

Angle:

90°

Standards Met:

ANSI/NSF 51, FDA 21 CFR 177.1595, FDA 21 CFR 177.2600, NSF H1 Reg. No. 128787

Mounting Type:

Inline

Connector B:

Push In 8 mm

Thread Material:

Brass

Food Grade:

Yes

Model Number p:

578265

Threaded Connection:

G 1/8 Male

Connection Style:

Threaded-to-Tube

Body Material:

Brass

Checking for live stock

The Festo NPQH-LL-G18-Q8-P10 is a right-angle pneumatic adaptor that connects an 8 mm tube to a 1/8-inch threaded port. It is designed for tight installation spaces where straight fittings are not practical. The elbow shape allows the air line to turn cleanly without kinking the tube or stressing the connection. This fitting is commonly used in control cabinets, compact pneumatic assemblies, and machine frames where space and routing matter.

Special Features of the Festo 578265 Pneumatic Elbow Threaded-to-Tube Adaptor

One side of the adaptor has a threaded male connection that screws directly into valves, manifolds, or pneumatic components. The other side accepts an 8 mm tube using a push-in connection, allowing quick installation without tools.

1/8-inch threaded connection for ports.
8 mm push-in tube connection.
Elbow design for right-angle routing.
Push-in mechanism provides a secure seal.

Broad Range Application

It is used wherever compressed air lines need to be turned at a right angle without sacrificing reliability.

Pneumatic control panels
Automation and assembly machines
Valve terminals and manifolds
Pick-and-place and motion systems

Datasheet(Technical Reference)

NPQH-LL-G18-Q8-P10 Specification Sheet(Technical Reference)
