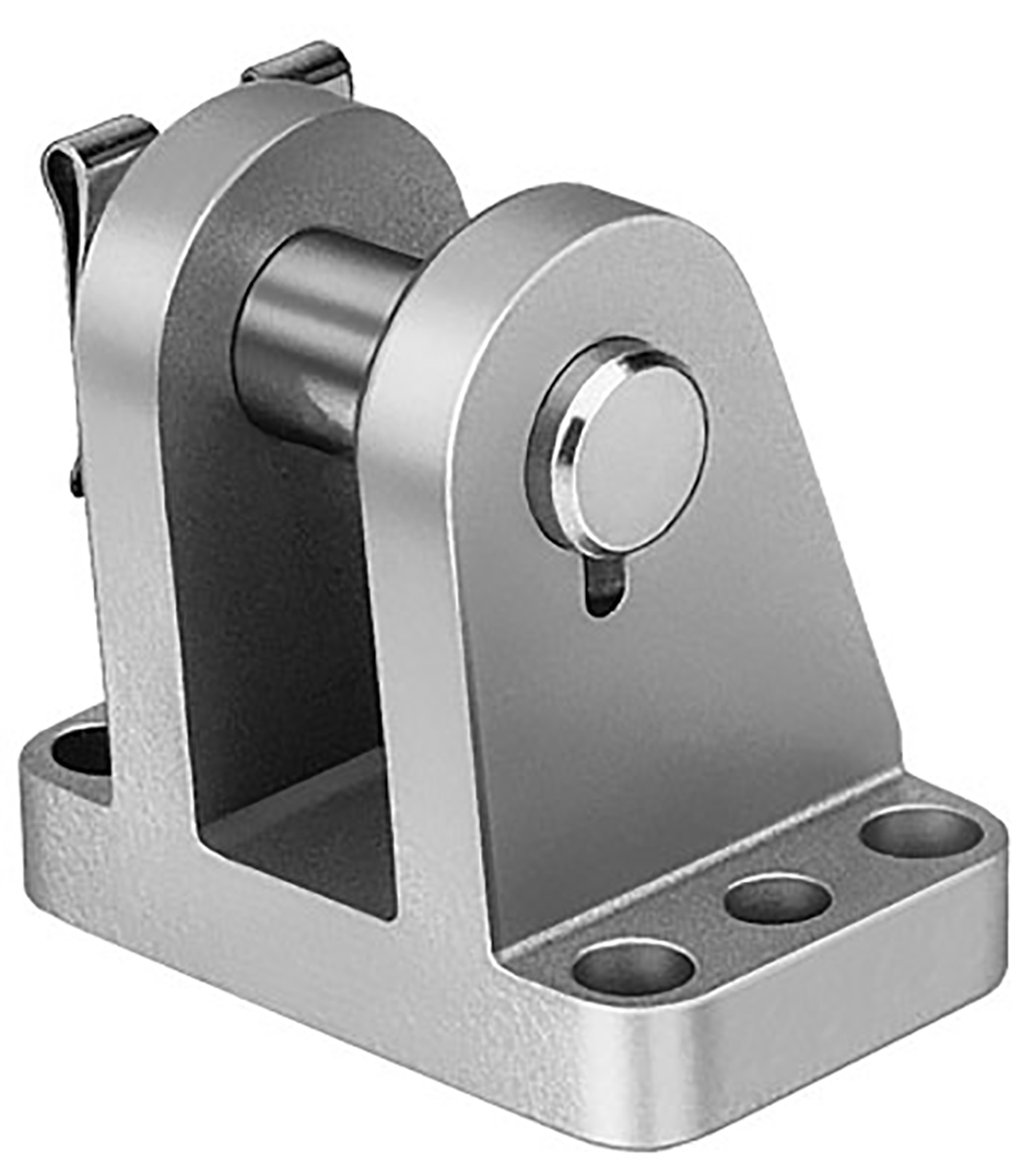

Festo LBG-63, Mounting Foot fo ADN, ADNP, AEN, DNC, DNG &, DNGU Cylinders

The Festo LBG-63 is a mounting foot used to support and fix pneumatic cylinders in a stable working position. It is designed to hold the cylinder body securely when side mounting is required, helping prevent movement, vibration, or misalignment during operation. This component is purely mechanical. It does not affect cylinder performance but plays a vital role in keeping the installation solid and reliable over time.

Unparalleled Benefits of the Festo 31764 Foot for ADN, ADNP, AEN, DNC, DNG & DNGU Cylinder

The LBG-63 foot provides a fixed base for cylinders mounted to machine frames, profiles, or flat surfaces. In practical setups, it helps reduce stress on mounting points and improves overall system stability.

• Supports side-mounted cylinders.
• Keeps the cylinder aligned during motion.
• Reduces mechanical strain on fittings.

Compatible Cylinder Types

This mounting foot is explicitly designed for use with Festo cylinders measuring 63 mm. It fits directly without modification when used with compatible models.

• ADN Cylinder
• ADNP Cylinder
• AEN Cylinder
• DNC Cylinder
• DNG Cylinder
• DNGU Cylinder

Applicable Areas of the Product

The LBG-63 is typically used in industrial automation systems where cylinders are mounted sideways rather than front- or rear-fixed. You will often find it in:

• Assembly lines
• Packaging machines
• Material handling systems
• Pneumatic automation frames

For more information please check the datasheets.
