Allen Bradley Cable for use with MicroLogix Series

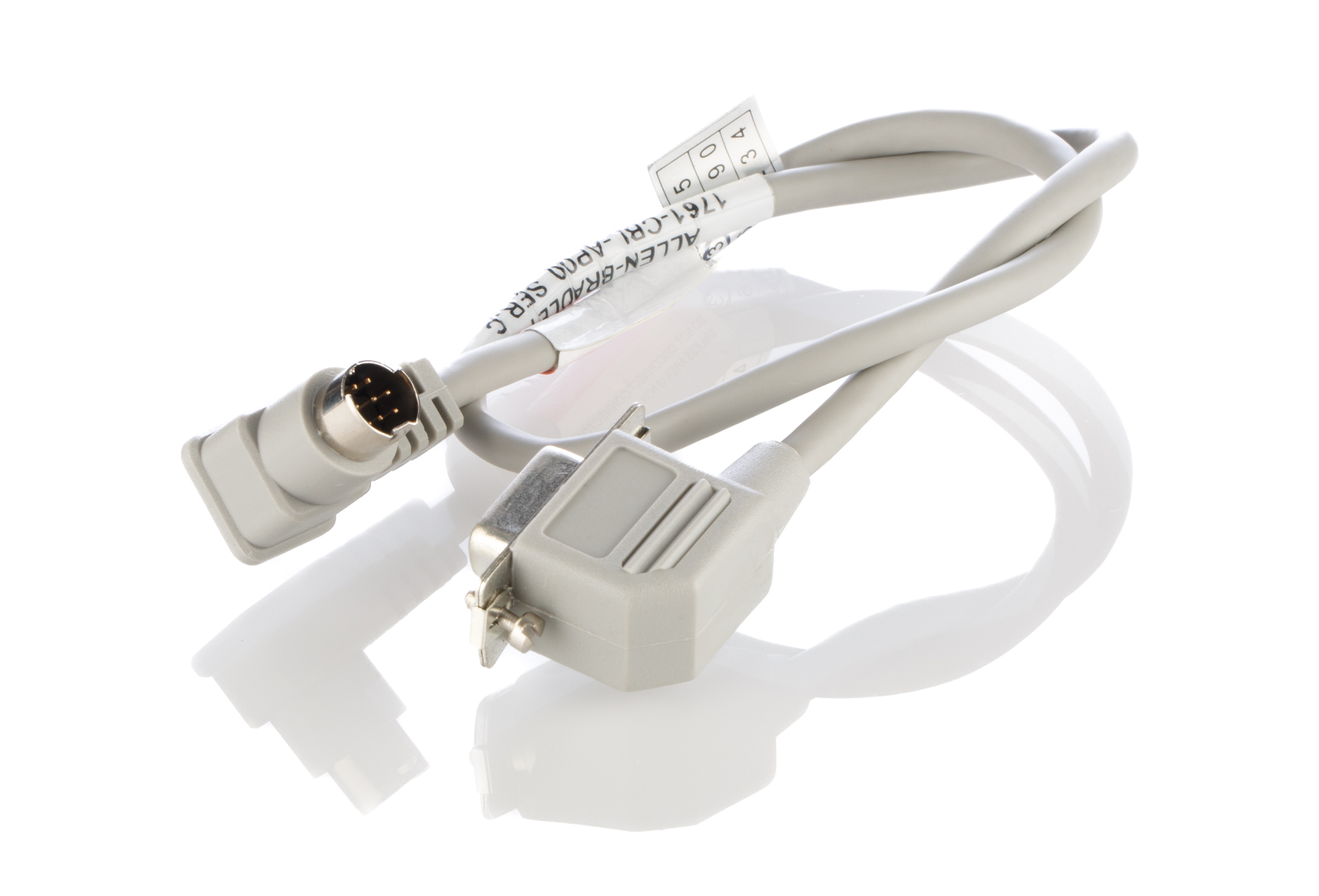

The Allen Bradley 1761-CBL-AP00 is a specialised communication and programming cable designed to provide a high-speed, reliable link between MicroLogix series PLCs and external hardware. Featuring an 8-pin Mini DIN connector on one end and a 9-pin D-shell (RS-232) on the other, this 0.5-meter cable is essential for configuring, troubleshooting, and programming MicroLogix 1000, 1200, and 1500 controllers. Its compact design and durable construction ensure seamless data transmission in demanding industrial environments.

Reasons You Should Use the Allen-Bradley 1761-CBL-AP00 PLC Cable

This genuine PLC cable guarantees 100% compatibility and high signal integrity for critical PLC programming tasks. Its robust shielding prevents data loss from electromagnetic interference.

• Reliable direct PC-to-PLC connection.
• Compact length reduces clutter in control panels.
• Durable moulded strain relief prevents cable fraying.
• Standardised RS-232 interface for universal tool compatibility.

Core Performance Features & Key Uses of Allen Bradley PLC Cable

Performance Highlights:

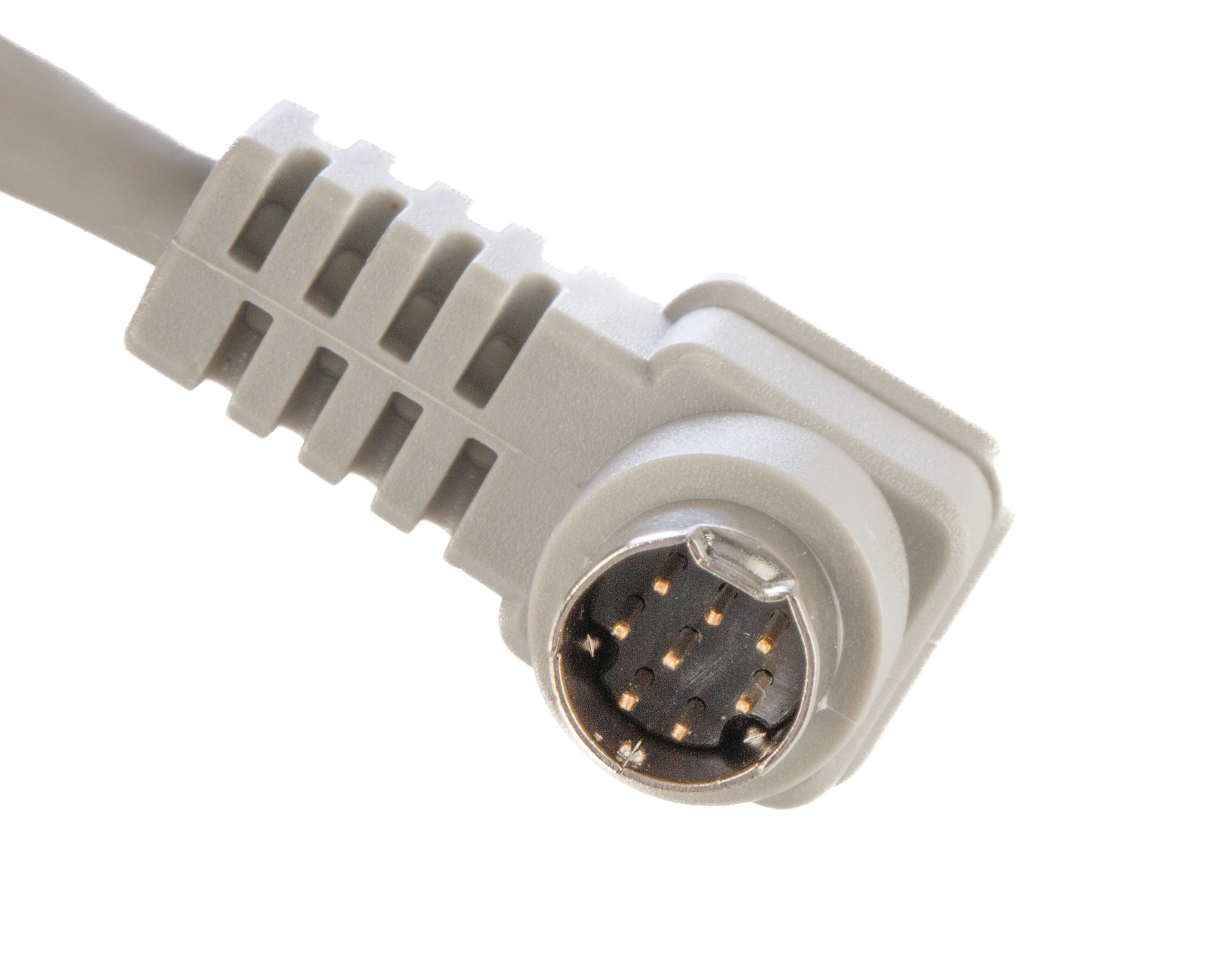

• Interface: 8-Pin Mini DIN to 9-Pin D-Shell (DB9).
• Communication Protocol: Supports DF1 full-duplex serial communication.
• Protection: Foil and braided shielding for superior noise immunity.
• Durability: High-quality thermoplastic sheath for flexibility and wear resistance.

Key Uses:

• Programming and configuring MicroLogix 1000, 1200, and 1500 controllers.
• On-site diagnostics and real-time monitoring of automated systems.
• Connecting PLCs to Advanced Interface Converters (AIC+) or Ethernet interfaces (ENI).
• Firmware updates and system commissioning in industrial automation.

For more information please check the datasheets.
