Schneider Electric Base for use with Advantys ABE7 Telefast Pre-Wired System

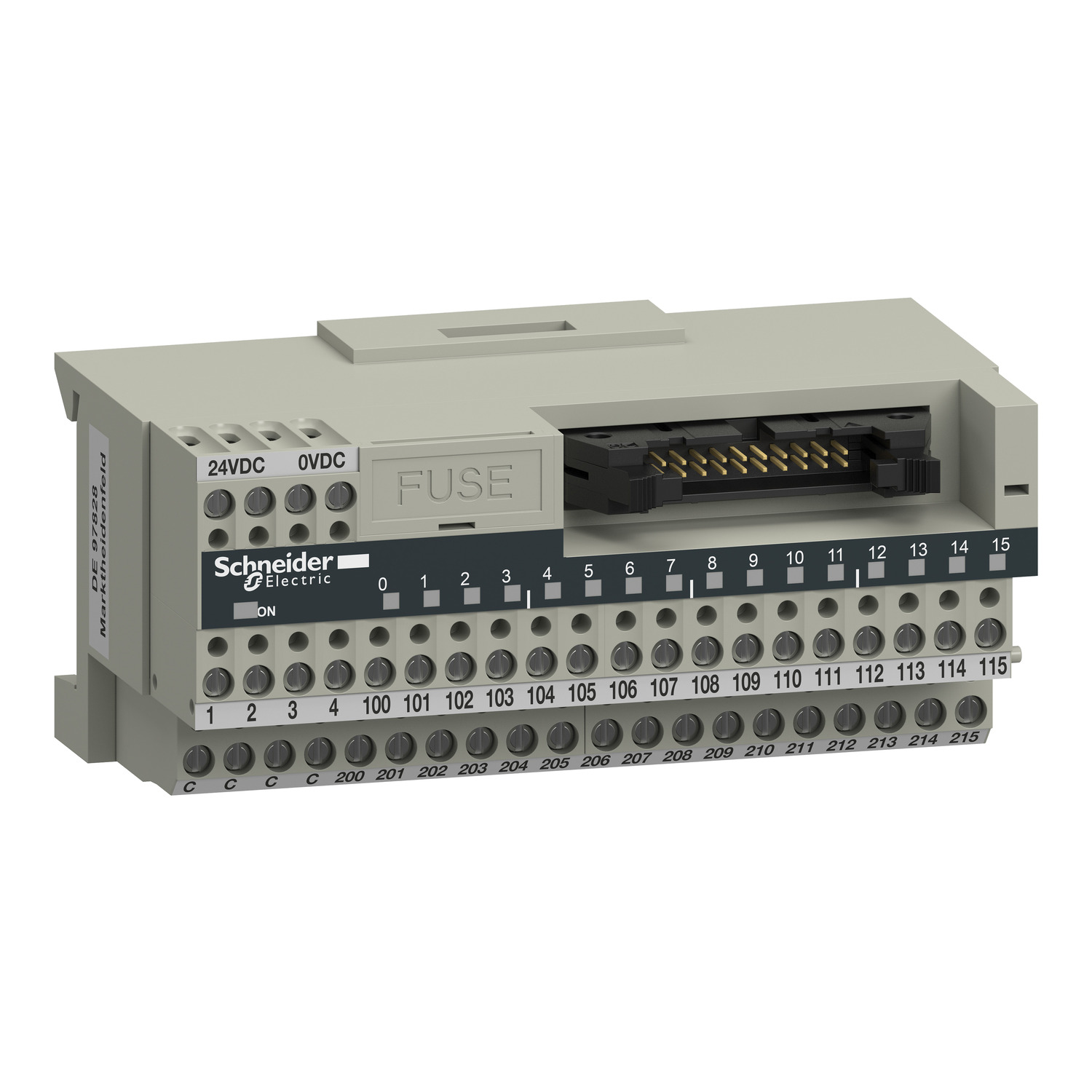

ABE7H16C21 Schneider Electric Base for use with Advantys ABE7 Telefast Pre-Wired System
ABE7H16C21 Schneider Electric Base for use with Advantys ABE7 Telefast Pre-Wired System
Schneider Electric

Product Information

Better World Verification:
Green Premium
Better World Product:
Yes
Accessory Type:
Base
Range:
Modicon ABE7
Supply Voltage:
19 → 30 V
For Use With:
Advantys ABE7 Telefast Pre-Wired System
Maximum Operating Temperature:
+60°C
RoHs Compliant
Checking for live stock

The ABE7H16C21 is a passive connection sub-base from Schneider Electric’s Advantys ABE7 Telefast series, designed to streamline wiring in PLC and control-panel installations. With support for up to 16 channels (inputs or outputs) and LED status indication, this compact sub-base accommodates a 19-30 V DC supply and features screw-clamp terminals compatible with AWG 28–16 wiring.

Unique Features and Benefits of the Schneider Electric Sub-Base for Advantys ABE7 System

  • Supports 16 discrete channels (16 inputs or outputs).
  • LED state display per channel and power status LED.
  • Compatible with 0 V or 24 V polarity distribution.
  • Internal 2 A fast-blow fuse (5 × 20 mm) for PLC-end short-circuit protection.
  • DIN-rail clip mounting or screw-fix plate mount for flexible installation.
  • IP2X protection degree and rated insulation voltage up to 2000 V for safety and ruggedness.

Engineered for Efficient Signal and Control Integration

The ABE7H16C21 sub-base is engineered for high-density control wiring environments where reliability and quick maintenance matter. Its plug-in format integrates with the Advantys Telefast pre-wired system, reducing wiring time and errors. The LED status indicators provide precise channel-level diagnostics, streamlining troubleshooting and reducing downtime.

Wide Application Range

  • Base unit for Advantys ABE7 Telefast pre-wired I/O modules.
  • Discrete input/output wiring for PLC racks and automation systems.
  • Signal distribution and termination in control panels and machine enclosures
  • Retrofits and expansions in industrial machinery.
  • I/O assemblies for OEM machine builds with plug-in wiring convenience.
  • Diagnostic-enabled control setups.

pdf icon
Datasheet ABE7H16C21(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
6085912_Instruction Sheet_en(Technical Reference)
pdf icon
6085912_Catalogue_en(Technical Reference)
