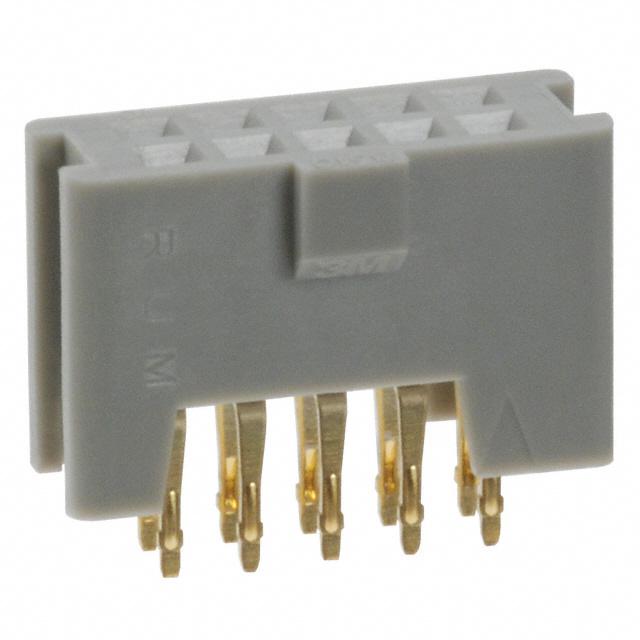

3M 8510-4500PL
Product Information
Number of Contacts:
10
Current Rating:
1A
Mounting Type:
Through Hole
Voltage Rating:
1 kV
Series:
8500
Body Orientation:
Straight
Termination Method:
Solder
Number of Rows:
2
Contact Plating:
Nickel
Pitch:
2.54mm
Contact Material:
Copper
Type:
Socket Strip
Series Number:
8500
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
10
Insulation Height:
0.425" (10.80mm)
Voltage Rating:
1000V
REACH Status:
REACH Unaffected
edacadModel:
8510-4500PL Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1306247
Insulation Color:
Gray
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
12.0µin (0.30µm)
Fastening Type:
Push-Pull
Termination:
Kinked Pin, Solder
standardLeadTime:
28 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
0.110" (2.79mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Polarizing Key
Mounting Type:
Through Hole
Series:
8500
Contact Type:
Female Socket
Contact Material:
Copper Alloy
Base Product Number:
8510
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 8510-4500PL on website for other similar products.
We accept all major payment methods for all products including ET11353728. Please check your shopping cart at the time of order.
You can order 3M brand products with 8510-4500PL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M 8510-4500PL. You can also check on our website or by contacting our customer support team for further order details on 3M 8510-4500PL.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11353728 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11353728.
Yes. We ship 8510-4500PL Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is 8510-4500PL. The product contains 10 contacts. The product has a current rating of 1a. The product is available in through hole configuration. Moreover, the product has a nominal 1 kv voltage rating. The product 8500, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It comes in 2 of rows. The high-quality nickel is used as contact plating material. Moreover, the product is 2.54mm. The product is made from sturdy copper materials. It comes in socket strip configuration. It carries [Serial Number] serial number. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 10. 0.425" (10.80mm) of insulation height. Moreover, the product has a nominal 1000v voltage rating. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. In addition, gray is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 12.0µin (0.30µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 28 weeks standard lead time. Additionally, the product's output is 1a. 0.110" (2.79mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include polarizing key. It has typical contact type of female socket. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 8510, a base product number of the product. The product is designated with the ear99 code number.
