Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo

Manufacturer : Samtec
Manufacturer Part No : SSQ-103-01-G-D
Enrgtech Part No : ET10003239
Product Range : PolySwitch RXEF Series

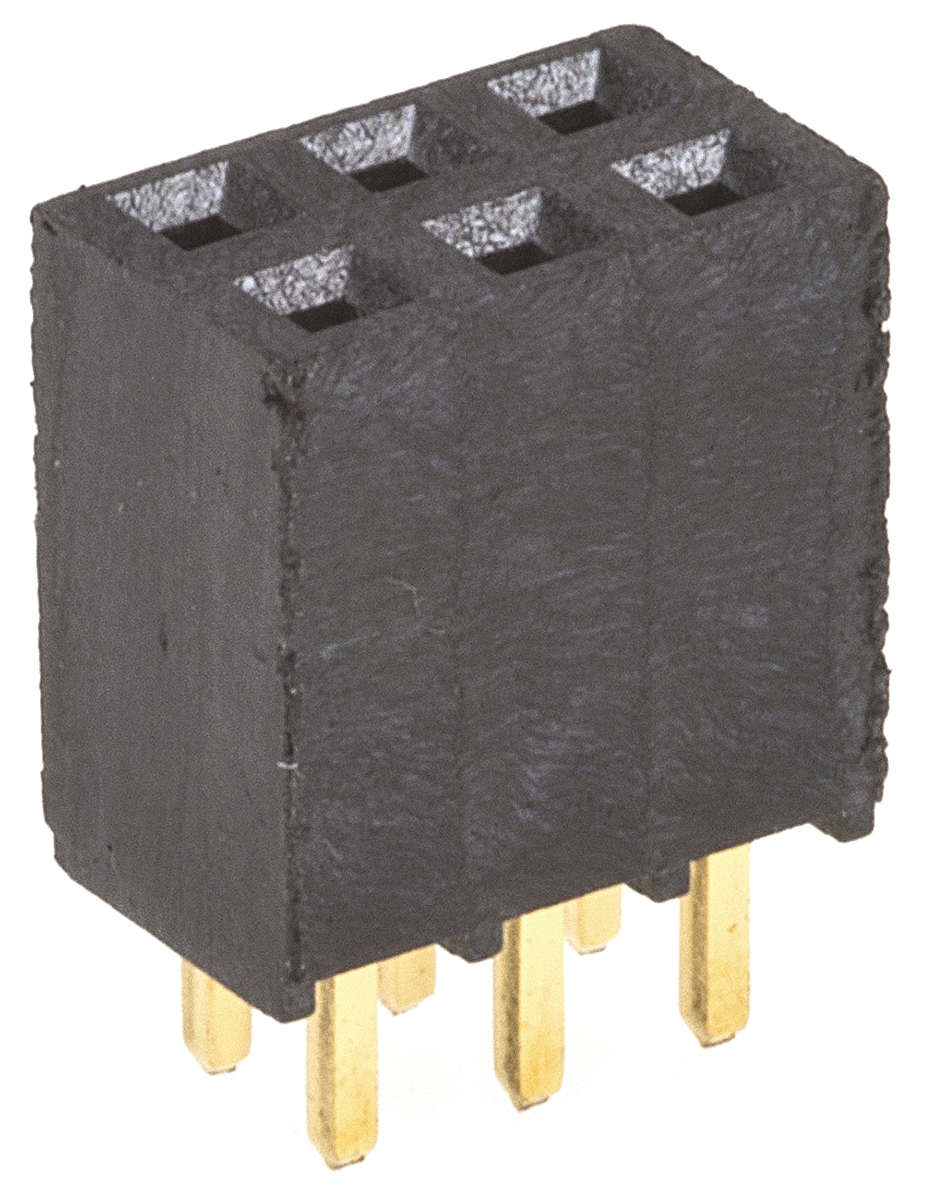

Samtec SSQ Series 2.54mm Pitch 6 Way 2 Row Straight PCB Socket, Through Hole, Solder Termination

Through Hole 2.54mm Square Post Socket Strips with Square Tail - SSQ Series SSQ series PCB through hole board-to-board square post, square tailed socket strips with a 2.54mm pitch, a black, liquid crystal polymer insulator and phosphor bronze Tiger Buy contacts with 0.51μm gold plating on the contact and gold flash on the tail. These PCB board to board 2.54mm through hole square post socket strips are available in a variety of configurations including single and double row, straight or right angle body orientation and an option of post lengths. The operating temperature range for these SSQ series PCB through hole sockets is -55 to 125°C. SSQ PCB sockets with part number TSW-xxx-01-x-x have a tail length of 2.64mm. SSQ PCB sockets with part number TSW-xxx-02-x-x have a tail length of 4.93mm. Note These SSQ series PCB through hole board-to-board square post sockets mate with the following: TSW series through hole 2.54mm square post headers - see stock number 767-0849 typically. TSM series SMT 2.54mm square post headers - see stock number 765-6458 typically. 2.54mm Board to Board and Wire to Board - Samtec

Product Information

Current Rating : 7.6A
Mounting Type : Through Hole
Voltage Rating : 550 V
Series : SSQ
Body Orientation : Straight
Termination Method : Solder
Number of Rows : 2
Pitch : 2.54mm
Number of Contacts : 6
Type : Board to Board
rohs : RoHS Certificate of Compliance
Contact Material : Bronze

Technical Documents

  • Through Hole 2.54mm Square Post Sockets - SSQ Series - Footprint (Technical Reference)

Availability:
193
in stock
Check now

Rate:
  • 1-24
    +
    £ 1.870
  • 25-99
    +
    £ 1.057
  • 100-499
    +
    £ 0.898

Qty:
