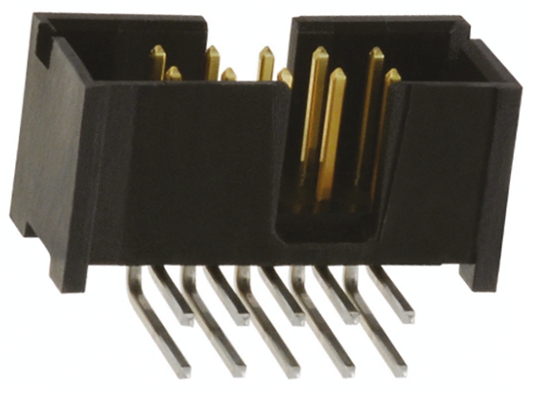

Molex C-GRID 70247, 2.54mm Pitch, 10 Way, 2 Row, Right Angle PCB Header, Through Hole

70247-1051 Molex C-GRID 70247, 2.54mm Pitch, 10 Way, 2 Row, Right Angle PCB Header, Through Hole
Molex

Product Information

Shrouded/Unshrouded:
Shrouded
Number of Contacts:
10
Current Rating:
2.5A
Mounting Type:
Through Hole
Voltage Rating:
250.0 V
Series:
C-Grid
Body Orientation:
Right Angle
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Gold
Pitch:
2.54mm
Contact Material:
Phosphor Bronze
Series Number:
70247
HTSUS:
8536.69.4040
Package:
Tray
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
Moisture Sensitivity Level (MSL):
Vendor Undefined
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is C-GRID 70247 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header Through Hole manufactured by Molex. The manufacturer part number is 70247-1051. It is supplied as shrouded. The product contains 10 contacts. The product has a current rating of 2.5a. The product is available in through hole configuration. Moreover, the product has a nominal 250.0 v voltage rating. The product c-grid, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. It allows wire to board connector system. It comes in 2 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 2.54mm. The product is made from sturdy phosphor bronze materials. It carries [Serial Number] serial number. It is assigned with possible HTSUS value of 8536.69.4040. It is shipped in tray package . The product is rohs non-compliant. In addition, it is reach info available upon request. Its typical moisture sensitivity level is vendor undefined. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
C-Grid III Shrouded Header Right Angle - Drawing(Technical Reference)
pdf icon
Line Drawing(Technical Reference)
pdf icon
Datasheet(Datasheets)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.


FAQs

Yes. You can also search 70247-1051 on website for other similar products.
We accept all major payment methods for all products including ET13914370. Please check your shopping cart at the time of order.
You can order Molex brand products with 70247-1051 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Headers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex C-GRID 70247, 2.54mm Pitch, 10 Way, 2 Row, Right Angle PCB Header, Through Hole. You can also check on our website or by contacting our customer support team for further order details on Molex C-GRID 70247, 2.54mm Pitch, 10 Way, 2 Row, Right Angle PCB Header, Through Hole.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13914370 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13914370.
Yes. We ship 70247-1051 Internationally to many countries around the world.
